BRAND NEW *OEM QUALITY* THROTTLE POSITION SENSOR TO SUIT HOLDEN

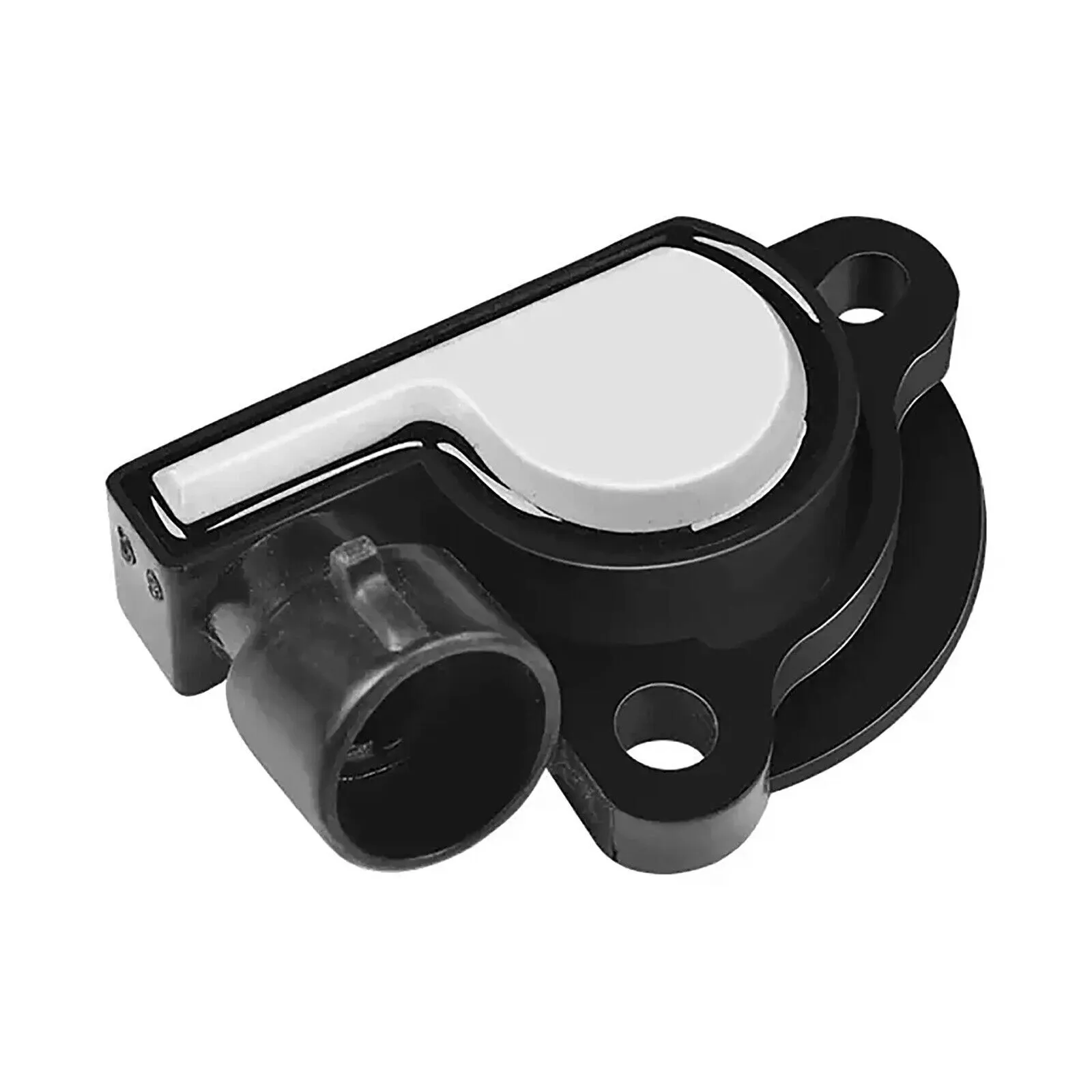

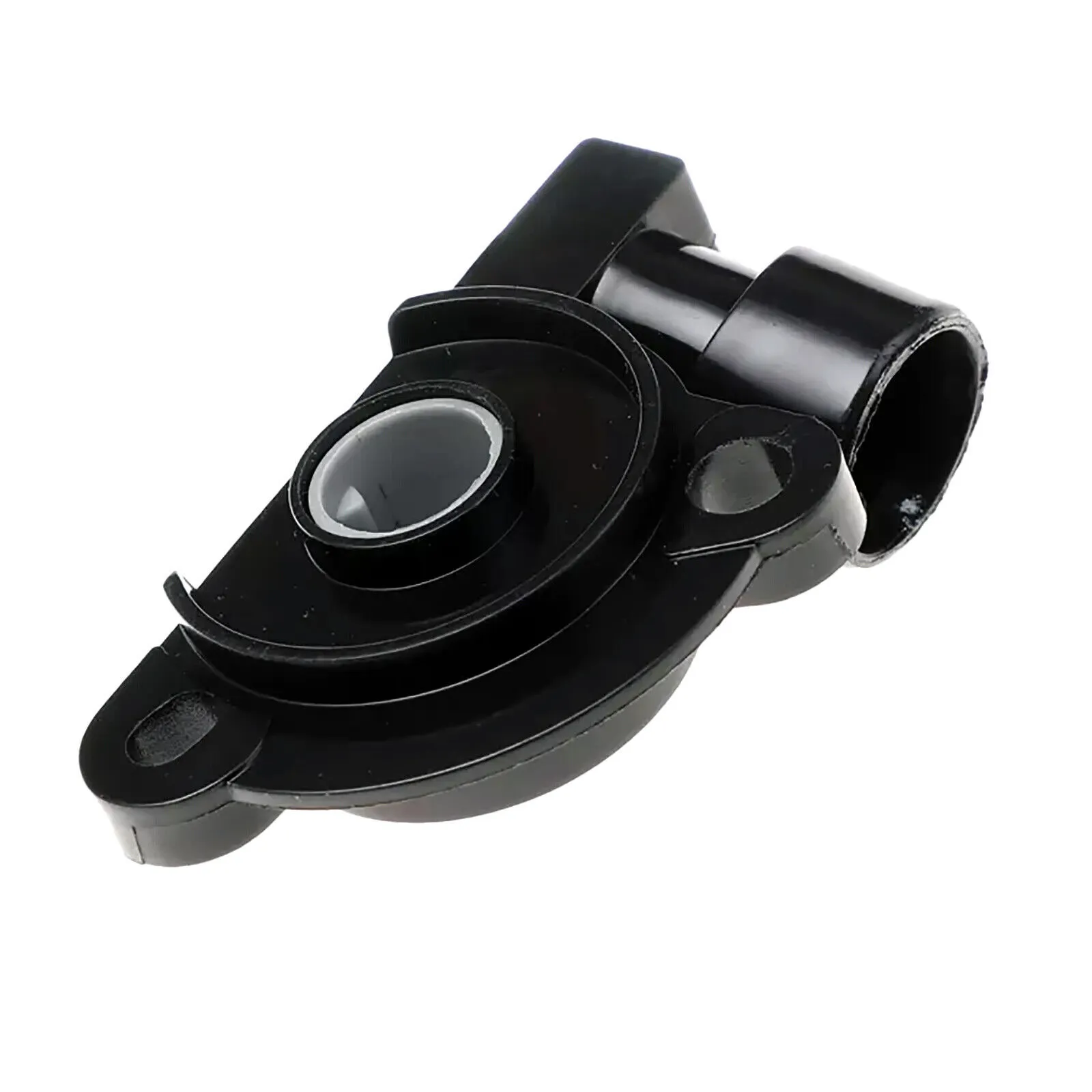

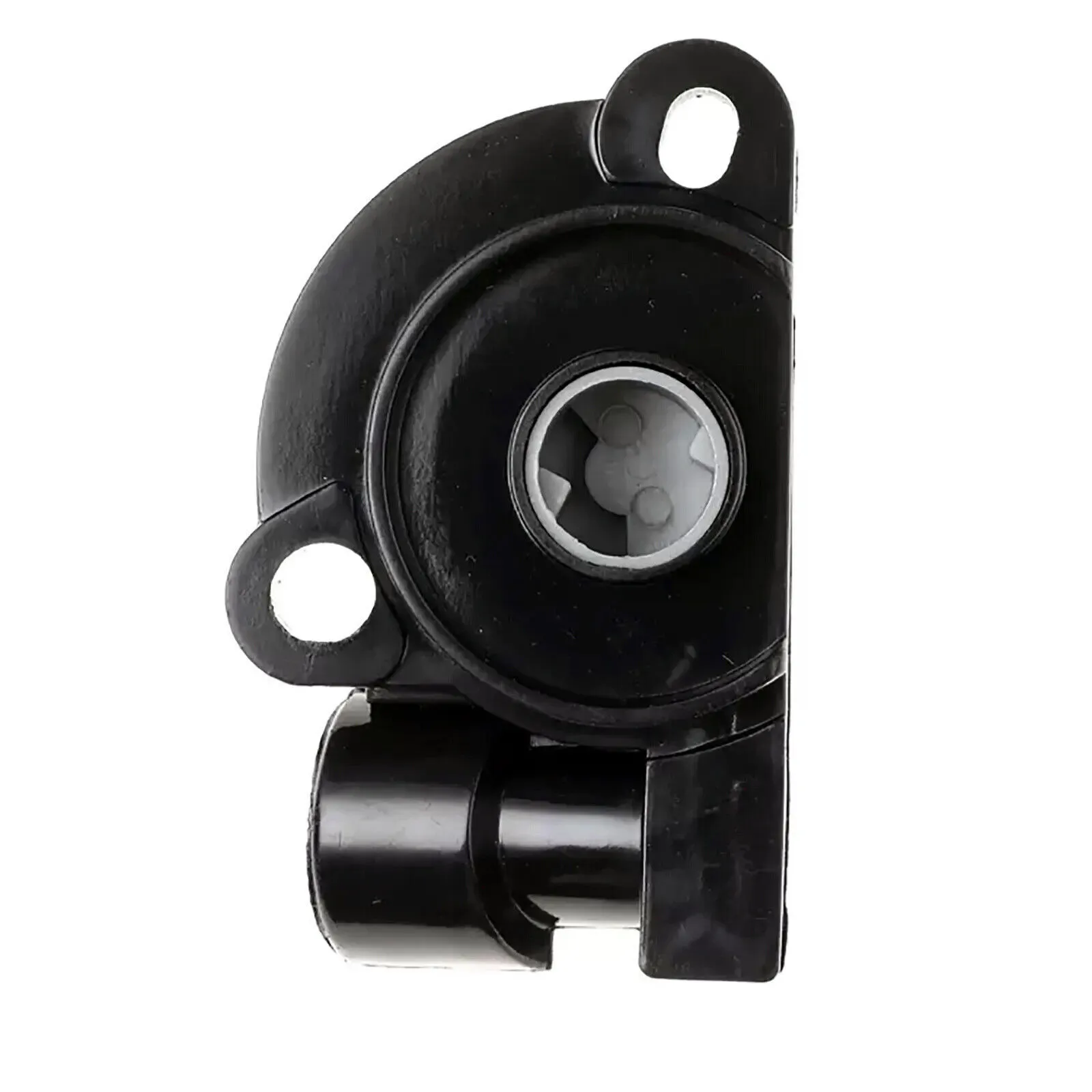

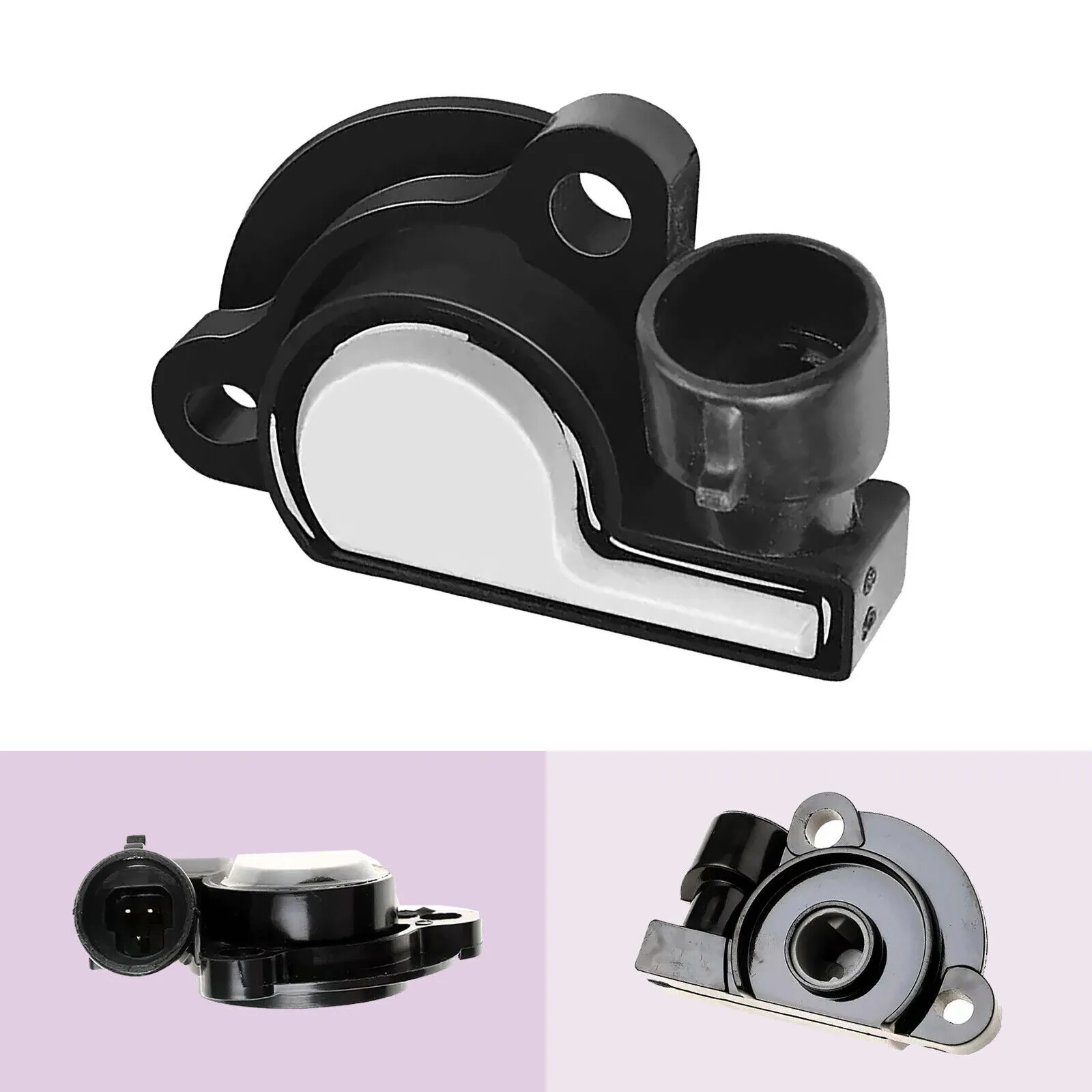

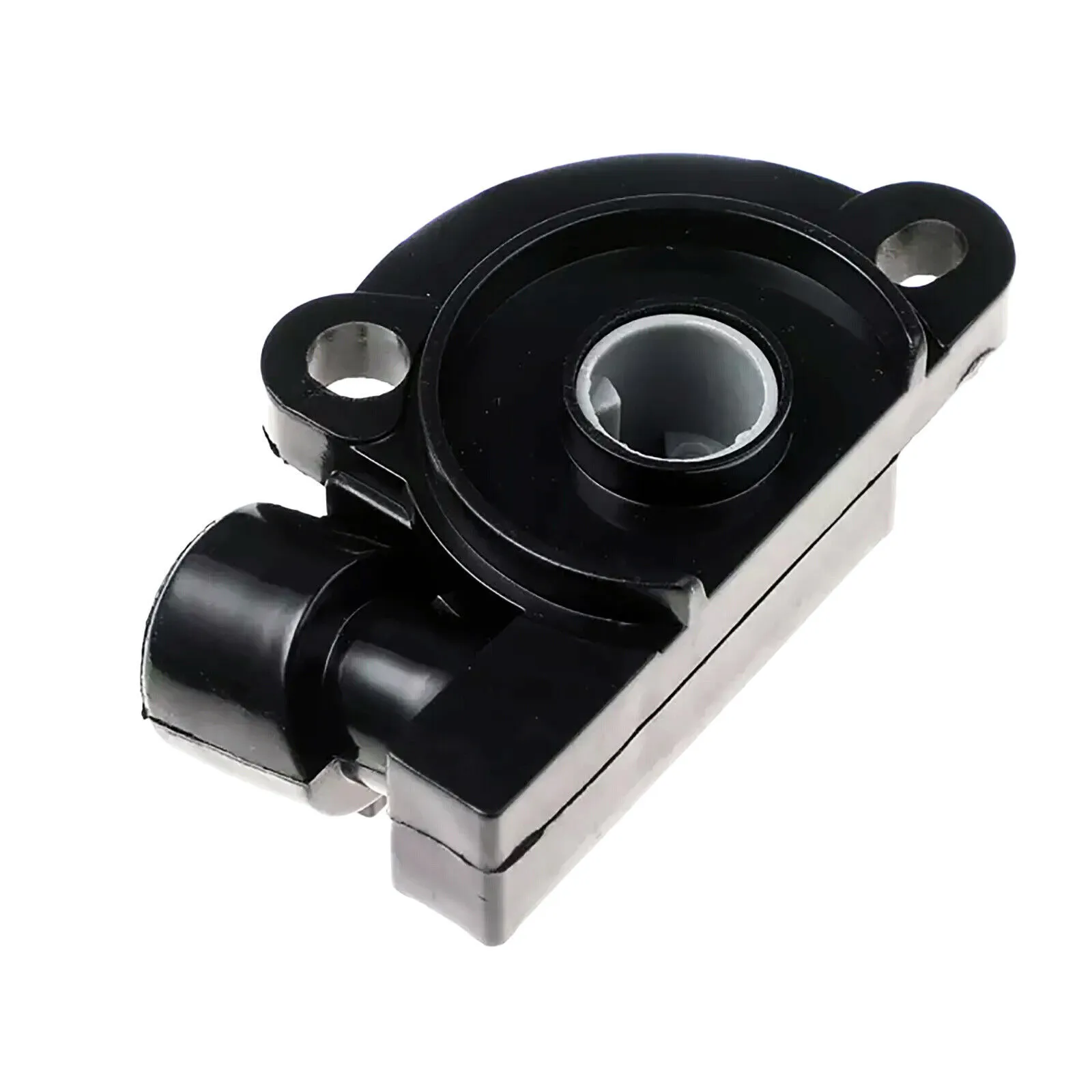

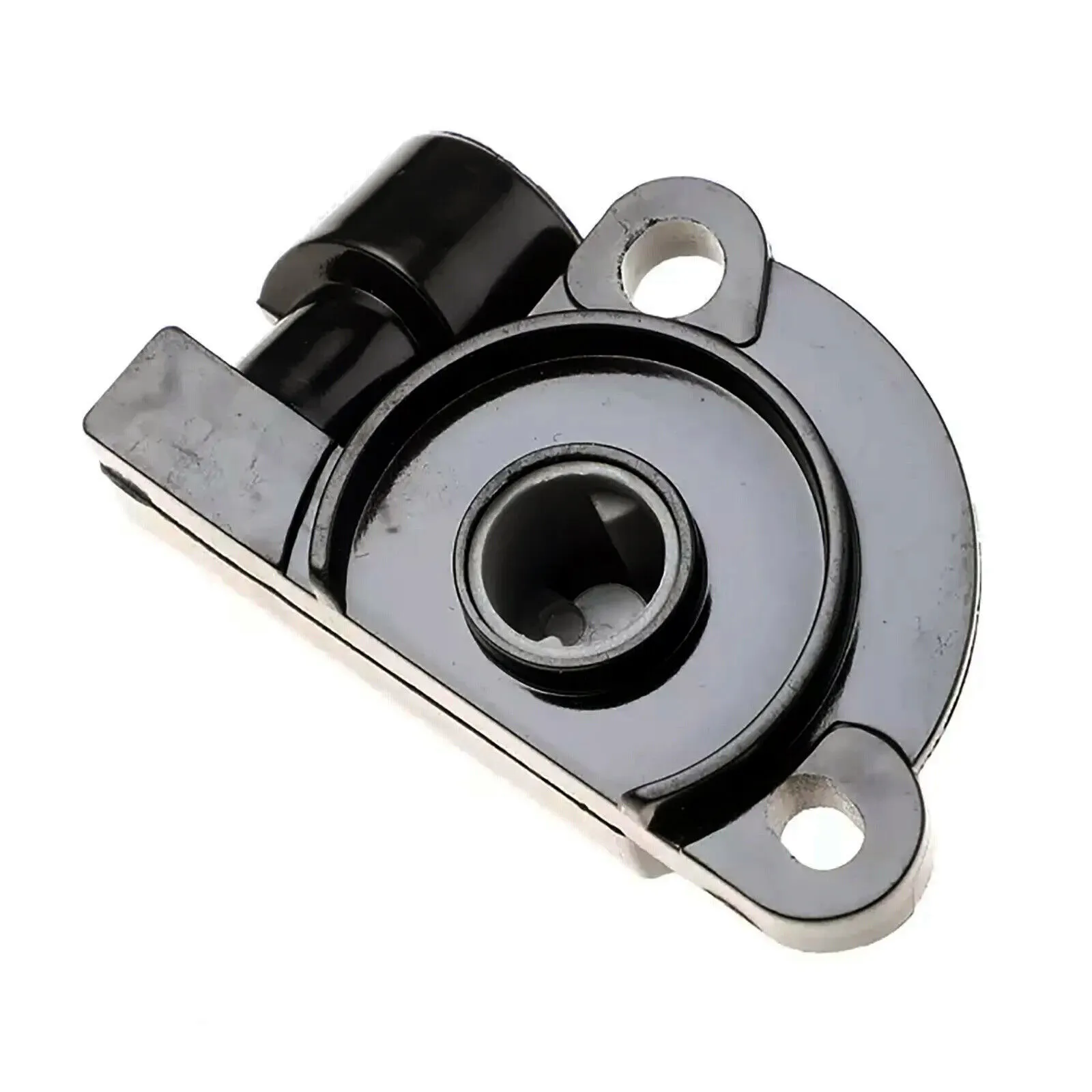

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

HOLDEN 5.0L V8 LB9 304 cu.in Engines

[1988-2000] COMMODORE VG VN VP VR VS VT1
[1990-1998] STATESMAN CAPRICE VQ VR VS
[1990-1998] HSV SENATOR MALOO CLUBSPORT VN VP VR VS VT

OEM# 17087654, 17106682

• for OE No: 17106682
• Rotation Direction: Anticlockwise rotation

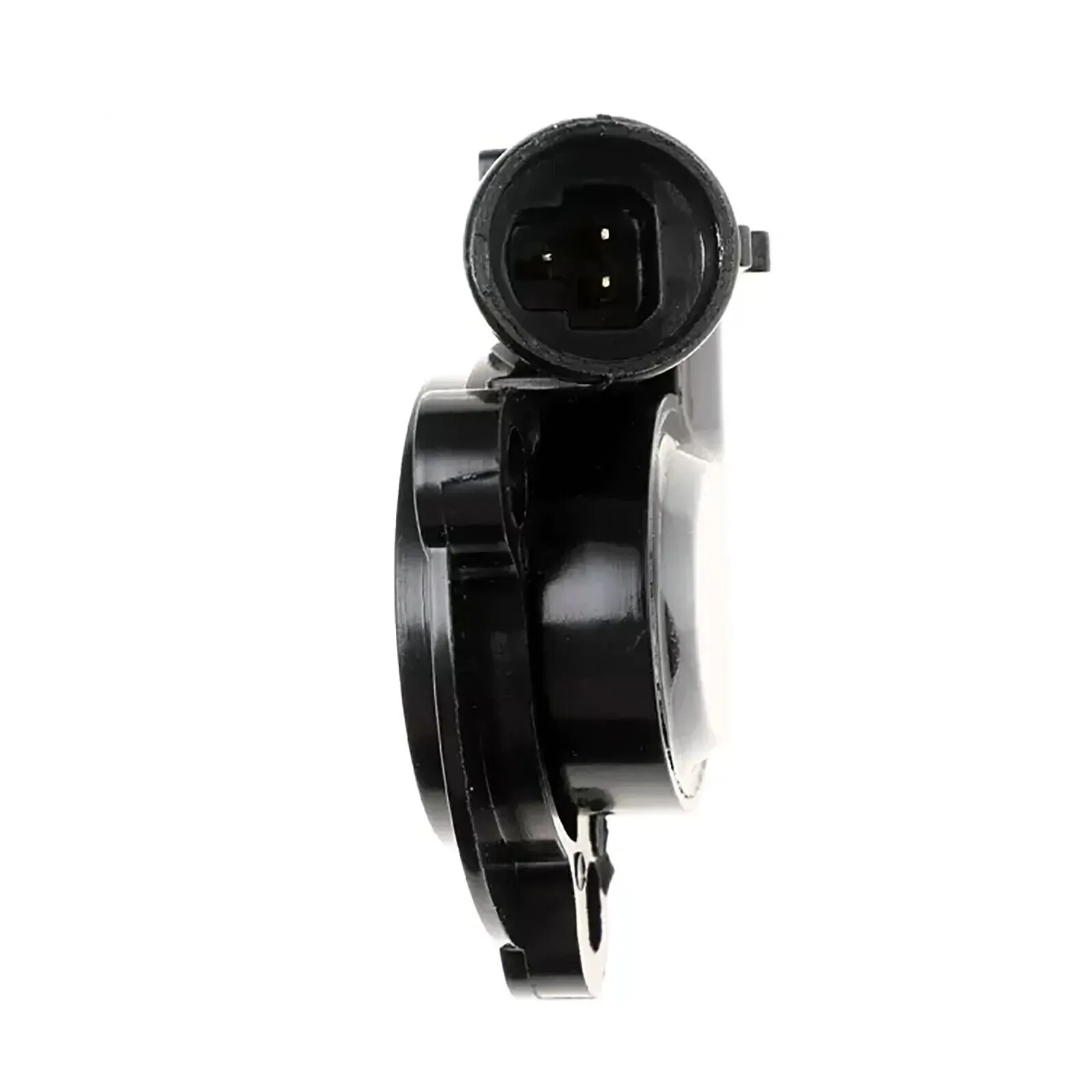

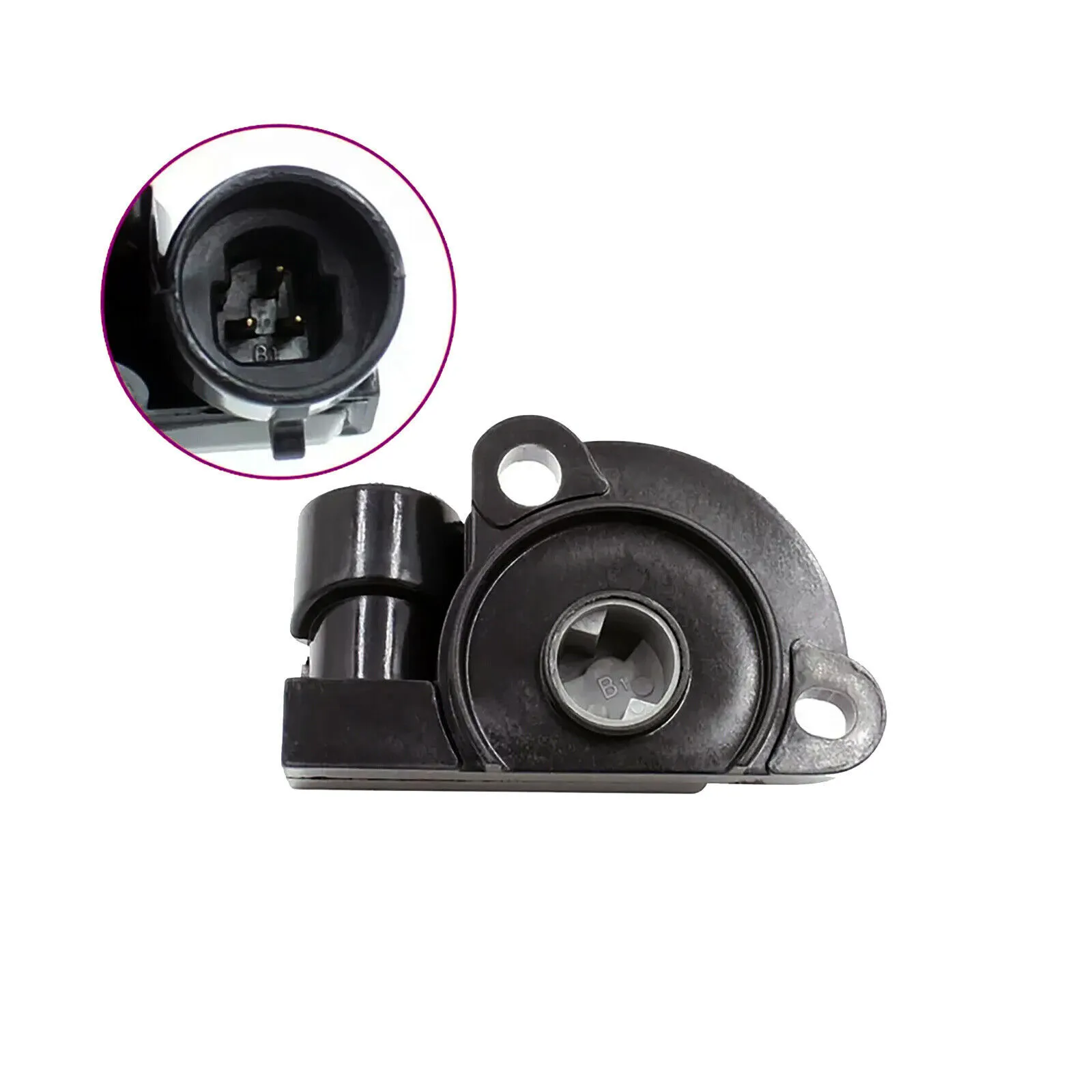

• Number of pins: 3 -pin connector
• Supplementary Article Info: without cable
• Connector Shape: round
• Number of mounting bores: 2

Features:

• High Quality
• OEM Fit and Design
• Easy install
• Simple operation
• AU Seller-Fast and Free Shipping

Package Includes:

1* THROTTLE POSITION SENSOR. (3 PIN PLUG).Anticlockwise rotation A throttle position sensor (TPS) is located on the throttle body to monitor the air intake of an engine. It detects the position of the throttle body butterfly, plate, or spindle, and sends it to the ECU. The ECU utilizes this input to decide the fuel requirement and spark timing to ensure safe and smooth engine performance.

ABOUT YOUR VEHICLE’S THROTTLE POSITION SENSOR

What does a Throttle Position Sensor do?
The Throttle Position sensor moves with the throttle and sends a voltage signal to the computer indicating throttle angle and speed of movement data. The computer uses this data to measure engine load, adjust timing, fuel delivery, EGR, converter clutch operation, and transparent flood mode.

Where is the Throttle Position Sensor located?
The TPS is mounted on the throttle body.

Will a malfunctioning TPS illuminate the check engine light or affect vehicle operation?
A failing TPS can illuminate the MIL, and cause the engine to hesitate upon acceleration or experience idling problems.

What are the common causes of failure?
Typically these sensors fail due to the constant contact of the movable wiper arm over the sensor element and the exposure to the high underhood heat.

How to determine if the TPS is malfunctioning?
Look for smooth voltage changes on the signal wire as the throttle plate opens and closes. The diagnostic codes range from P0120 through P0125.
