Coolant Temp Sensor for Kia Sorrento Magentis Optima Stinger Rondo Grand Carniva
$53.51
BRAND NEW *OEM QUALITY* ENGINE COOLANT / TEMPERATURE GAUGE SENSOR TO SUIT MITSUBISHI

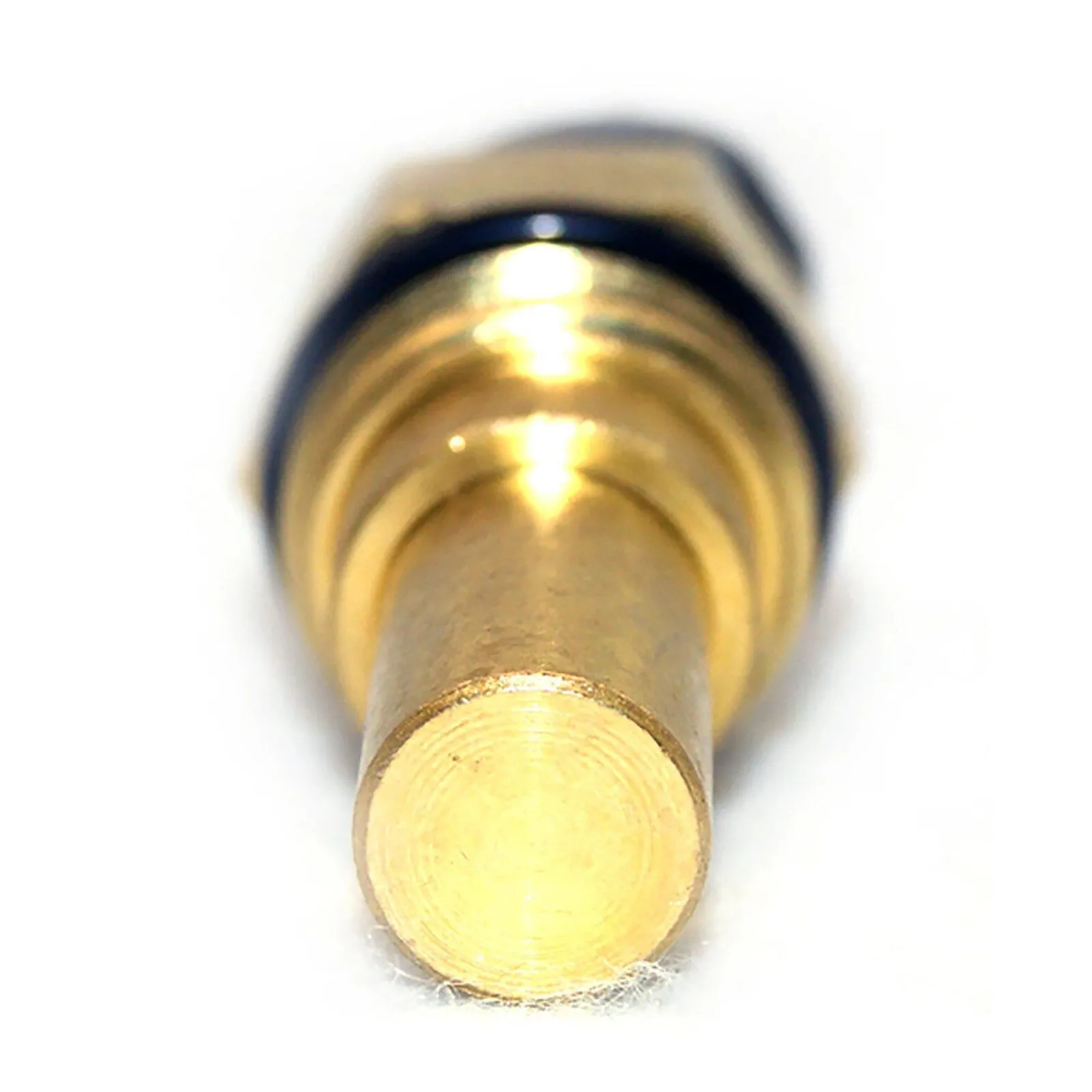

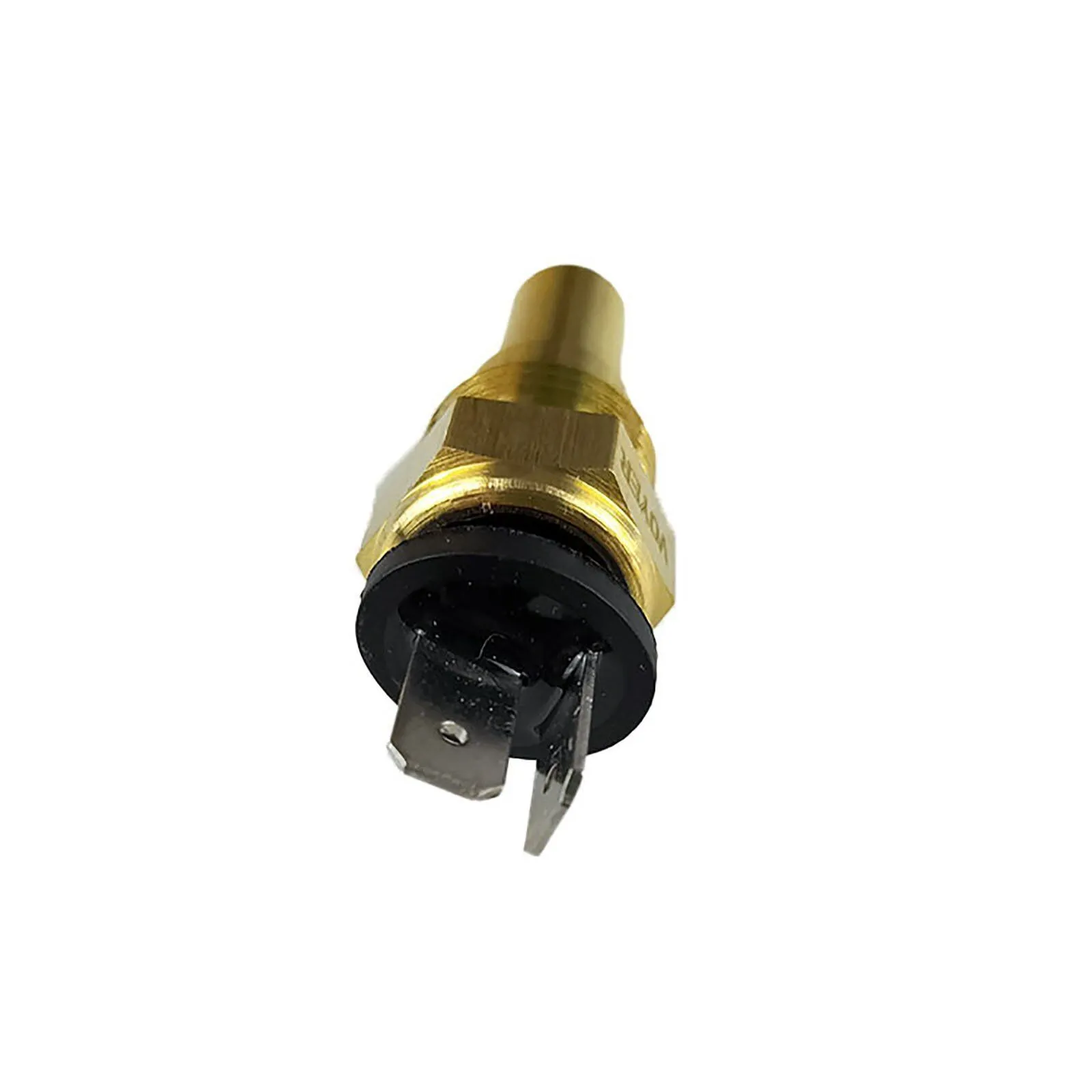

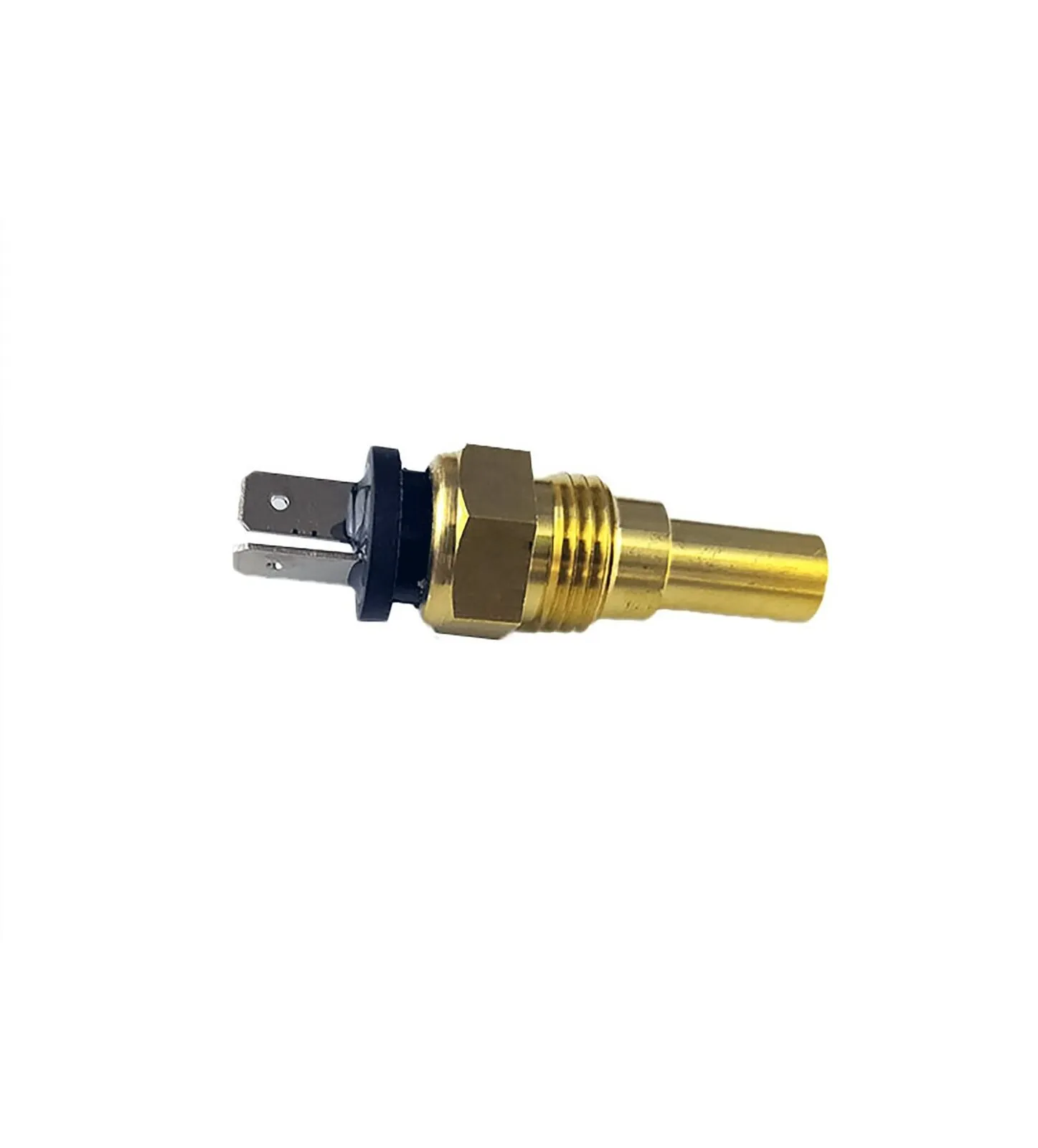

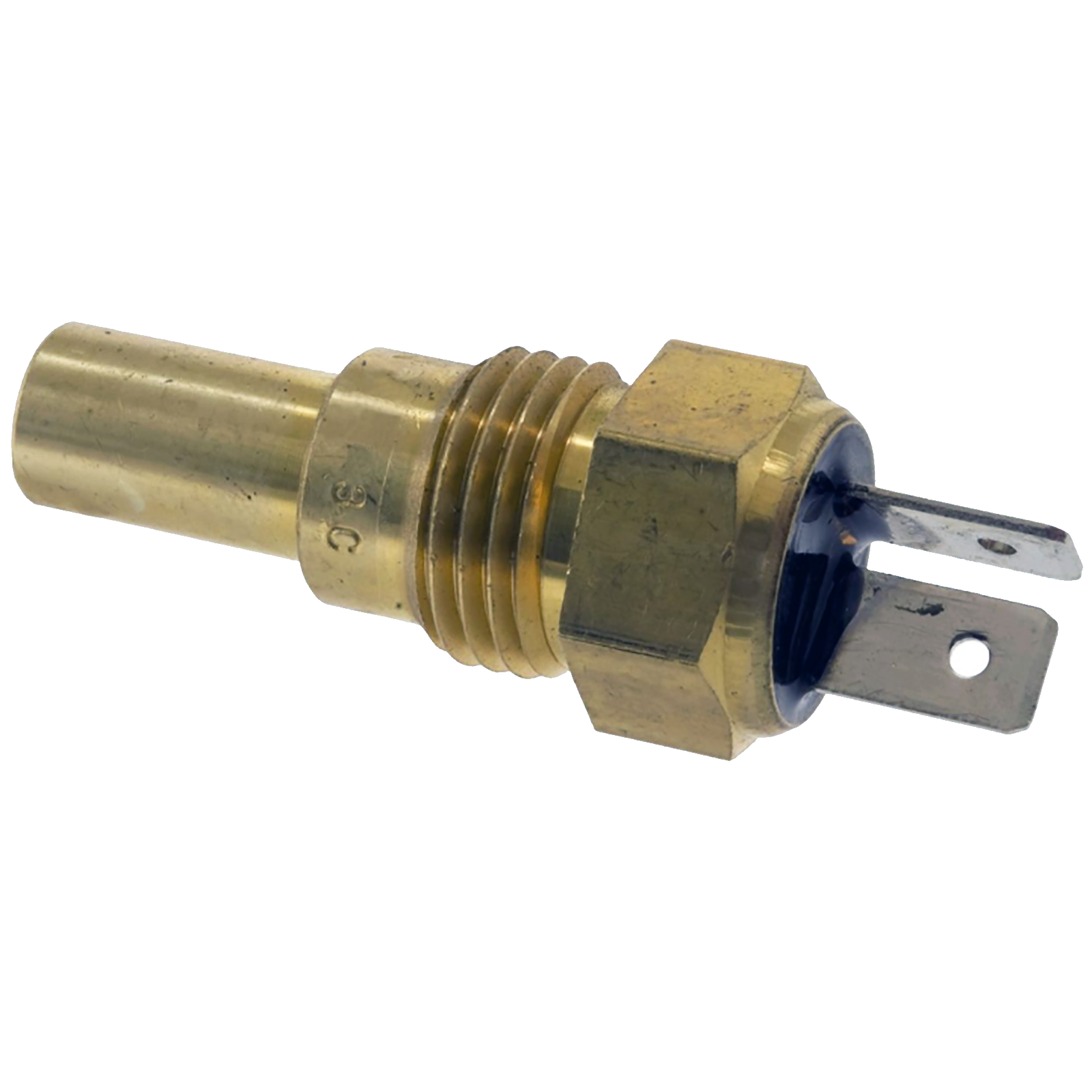

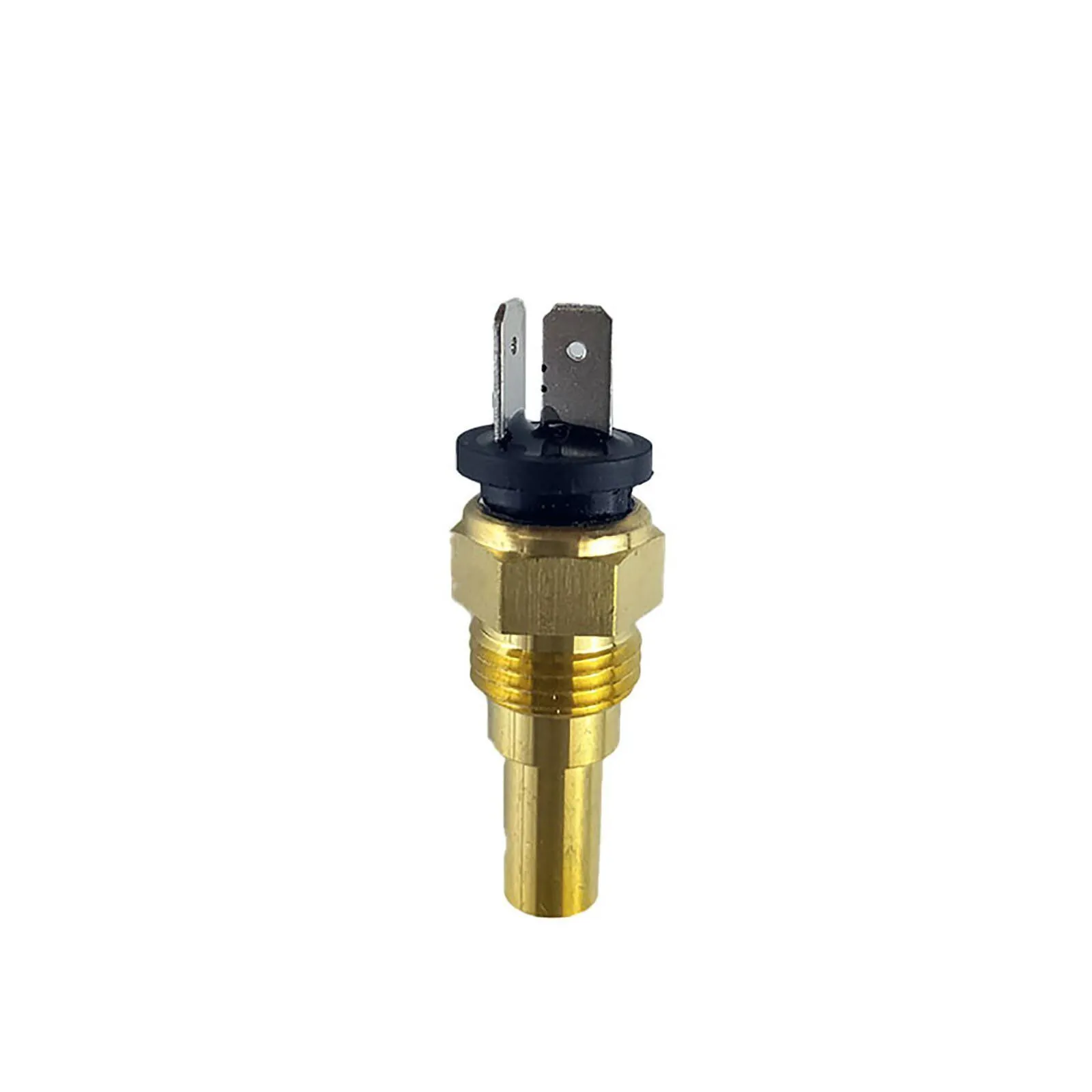

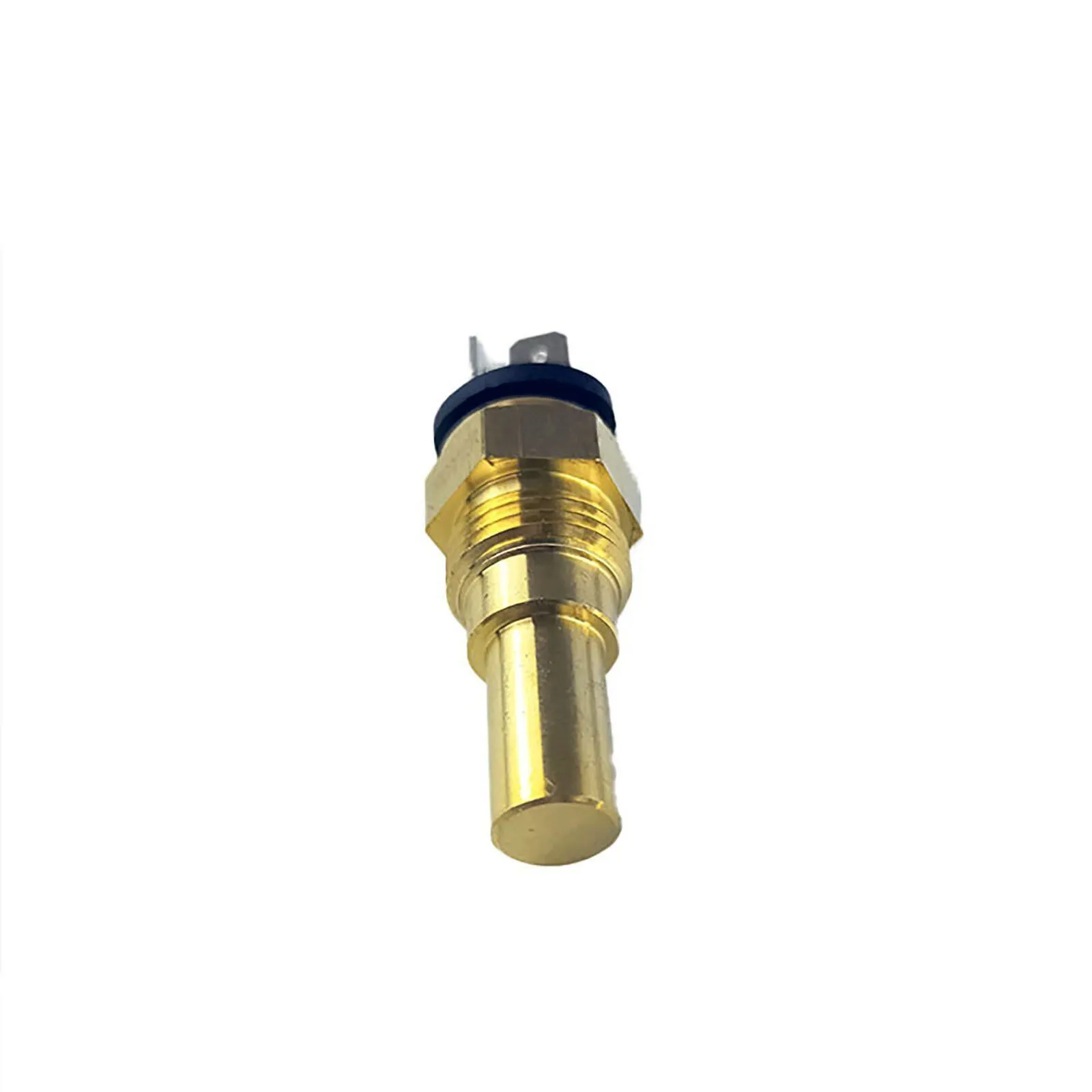

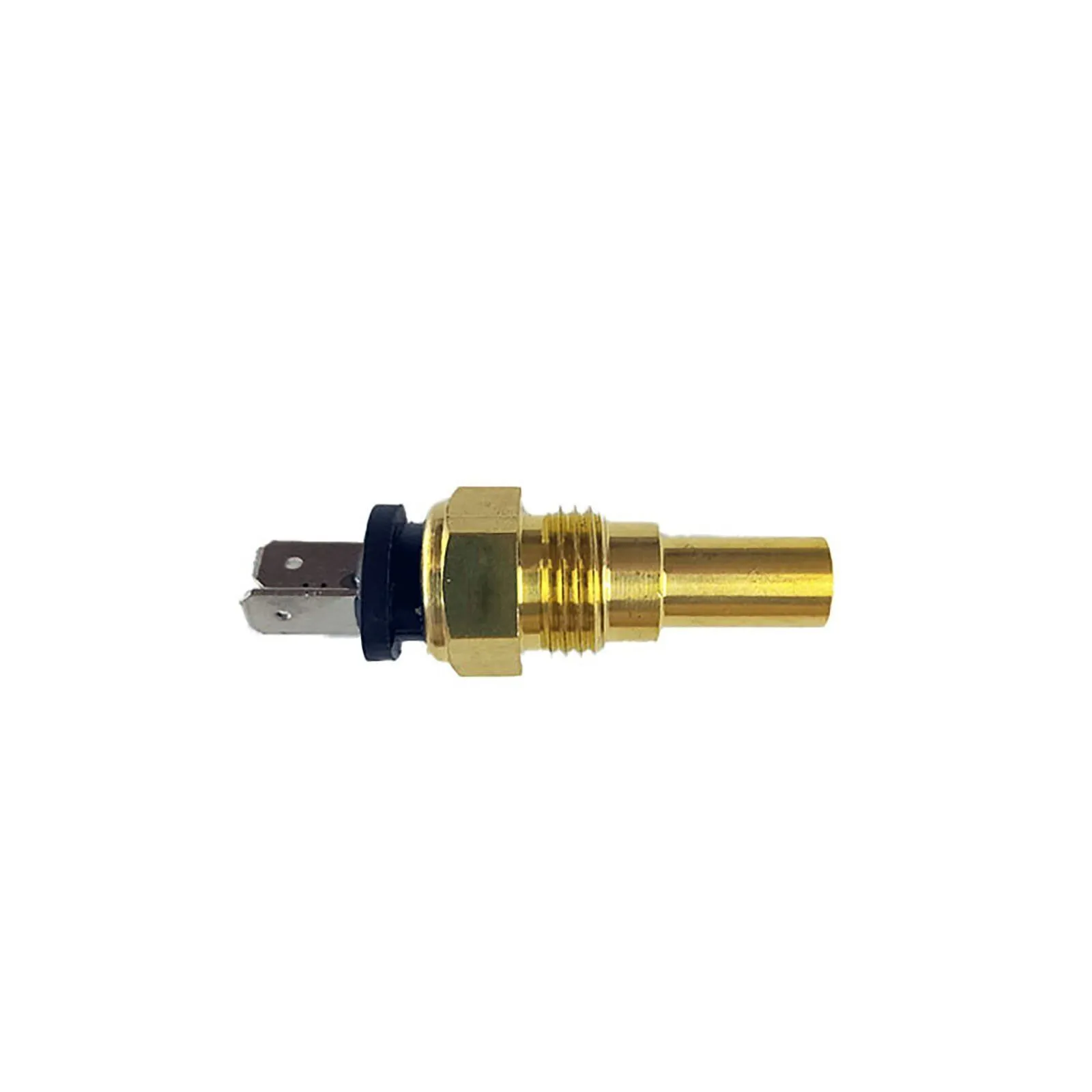

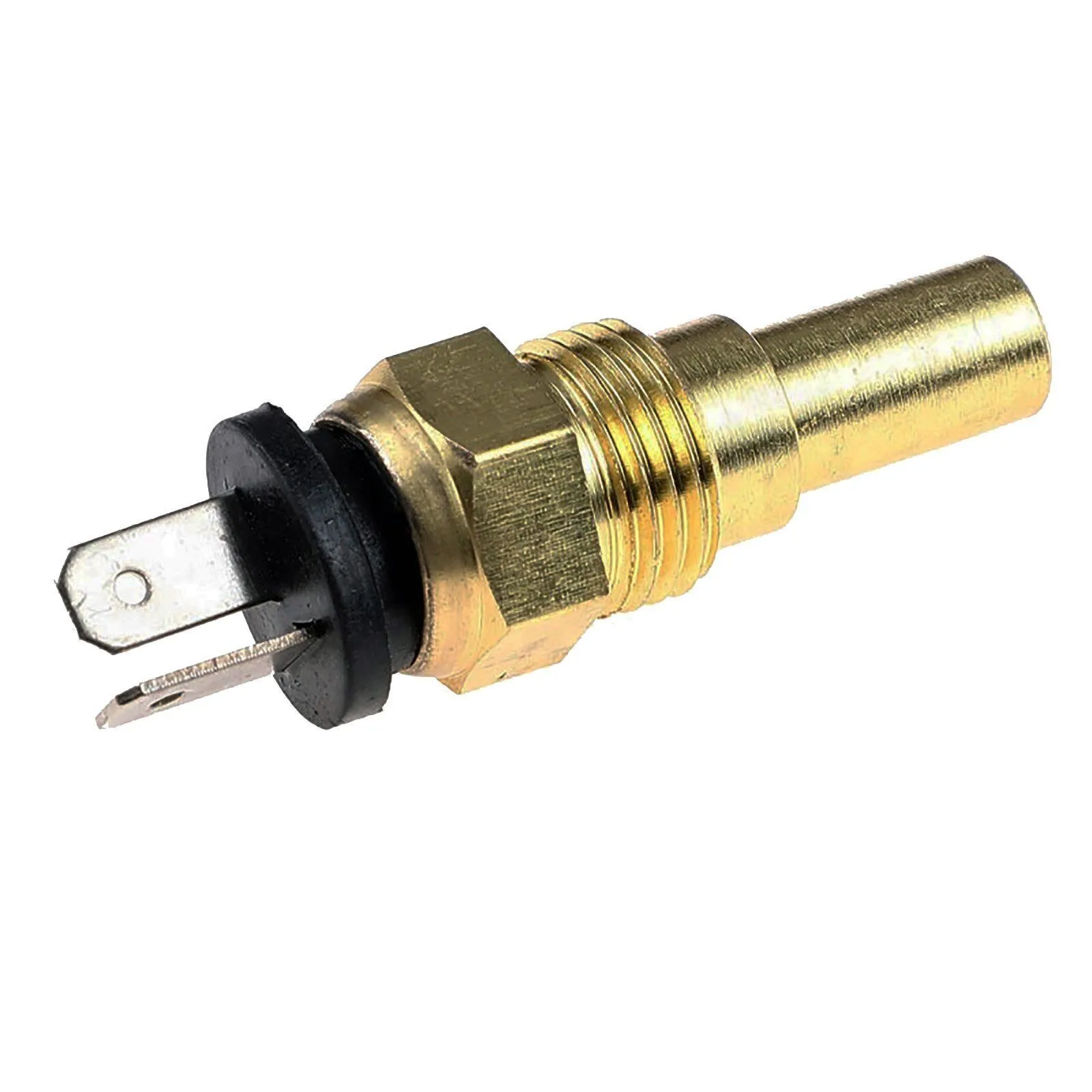

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND
CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

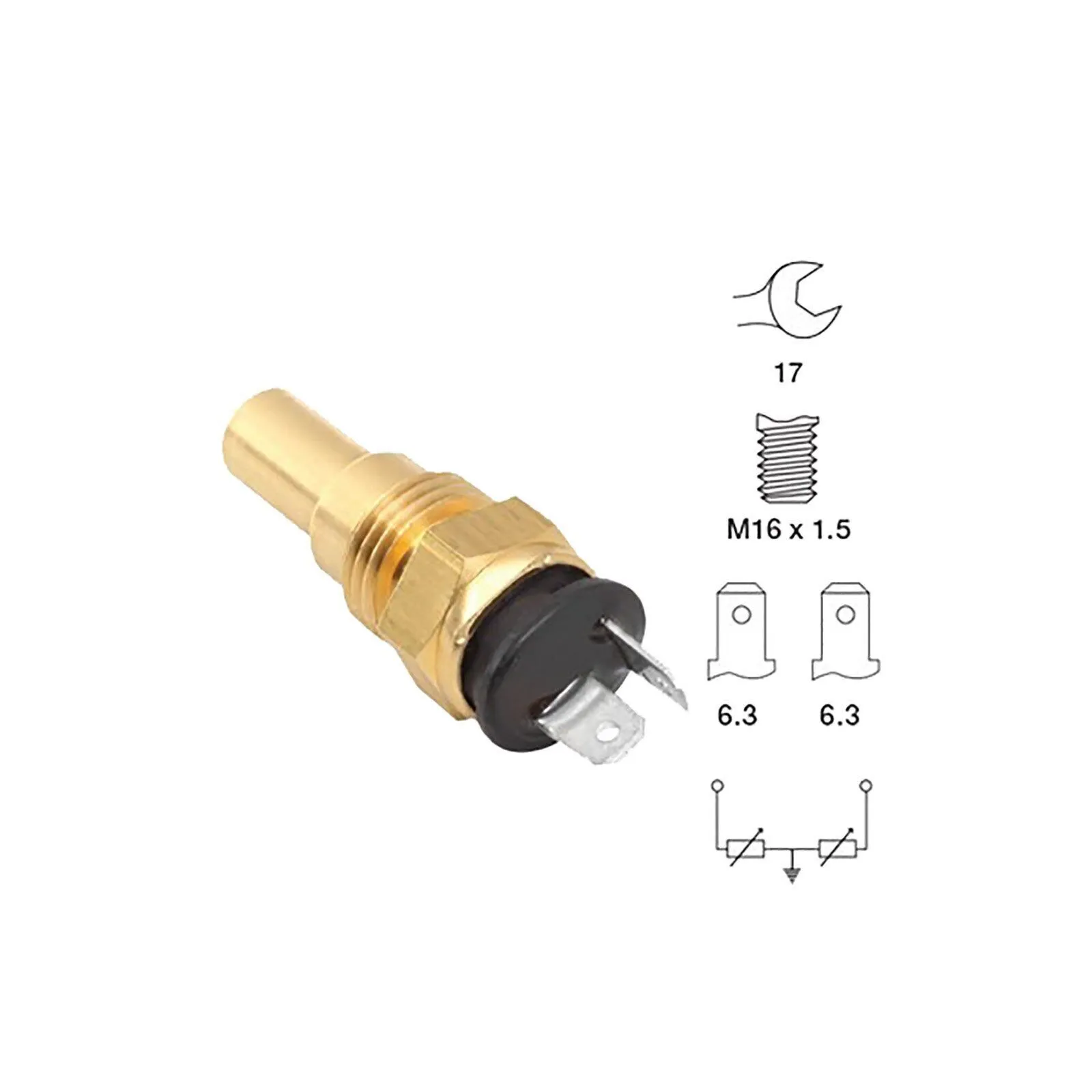

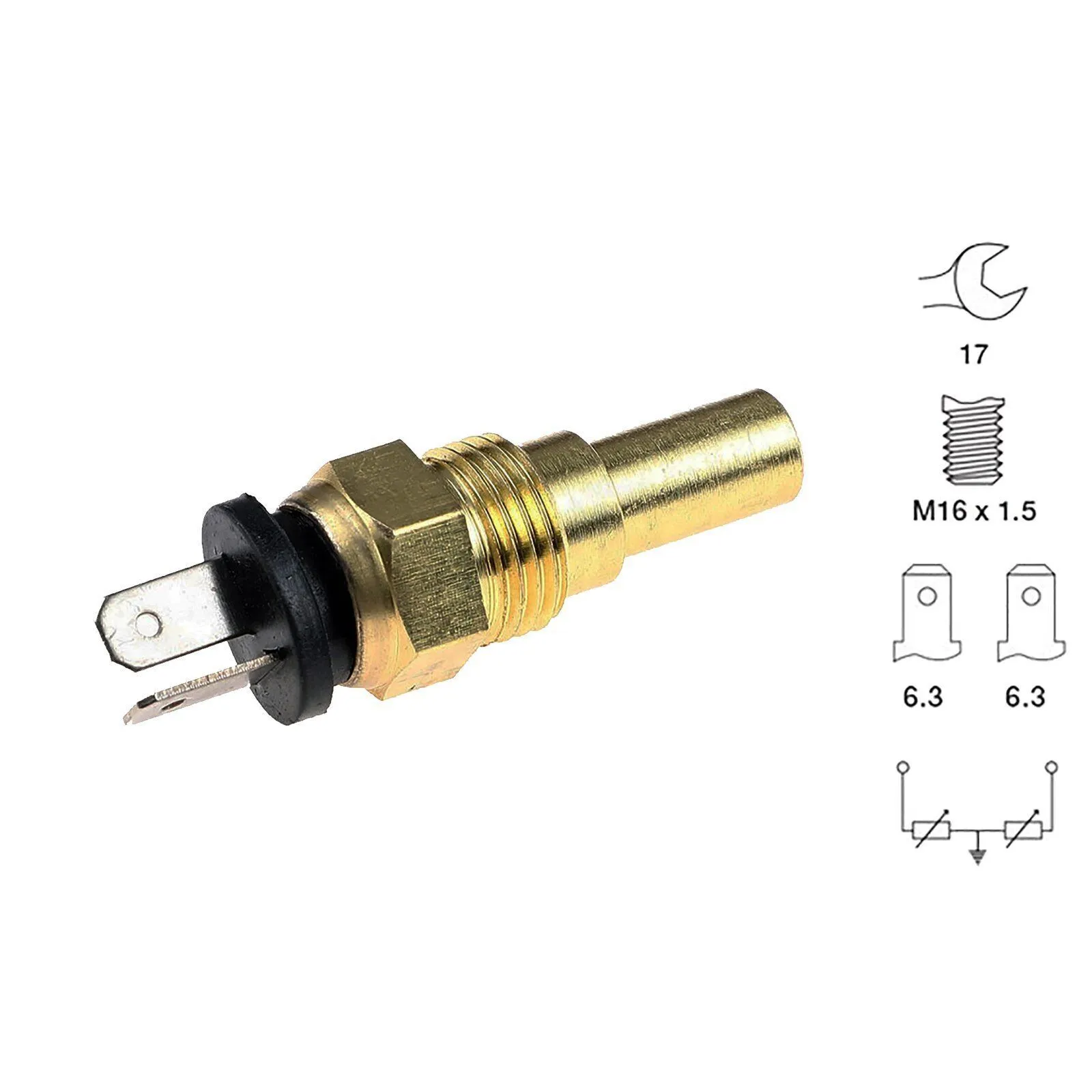

Thread Size | M16x1,5 |
Spanner size | 17 |

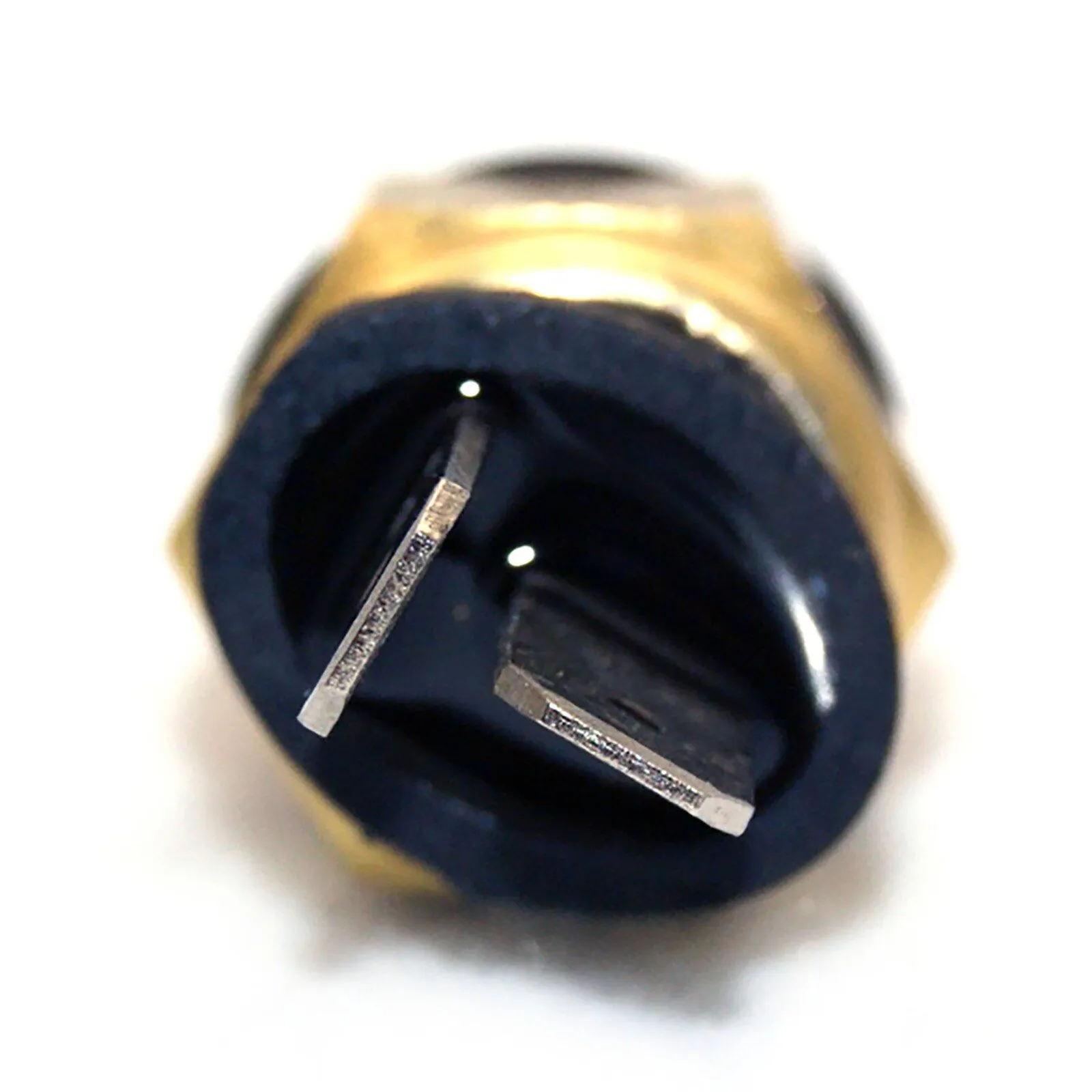

Number of Poles | 2 -pin connector |
Fitting Depth | 31 mm |
1* Temperature Sensor (2 PIN PLUG). Thread Size M16x1,5 Spanner size 17 The engine coolant temperature sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing. Common signs of a bad or failing coolant temperature sensor include poor fuel economy, black smoke coming from the engine, engine overheating, and the Check Engine Light turning on.
VEHICLE MODEL | ENGINE | LITRE | CYL | YEAR | TYPE |
MITSUBISHI DELICA PD8W (GREY IMPORT) SPACE GEAR | 4M40 | 2.8L | 4cyl | [05/94 – 12/04] | Auto |
MITSUBISHI DELICA PE8W (GREY IMPORT) SPACE GEAR | 4M40 | 2.8L | 4cyl | [05/94 – 12/04] | Auto |
MITSUBISHI DELICA PF8W (GREY IMPORT) SPACE GEAR | 4M40 | 2.8L | 4cyl | [05/94 – 12/04] | Auto |
MITSUBISHI EXPRESS SF | 4D56 | 2.5L | 4cyl | [01/88 – 09/90] | Manual |
MITSUBISHI EXPRESS SG | 4D56 | 2.5L | 4cyl | [10/90 – 08/91] | Auto |
MITSUBISHI EXPRESS SH | 4D56 | 2.5L | 4cyl | [10/91 – 09/94] | Auto |
MITSUBISHI EXPRESS SJ | 4D56 | 2.5L | 4cyl | [10/94 – 09/00] | Manual |
MITSUBISHI PAJERO NA | 4D55 | 2.3L | 4cyl | [01/83 – 10/84] | Manual |
MITSUBISHI PAJERO NB | 4D55 | 2.3L | 4cyl | [11/84 – 11/85] | Manual |
MITSUBISHI PAJERO NC | 4D55 | 2.3L | 4cyl | [12/85 – 09/86] | Manual |
MITSUBISHI PAJERO ND | 4D56 | 2.5L | 4cyl | [10/86 – 09/87] | Manual |
MITSUBISHI PAJERO NE | 4D56 | 2.5L | 4cyl | [10/87 – 08/88] | Manual |
MITSUBISHI PAJERO NF | 4D56 | 2.5L | 4cyl | [09/88 – 08/89] | Manual |
MITSUBISHI PAJERO NH | 4D56 | 2.5L | 4cyl | [05/91 – 10/93] | Manual |
MITSUBISHI PAJERO NJ | 4M40 | 2.8L | 4cyl | [11/93 – 01/96] | Manual |
MITSUBISHI PAJERO NJ | 4M40 | 2.8L | 4cyl | [11/93 – 09/96] | Manual |
MITSUBISHI PAJERO NK | 4M40 | 2.8L | 4cyl | [10/96 – 08/97] | Manual |
MITSUBISHI PAJERO NL | 4M40 | 2.8L | 4cyl | [09/97 – 04/00] | Manual |
MITSUBISHI PAJERO NM | 4M40 | 2.8L | 4cyl | [05/00 – 04/02] | Manual |
MITSUBISHI PAJERO V24C (GREY IMPORT) | 4D56 | 2.5L | 4cyl | [01/91 – 12/96] | Auto |
MITSUBISHI TRITON ME | 4D56 | 2.5L | 4cyl | [10/86 – 06/88] | Manual |
MITSUBISHI TRITON MF | 4D56 | 2.5L | 4cyl | [07/88 – 08/89] | Manual |
MITSUBISHI TRITON MG | 4D56 | 2.5L | 4cyl | [09/89 – 08/90] | Manual |
MITSUBISHI TRITON MH | 4D56 | 2.5L | 4cyl | [09/90 – 07/92] | Manual |
MITSUBISHI TRITON MJ | 4D56 | 2.5L | 4cyl | [08/92 – 09/96] | Manual |
MITSUBISHI TRITON MJ | 4D56 | 2.5L | 4cyl | [08/92 – 08/96] | Manual |
MITSUBISHI TRITON MK | 4M40 | 2.8L | 4cyl | [10/96 – 09/03] | Manual |
MITSUBISHI TRITON MK | 4M40 | 2.8L | 4cyl | [10/03 – 06/06] | Manual |
What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.
Where are these sensors located?
The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.
Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.
What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.
How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 low input, or P0118 for high input. The coolant temperature sensor temperature reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.
Why Buy from Us / What makes Our Coolant Temp Sensors the best?
As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.
SKU | CTS162-1 |
Brand: | Aftermarket OEM Replacement |
Part Number: | CTS162 |
Reference OEM Number: | MD050214 |
Other OEM Numbers: | 1346-18-510, MD050214 |
Related Part Numbers: | CS850, CTS162, TS299, TTS018 |
Trade Part Numbers: | MD050214, 88924746, SW1938, TS299, TU295 |
Unit Of Measure | ea |
