Oil Pressure Switch for Lexus HS250H IS300H IS250 IS350 IS300 LC500H LS600H LX470 CT200H ES300H ES3

BRAND NEW *OEM QUALITY* ENGINE OIL PRESSURE SWITCH (Warning Light) TO SUIT LEXUS

TO SUIT:

OEM#

83530-05010, 83530-0E010, 83530-12070, 83530-14060, 83530-14070, 83530-20030, 83530-28010,

83530-28020, 83530-30090, 83530-30100, 83530-60010, 83530-60020, 83530-AA011

PACKAGE INCLUDES:

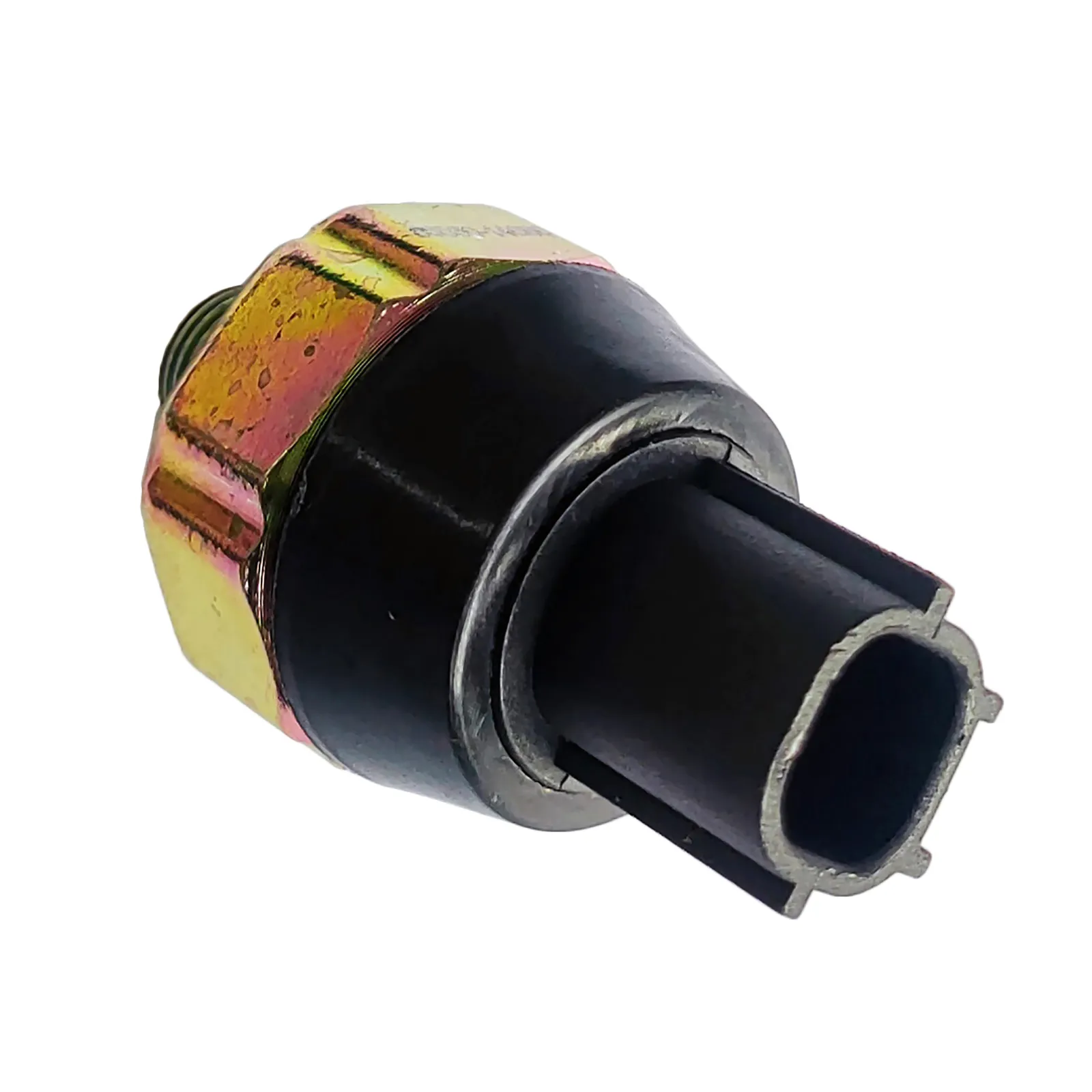

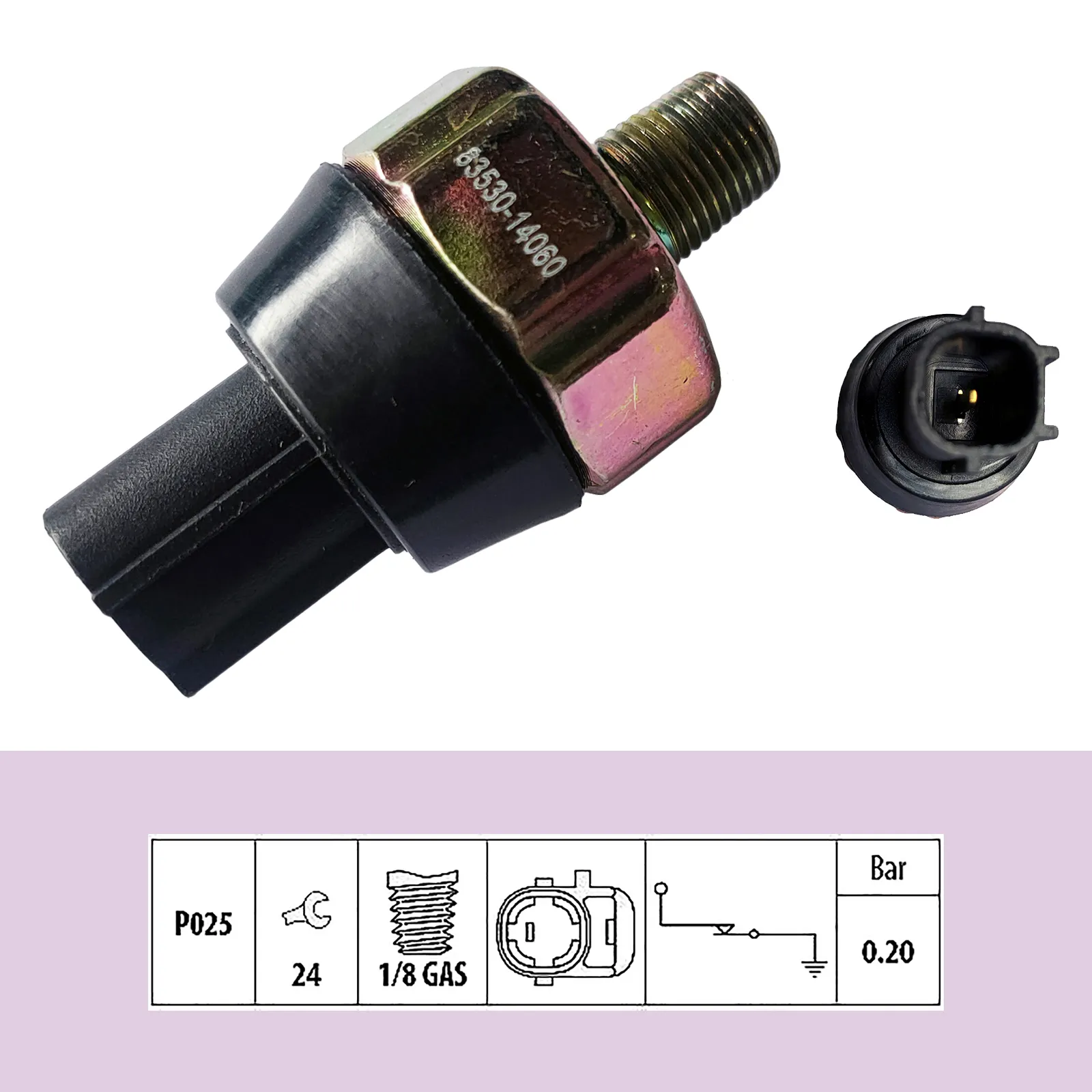

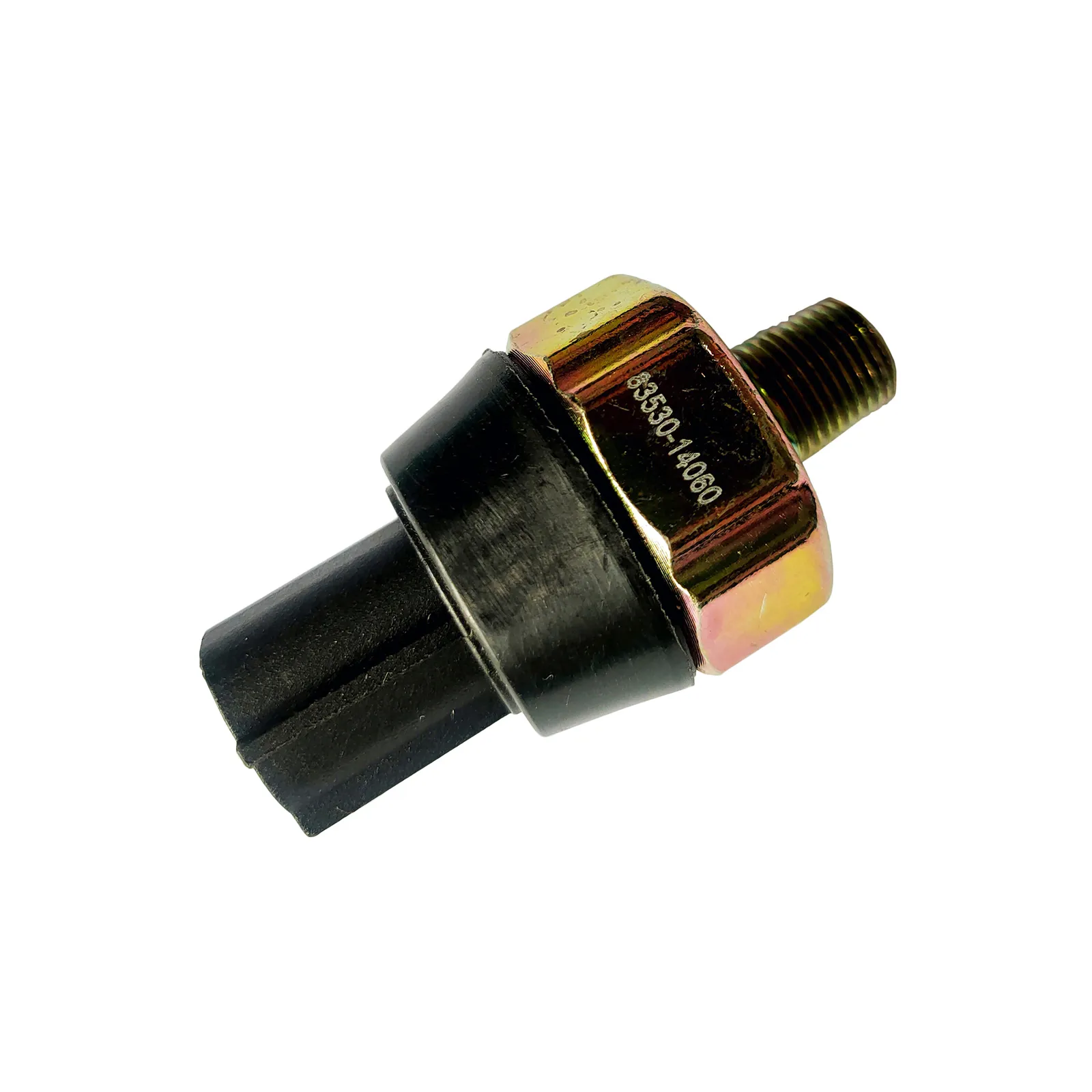

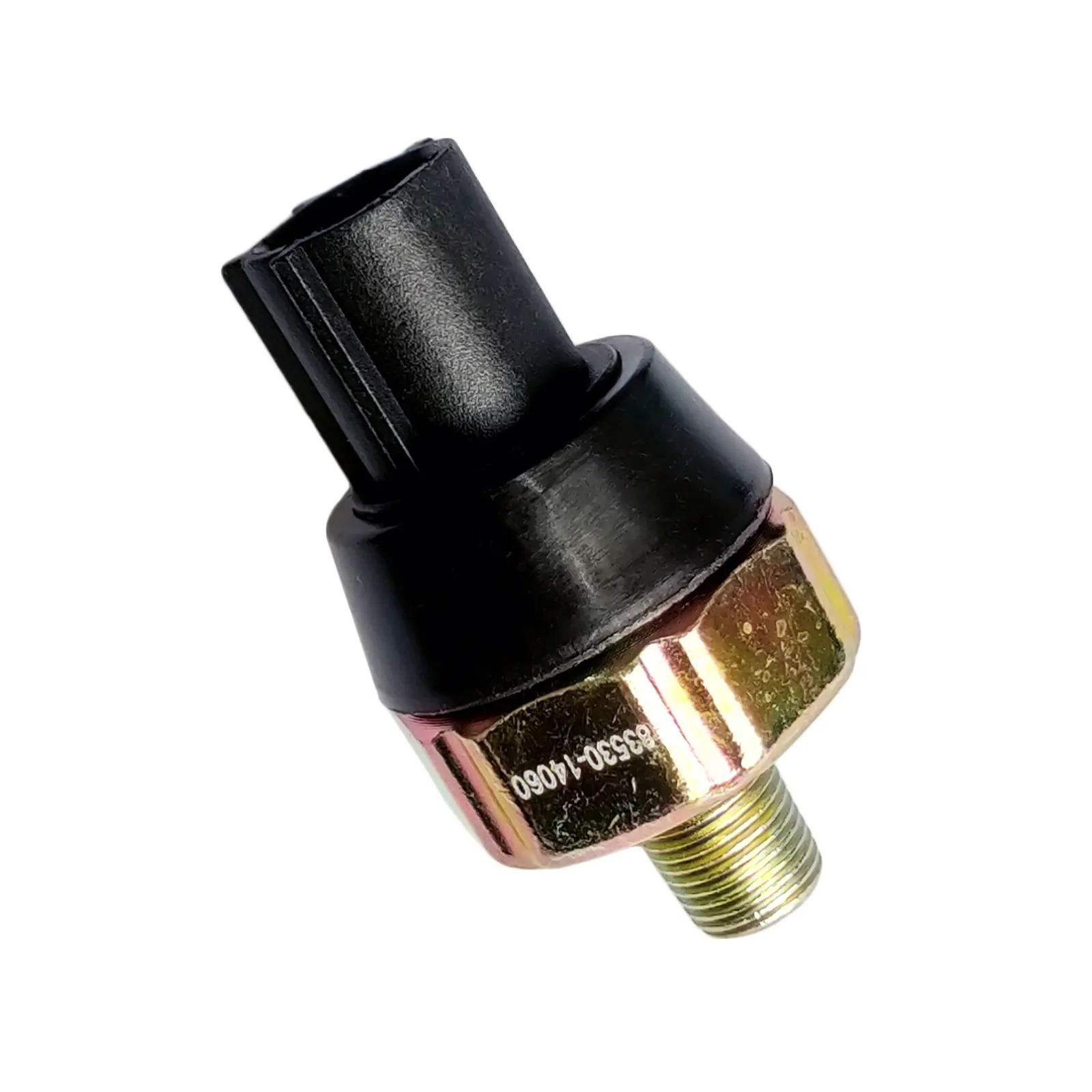

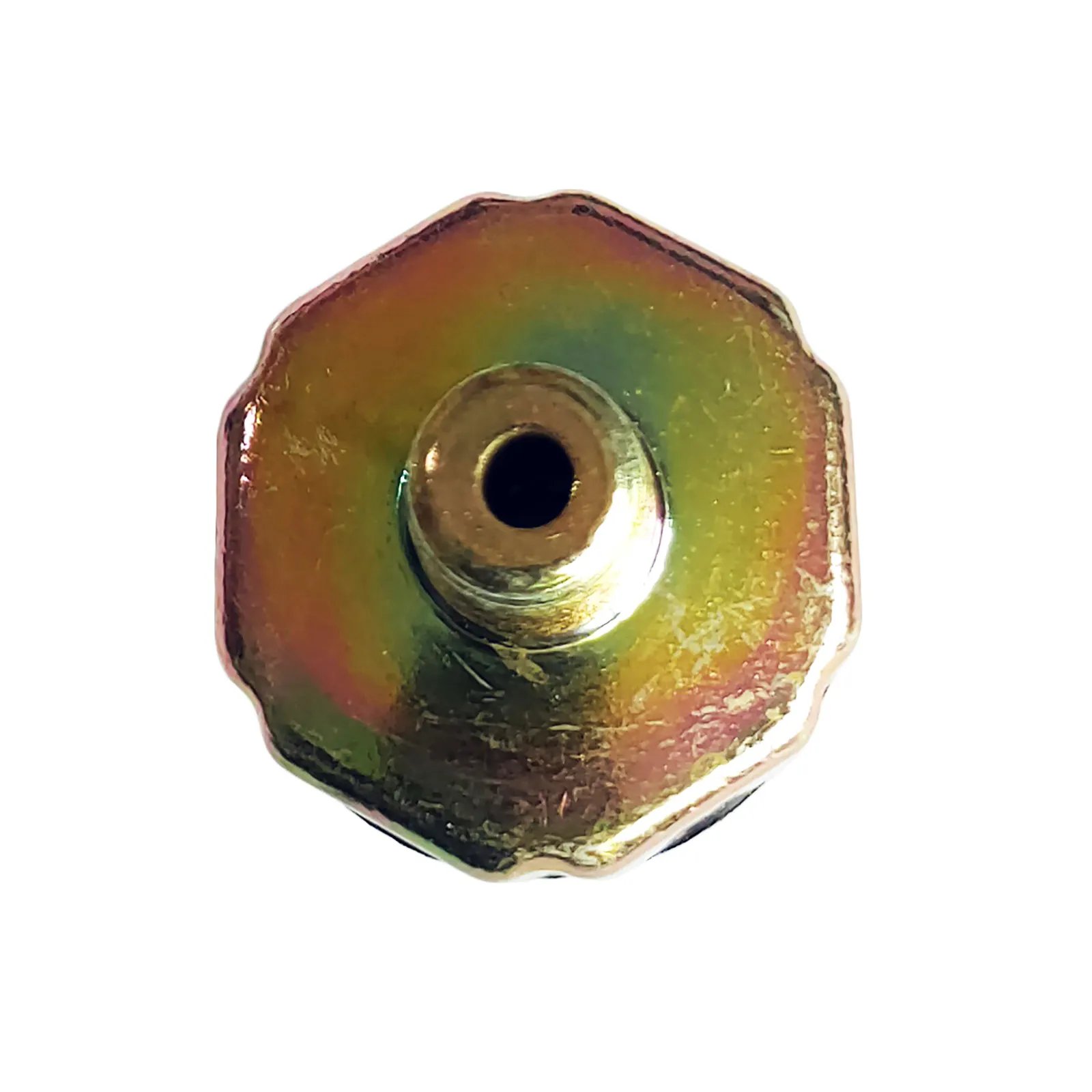

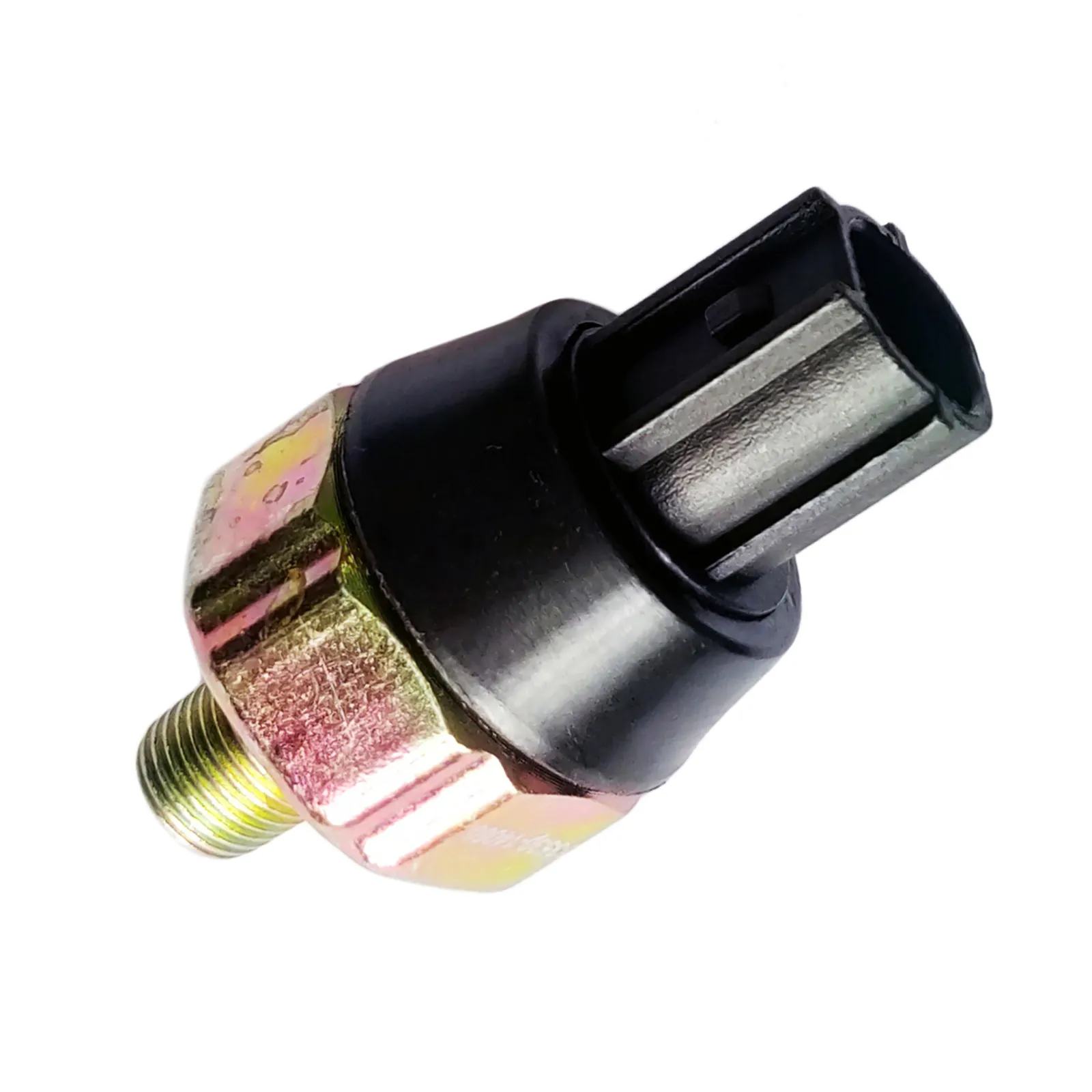

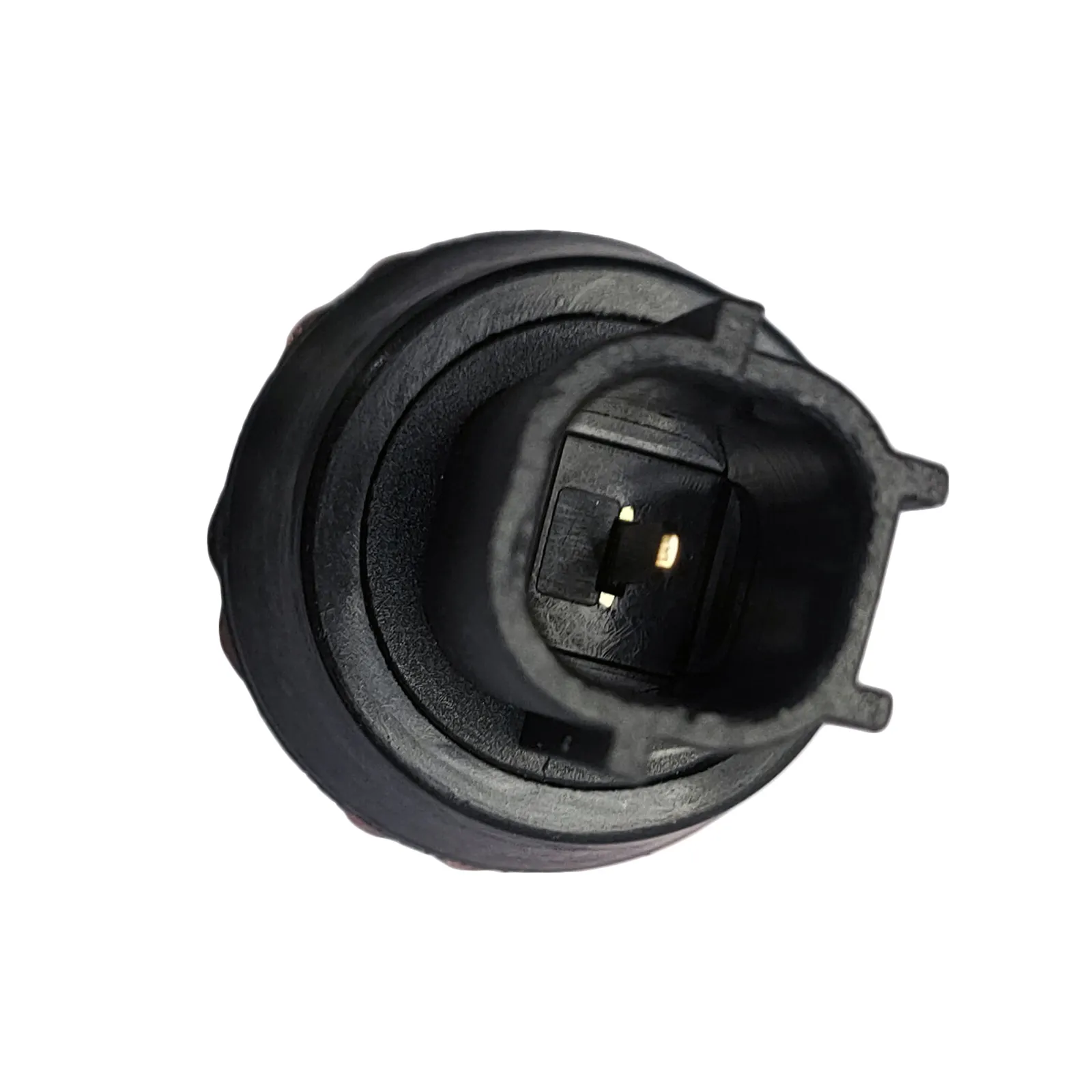

1 X *OEM QUALITY* ENGINE OIL PRESSURE SWITCH (1-PIN PLUG).

An Oil Pressure Switch or Sensor is designed to assess the integrity of an engine’s lubrication system. The switch responds to changes in engine oil pressure, and any fault is displayed via the illumination of the oil pressure light in the dash.
A faulty oil pressure switch/sensor can lead to low oil levels, which can be problematic for your engine.

[09/11 - 08/21] LEXUS CT ZWA10R 200h 1.8L 4cyl 2ZR-FXE,5ZR-FXE 100kW
[06/12 - 06/18] LEXUS ES GSV60R 350 3.5L V6 2GR-FE Euro 4 204kW
[01/98 - 12/01] LEXUS ES MCV20R 3.0L V6 1MZ-FE 149kW
[10/01 - 06/08] LEXUS ES MCV30R 3.0L V6 1MZ-FE 158kW
[09/91 - 12/96] LEXUS ES VCV10R 300 3.0L V6 3VZ-FE 138kW
[10/13 - 12/18] LEXUS GS AWL10R 300h 2.5L 4cyl 2AR-FSE 164kW
[01/12 - 08/20] LEXUS GS GRL10R 350 3.5L V6 2GR-FSE 234kW
[03/12 - 08/20] LEXUS GS GRL10R,GRL12R,GRL15R... 350 3.5L V6 2GR-FSE,2GR-FKS 232kW
[01/12 - 09/15] LEXUS GS GRL11R 250 2.5L V6 4GR-FSE 154kW
[04/05 - 11/11] LEXUS GS GRS190R 300 3.0L V6 3GR-FSE 183kW
[02/06 - 11/11] LEXUS GS GRS191R,GWS191R 450h 3.5L V6 2GR-FSE 254kW
[03/12 - 09/18] LEXUS GS GWL10R 450h 3.5L V6 2GR-FXE 254kW
[01/93 - 08/97] LEXUS GS JZS147R 300 3.0L 6cyl 2JZ-GE 156kW
[10/00 - 12/04] LEXUS GS JZS160R 300 3.0L 6cyl 2JZ-GE 161kW
[08/97 - 10/00] LEXUS GS JZS160R 300 3.0L 6cyl 2JZ-GE 163kW
[09/07 - 11/11] LEXUS GS URS190R 460 4.6L V8 1UR-FSE 255kW
[04/05 - 12/08] LEXUS GS UZS190R 430 4.3L V8 3UZ-FE 208kW
[09/09 - 12/12] LEXUS HS ANF10 250h 2.4L 4cyl 2AZ-FXE 139kW
[04/13 - 09/20] LEXUS IS AVE30R III 300h 2.5L 4cyl 2AR-FSE 164kW
[04/09 - 06/15] LEXUS IS C GSE20 250 2.5L V6 4GR-FSE 153kW
[08/05 - 03/13] LEXUS IS GSE20 II 250 2.5L V6 4GR-FSE 153kW
[01/08 - 03/13] LEXUS IS GSE21 II 350 3.5L V6 2GR-FSE 234kW
[04/13 - 09/17] LEXUS IS GSE31R III 350 3.5L V6 2GR-FSE 233kW
[04/99 - 07/05] LEXUS IS GXE10 I 200 2.0L 6cyl 1G-FE 114kW
[09/01 - 07/05] LEXUS IS JCE10 I 300 3.0L 6cyl 2JZ-GE 157kW
[11/07 - 03/13] LEXUS IS USE20 II IS F 5.0L V8 2UR-GSE 311kW
[12/89 - 12/95] LEXUS LS UCF10 400 4.0L V8 1UZ-FE 180kW
[12/94 - 08/97] LEXUS LS UCF20R 400 4.0L V8 1UZ-FE 194kW
[09/98 - 10/00] LEXUS LS UCF20R 400 4.0L V8 1UZ-FE 203kW
[09/97 - 10/00] LEXUS LS UCF20R 400 4.0L V8 1UZ-FE 209kW
[08/00 - 08/06] LEXUS LS UCF30 430 4.3L V8 3UZ-FE 207kW
[04/06 - 08/12] LEXUS LS USF40 460 4.6L V8 1UR-FSE 280kW
[09/12 - 11/17] LEXUS LS USF40 460 4.6L V8 1UR-FSE 285kW
[09/07 - 09/17] LEXUS LS UVF45,UVF46 600h 5.0L V8 2UR-FSE 327kW
[11/14 - 08/21] LEXUS NX AYZ10R 300h 2.5L 4cyl 2AR-FXE Euro 6 145kW
[09/14 - 11/17] LEXUS RC GSC10 350 3.5L V6 2GR-FSE 234kW
[08/14 - 11/17] LEXUS RC USC10R F 5.0L V8 2UR-GSE 330kW
[08/14 - 11/17] LEXUS RC USC10R F 5.0L V8 2UR-GSE 351kW
[12/08 - 08/15] LEXUS RX GGL15R 350 3.5L V6 2GR-FE,2GR-FXE Euro 4 204kW
[10/15 - 09/22] LEXUS RX GGL25R,GGL26R 350 3.5L V6 2GR-FKS 221kW
[12/17 - 09/22] LEXUS RX GGL26 350L 3.5L V6 2GR-FKS 216kW
[02/06 - 12/08] LEXUS RX GSU35R 350 3.5L V6 2GR-FE Euro 4 203kW
[09/12 - 10/15] LEXUS RX GYL15R 450h 3.5L V6 2GR-FXE 220kW
[01/98 - 02/03] LEXUS RX MCU10R 300 3.0L V6 1MZ-FE 148kW
[10/00 - 05/03] LEXUS RX MCU15 300 3.0L V6 1MZ-FE 148kW
[04/03 - 12/08] LEXUS RX MCU38 330 3.3L V6 3MZ-FE Euro 4 171kW
[09/05 - 12/08] LEXUS RX MHU38R 400h 3.3L V6 3MZ-FE Euro 4 200kW
[01/91 - 12/96] LEXUS SC UZZ31 400 4.0L 1UZ-FE 194kW
[05/01 - 07/10] LEXUS SC UZZ40R 430 4.3L V8 3UZ-FE 210kW

SKU	CPS51-Lexus1
Brand:	Aftermarket OEM Replacement
Part Number:	8353028020
Reference OEM Number:	83530-28020
Other OEM Numbers:	83530-20030, 83530-28010, 83530-28020, 83530-30090
Related Part Numbers:	CPS51, TPS011, OS0007, SW9010
Trade Part Numbers:	VEMO: V95-73-0004, WALKER: 256-1037
Note:	CHECK IMAGES. CONFIRM WITH OEM NUMBER
