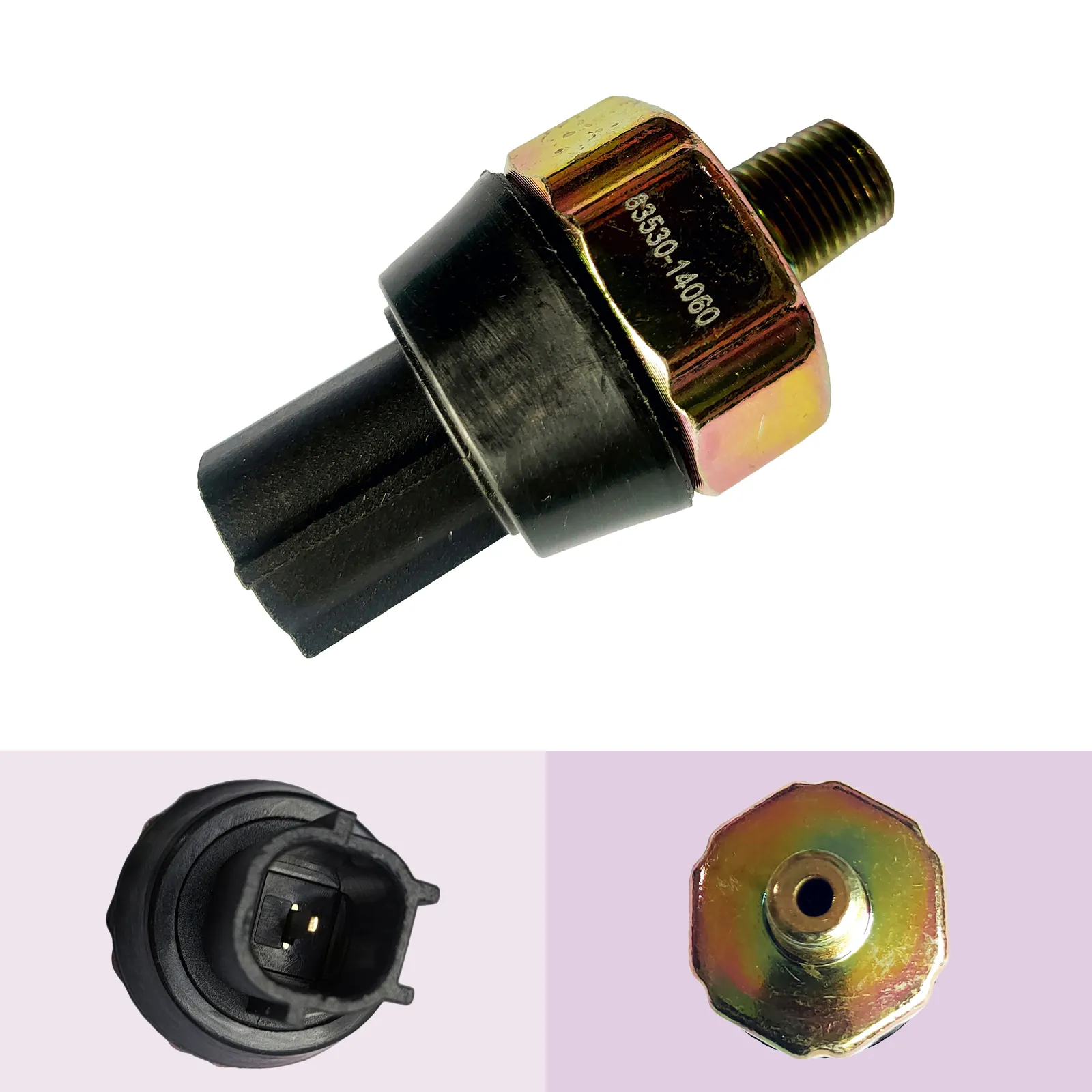

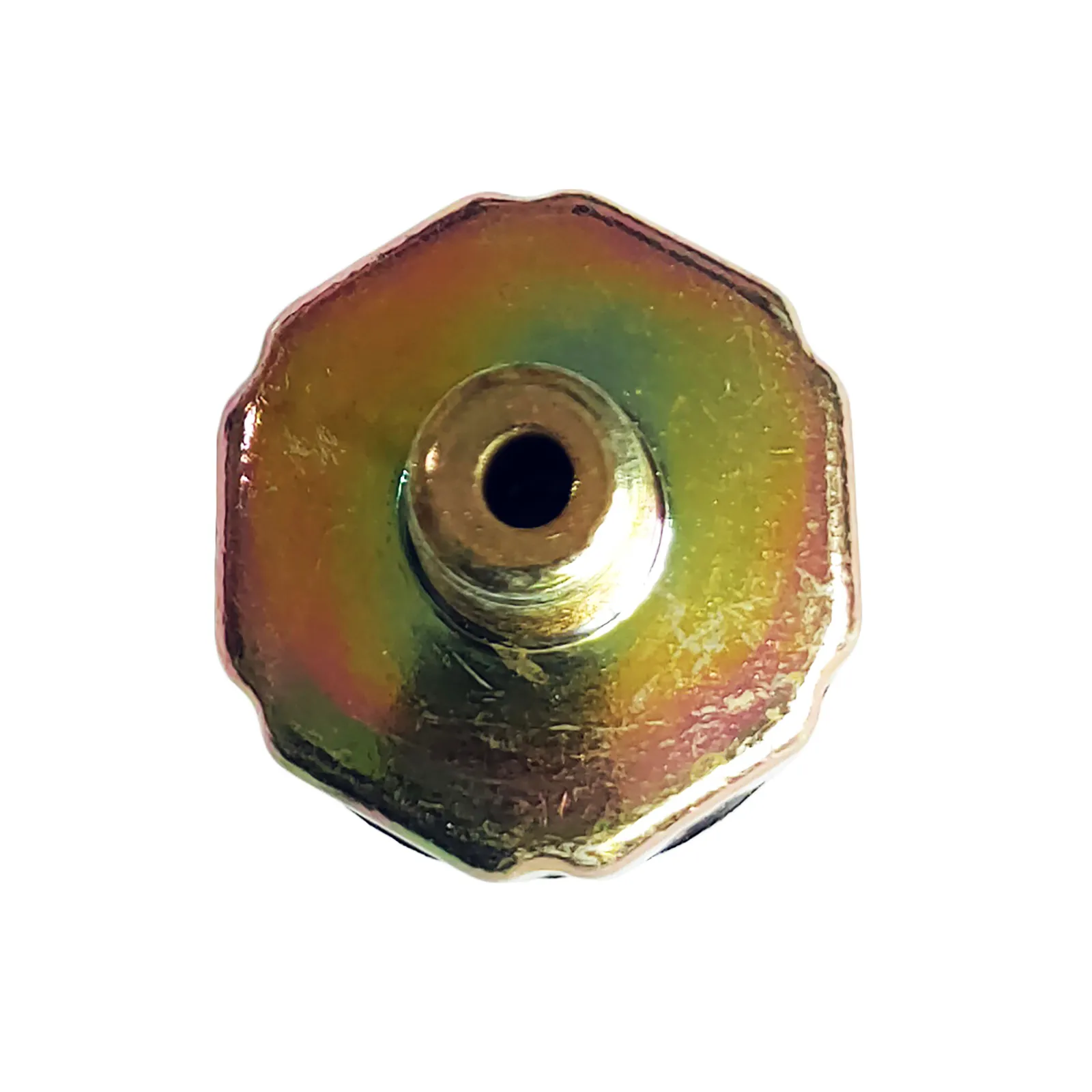

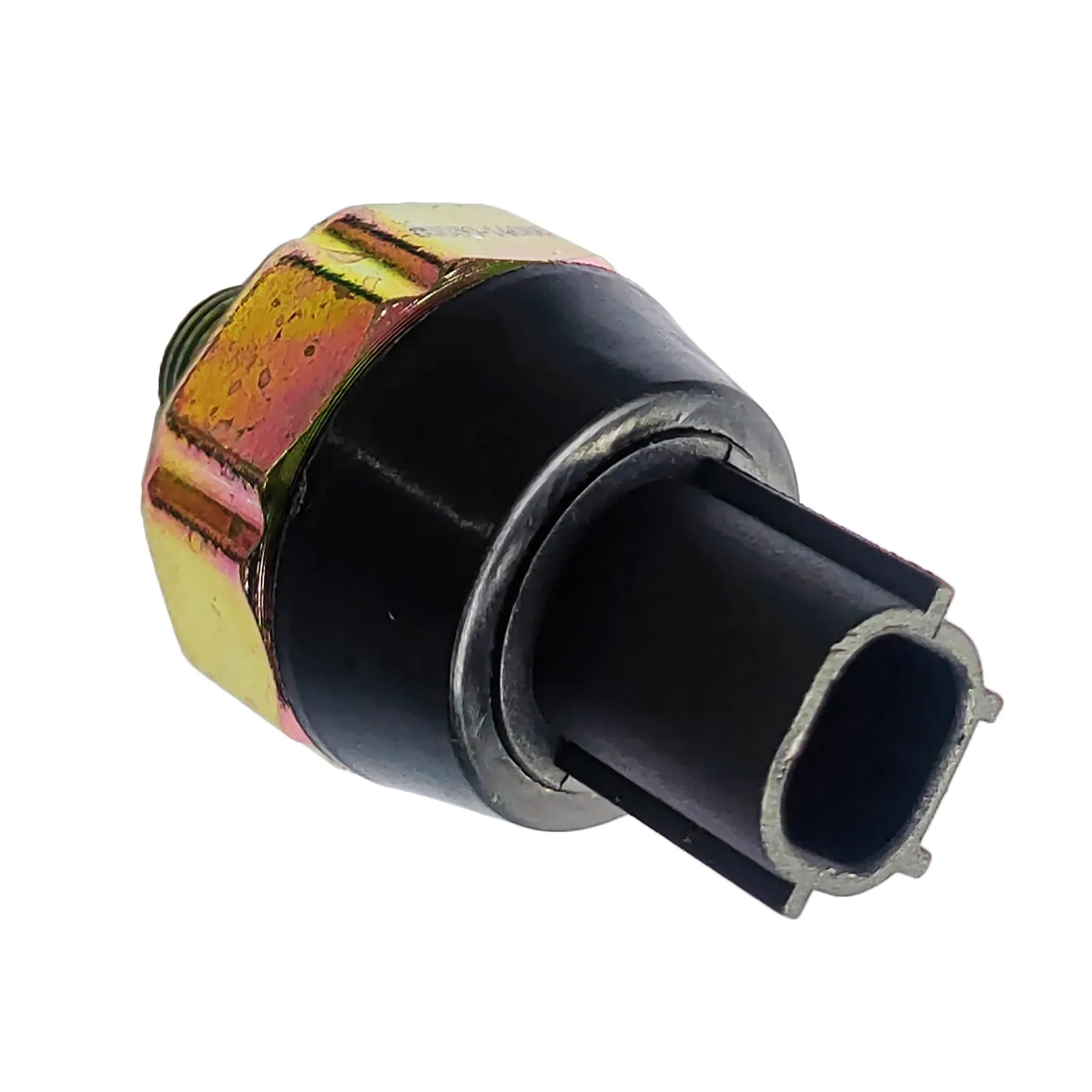

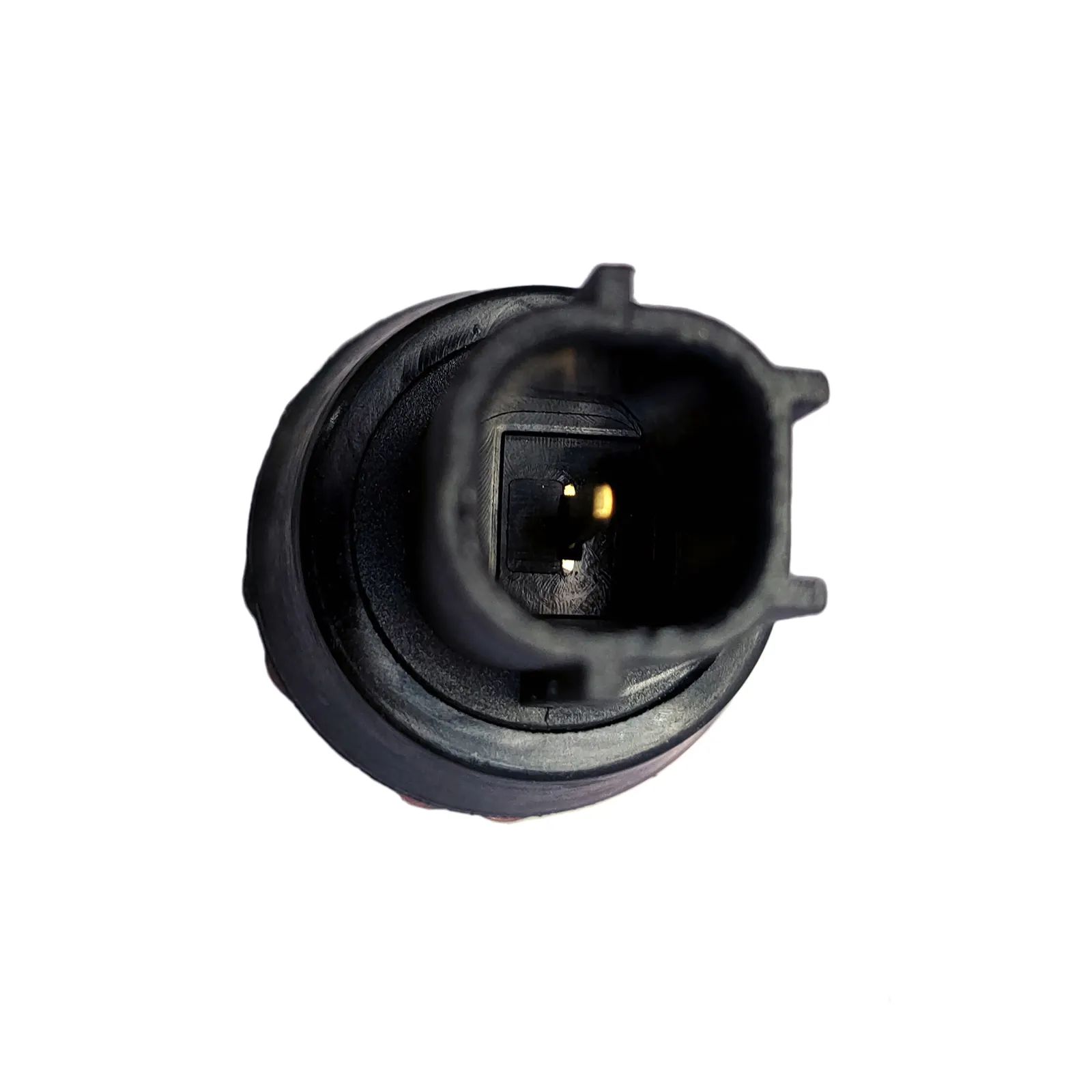

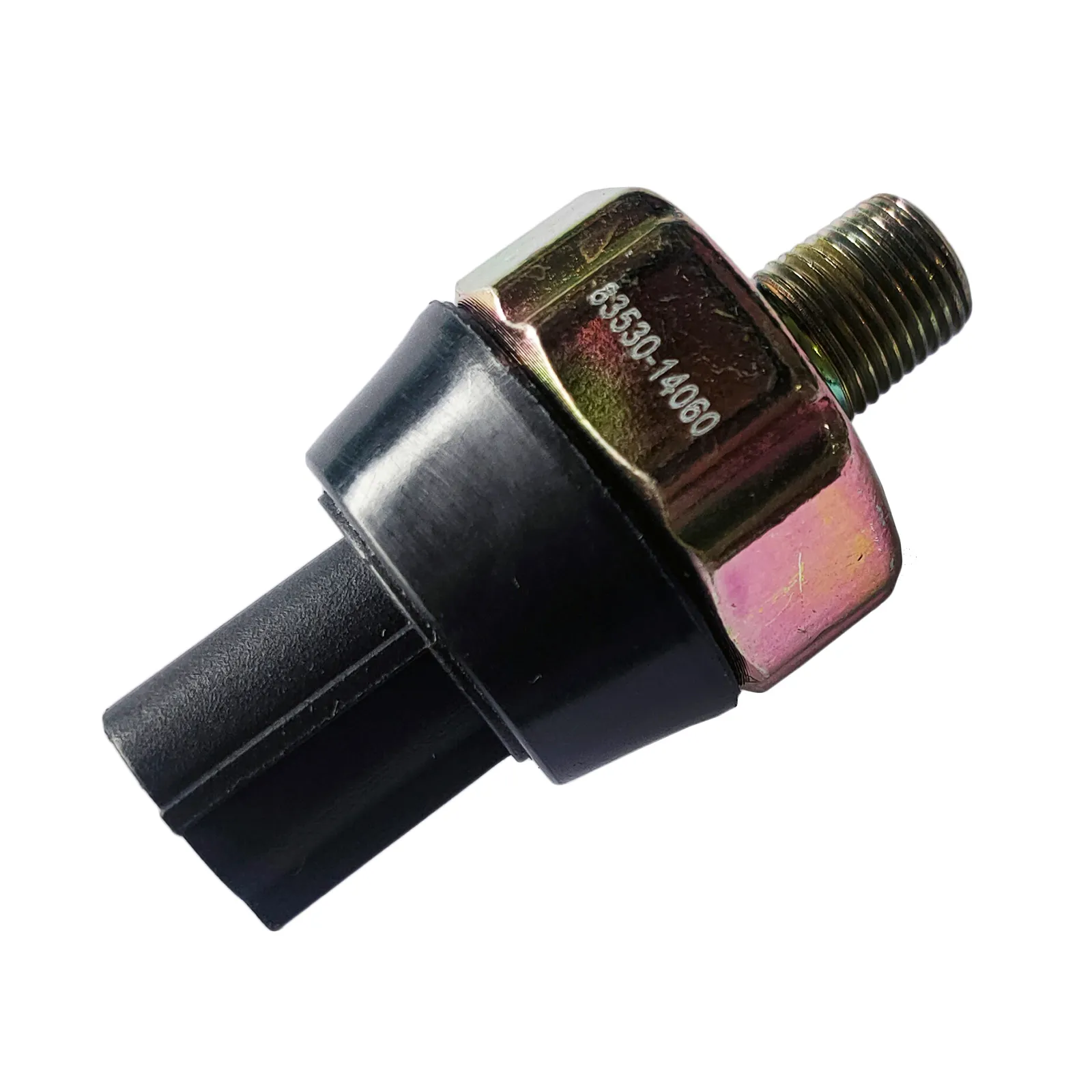

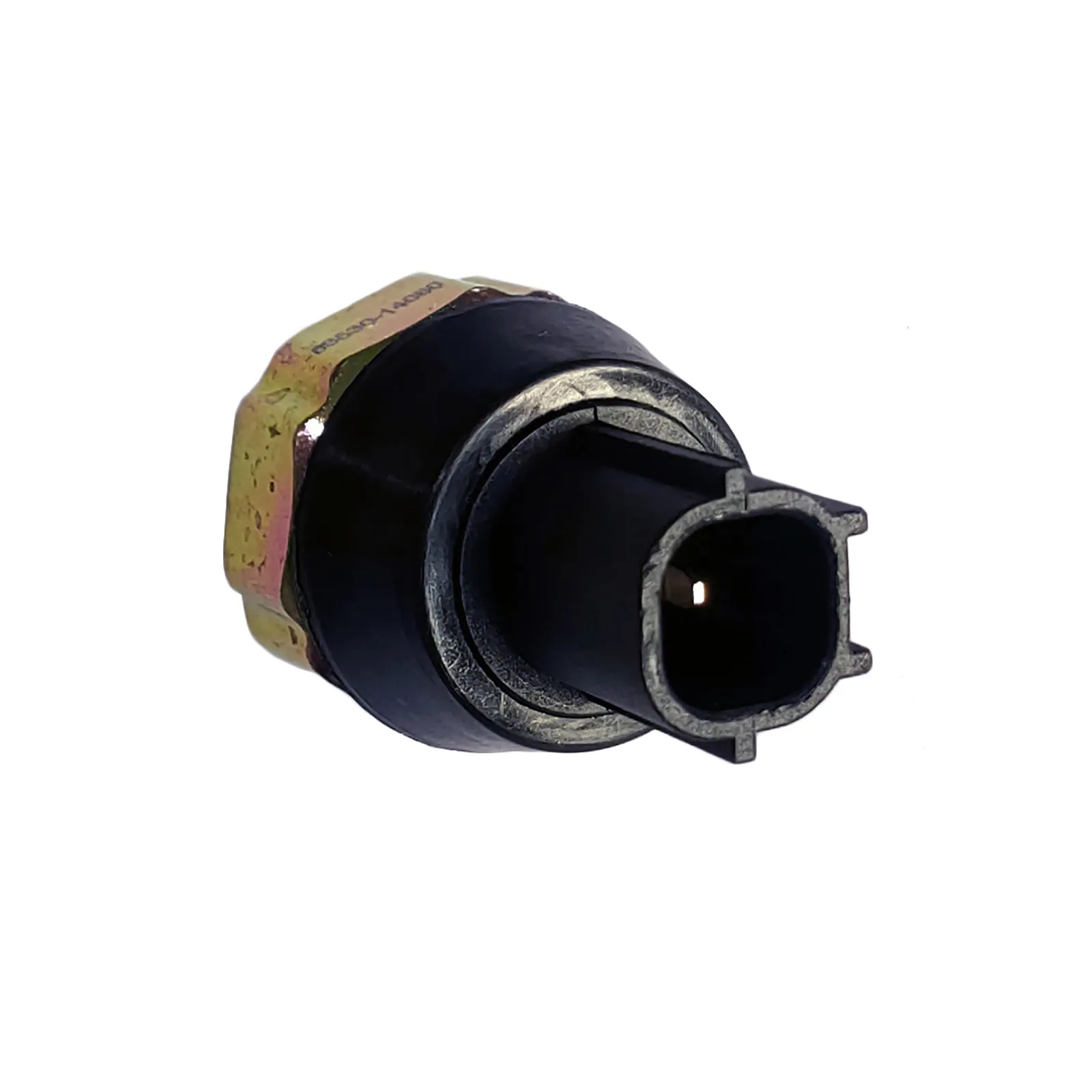

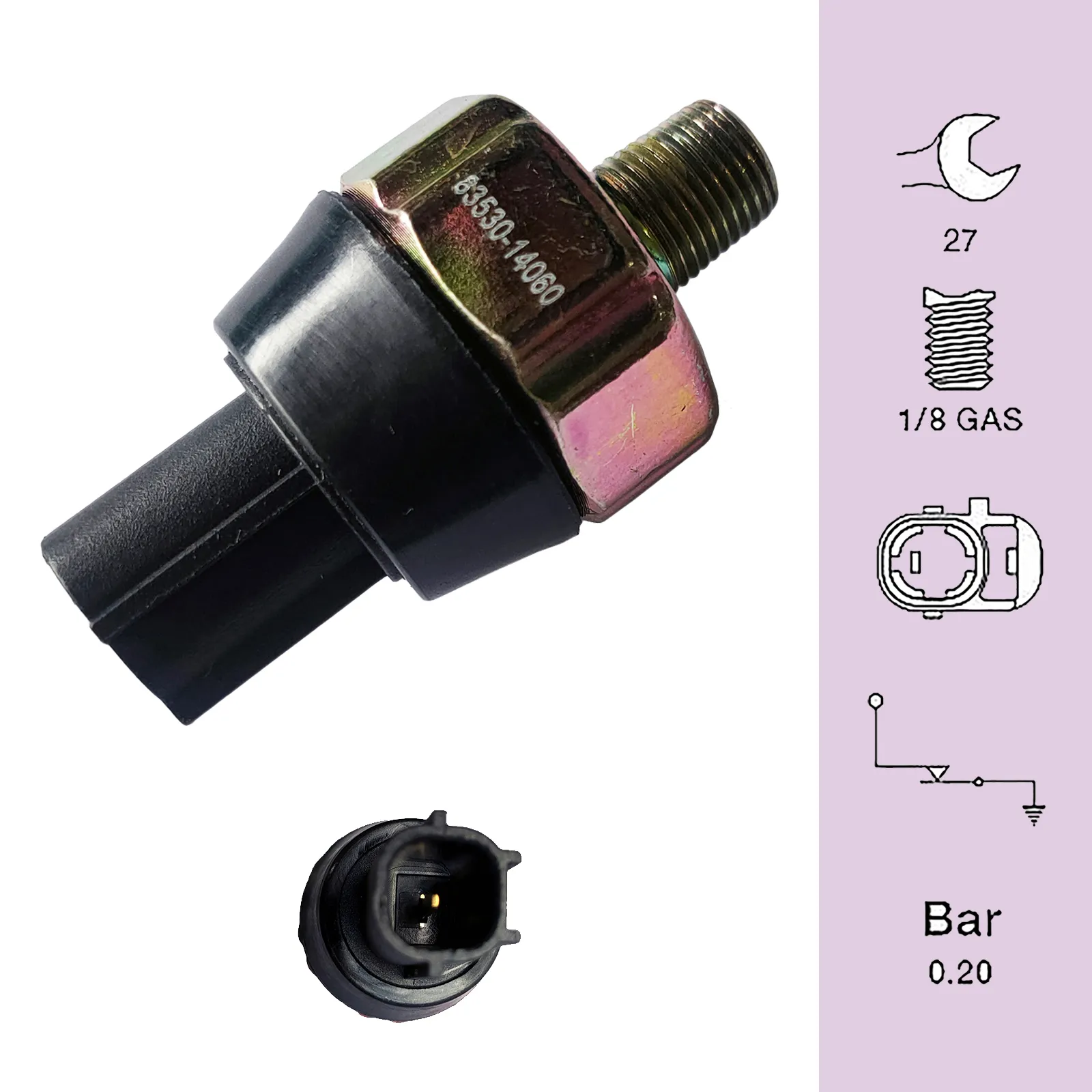

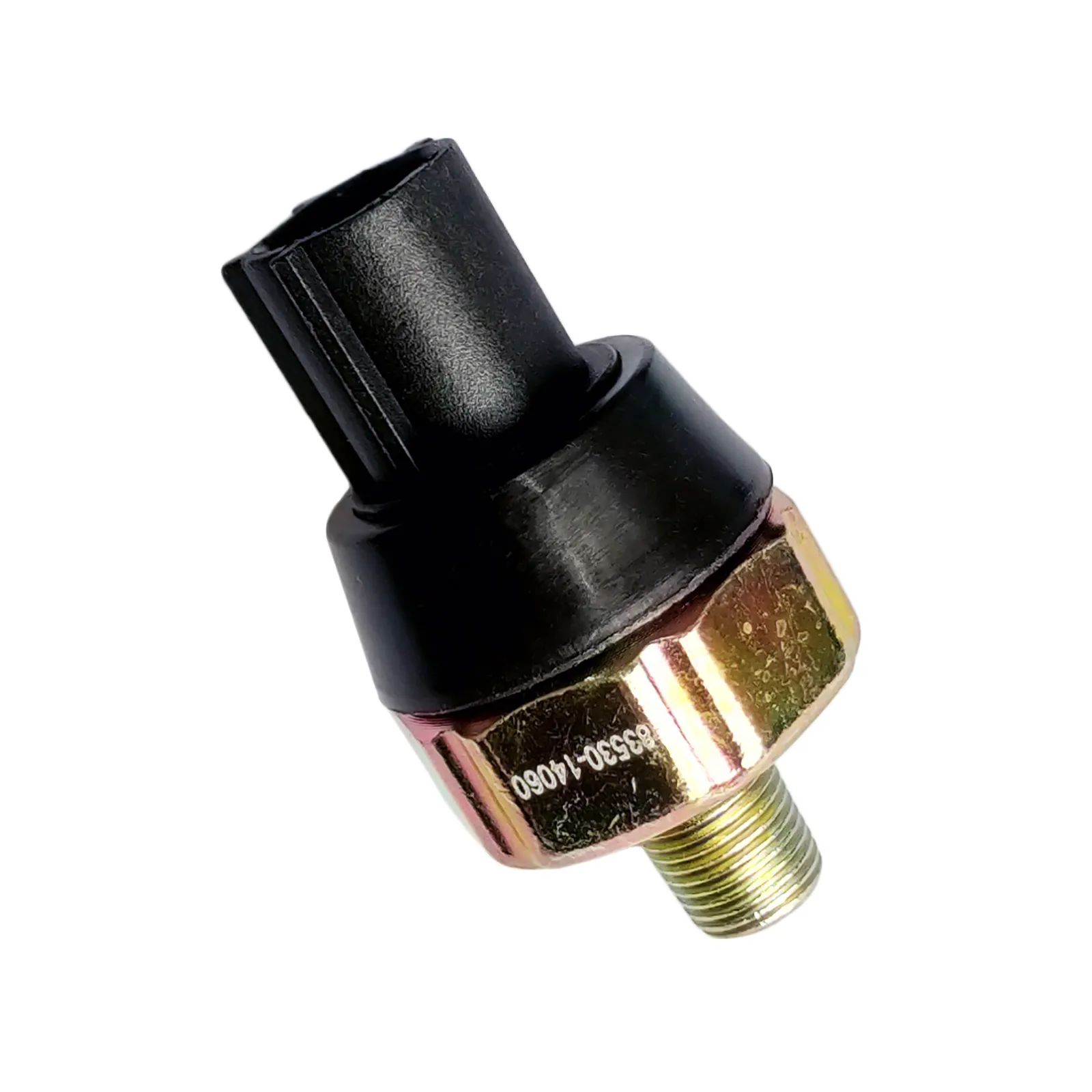

BRAND NEW *OEM QUALITY* ENGINE OIL PRESSURE SWITCH (Warning Light) TO SUIT Toyota HiAce KDH 1KDFTV 2KDFTV COMMUTER REGIUS



TO SUIT:

  • TOYOTA HIACE KDH Series 1KDFTV 2KDFTV Engines including COMMUTER REGIUS
  • TRH Series 1TR-FE 2TR-FE Engies
  • RZH Series 1RZ-E 2RZ 2RZ-E Engies
  • also fits HIACE Varients with (1KZ-TE, 2C, 2C-T, 3C-T, 3L, 3S-FE, 3Y-C, 3Y-EU, 5L, 5VZ-FE, 7K, 7K-E) Engines



OEM#

83530-05010, 83530-14070-000, 83530-28020, 83530-60020



PACKAGE INCLUDES:

1 X *OEM QUALITY* ENGINE OIL PRESSURE SWITCH (1-PIN PLUG).

An Oil Pressure Switch or Sensor is designed to assess the integrity of an engine’s lubrication system. The switch responds to changes in engine oil pressure, and any fault is displayed via the illumination of the oil pressure light in the dash.
A faulty oil pressure switch/sensor can lead to low oil levels, which can be problematic for your engine.

  • [08/04 - 01/19] TOYOTA COMMUTER,HIACE KDH203R,KDH221,KDH22... V D 3.0L 4cyl 1KD-FTV 80kW
  • [05/10 - 12/14] TOYOTA COMMUTER,HIACE KDH223 V D 3.0L 4cyl 1KD-FTV 100kW
  • [01/05 - 01/19] TOYOTA HIACE KDH200,KDH223 V D 3.0L 4cyl 1KD-FTV 75kW
  • [05/10 - 01/19] TOYOTA HIACE KDH201,KDH221 V D 3.0L 4cyl 1KD-FTV 100kW
  • [11/06 - 01/19] TOYOTA HIACE KDH201,KDH221 V D 3.0L 4cyl 1KD-FTV 80kW
  • [09/07 - 11/08] TOYOTA HIACE KDH206 V D 3.0L 4cyl 1KD-FTV 100kW
  • [11/08 - 05/19] TOYOTA HIACE KDH206 V D 3.0L 4cyl 1KD-FTV 106kW
  • [08/04 - 12/20] TOYOTA REGIUS ACE KDH201,KDH211,KDH221 D-4D 3.0L 4cyl 1KD-FTV 106kW
  • [08/04 - 12/20] TOYOTA REGIUS ACE KDH206 D-4D 3.0L 4cyl 1KD-FTV 106kW
  •
  • [09/06 - 12/06] TOYOTA COMMUTER,HIACE KDH202,KDH212,KDH222 V D-4D 2.5L 4cyl 2KD-FTV 80kW
  • [08/04 - 09/07] TOYOTA COMMUTER,HIACE KDH205,KDH225,KDH227 V D-4D 2.5L 4cyl 2KD-FTV 94kW
  • [01/05 - 09/06] TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 4cyl 2KD-FTV 75kW
  • [09/06 - 07/10] TOYOTA HIACE KDH200,KDH220 V D-4D 2.5L 4cyl 2KD-FTV 80kW
  • [08/04 - 09/07] TOYOTA HIACE KDH205,KDH225 V 2.5L 4cyl 2KD-FTV 94kW
  • [08/04 - 12/20] TOYOTA REGIUS ACE KDH200 D-4D 2.5L 4cyl 2KD-FTV 80kW
  •
  • [08/99 - 05/02] TOYOTA HIACE KCH40 IV TD 3.0L 4cyl 1KZ-TE 104kW
  • [08/99 - 05/02] TOYOTA HIACE KCH46 IV 3.0L 4cyl 1KZ-TE 104kW
  • [08/93 - 08/04] TOYOTA HIACE KZH100,KZH110,KZH120 IV TD 3.0L 4cyl 1KZ-TE 96kW
  • [08/93 - 08/04] TOYOTA HIACE KZH106,KZH116,KZH126 IV TD 3.0L 4cyl 1KZ-TE 96kW
  •
  • [01/89 - 12/95] TOYOTA HIACE RZH100 2.0L 1RZ-E 80kW
  • [08/89 - 07/95] TOYOTA HIACE RZH100 2.0L 1RZ-E 80kW
  •
  • [08/04 - 02/19] TOYOTA HIACE TRH200 V 2.0L 4cyl 1TR-FE 98kW
  • [08/04 - 12/20] TOYOTA REGIUS ACE TRH200 2.0L 4cyl 1TR-FE 98kW
  •
  • [01/05 - 12/14] TOYOTA COMMUTER,HIACE TRH223 V 2.7L 4cyl 2TR-FE 111kW
  • [12/13 - 01/19] TOYOTA COMMUTER,HIACE TRH223R V 2.7L 4cyl 2TR-FE 118kW
  • [01/05 - 01/19] TOYOTA HIACE TRH201,TRH221 V VVTi 2.7L 4cyl 2TR-FE 111kW
  • [01/15 - 01/19] TOYOTA HIACE TRH223 V 2.7L 4cyl 2TR-FE 118kW
  • [08/04 - 12/20] TOYOTA REGIUS ACE TRH211,TRH214,TRH221... 2.7L 4cyl 2TR-FE 111kW
  •
  • [08/90 - 07/94] TOYOTA LITEACE CM51 2.0L 2C
  • [10/86 - 07/99] TOYOTA LITEACE CM51 2.0L 2C
  • [02/85 - 10/93] TOYOTA MASTER ACE SURF CR21,CR28 TD 2.0L 4cyl 2C-T 62kW
  •
  • [08/89 - 07/98] TOYOTA HIACE RZH103,RZH113 IV 2.4L 4cyl 2RZ 85kW
  • [08/89 - 10/96] TOYOTA HIACE RZH103R IV 2.4L 4cyl 2RZ 72kW
  • [01/89 - 12/98] TOYOTA HIACE RZH125R 2.4L 2RZ
  • [10/89 - 09/98] TOYOTA HIACE RZH125R 2.4L 2RZ
  • [01/93 - 12/00] TOYOTA HIACE RZH101 2.4L 2RZ-E
  • [08/98 - 08/04] TOYOTA HIACE RZH103,RZH113 IV i 2.4L 4cyl 2RZ-E 85kW
  • [08/95 - 12/04] TOYOTA HIACE RZH103,RZH125 IV 2.4L 4cyl 2RZ-E 85kW
  • [08/89 - 08/03] TOYOTA HIACE RZH103,RZH183 IV 2.4L 4cyl 2RZ-E 88kW
  • [08/95 - 11/03] TOYOTA HIACE SBV RCH12,RCH22 IV SBV 2.4L 4cyl 2RZ-E 85kW
  • [08/95 - 08/04] TOYOTA HIACE SBV RZH10 IV 2.4L 4cyl 2RZ-E 88kW
  •
  • [08/93 - 07/96] TOYOTA TOWN ACE CR22 2.2L 3C-T
  • [09/93 - 10/96] TOYOTA TOWN ACE CR22 2.2L 3C-T
  • [09/93 - 10/96] TOYOTA TOWN ACE CR31R TD 2.2L 4cyl 3C-T 67kW
  • [09/93 - 09/96] TOYOTA TOWN ACE SBV CR22R TD 2.2L 4cyl 3C-T 67kW
  • [08/89 - 08/00] TOYOTA HIACE LH103,LH105,LH113 IV D 2.8L 4cyl 3L 61kW
  • [08/89 - 08/00] TOYOTA HIACE LH105,LH125 IV D 2.8L 4cyl 3L 61kW
  • [01/89 - 12/93] TOYOTA HIACE LH107 2.8L 3L
  • [08/89 - 07/00] TOYOTA HIACE LH107 2.8L 3L
  • [08/89 - 07/98] TOYOTA HIACE LH109 IV D 2.8L 4cyl 3L 61kW
  •
  • [10/96 - 10/01] TOYOTA TOWN ACE SR40R 2.0L 4cyl 3S-FE 96kW
  • [04/92 - 01/97] TOYOTA TOWN ACE SBV YR39 2.0L 4cyl 3Y-C 65kW
  • [08/85 - 09/96] TOYOTA TOWN ACE YR21RG 2.0L 4cyl 3Y-EU 70kW
  • [10/85 - 12/91] TOYOTA TOWN ACE YR30R,YR36R 2.0L 4cyl 3Y-EU 70kW
  • [08/98 - 02/05] TOYOTA HIACE LH162,LH172 IV D 3.0L 4cyl 5L 65kW
  •
  • [08/95 - 08/01] TOYOTA HIACE VCH10 IV 3.4L V6 5VZ-FE 131kW
  • [02/97 - 01/99] TOYOTA TOWN ACE SBV KR42 SBV 1.8L 4cyl 7K 56kW
  • [12/98 - 07/07] TOYOTA TOWN ACE KM70,KM75 1.8L 4cyl 7K-E 60kW
SKU CPS51-HiAce
Brand: Aftermarket OEM Replacement
Part Number: 8353028020
Reference OEM Number: 83530-28020
Other OEM Numbers: 83530-05010, 83530-14070-000, 83530-28020, 83530-60020
Related Part Numbers: CPS51, TPS011, OS0007, SW9010
Trade Part Numbers: VEMO: V95-73-0004, WALKER: 256-1037
Note: CHECK IMAGES. CONFIRM WITH OEM NUMBER
