BRAND NEW *OEM QUALITY* DIESEL FUEL TEMPERATURE SENSOR TO SUIT TOYOTA MAZDA FORD GM ISUZU OPEL SUZUKI ALFA ROMEO

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

OEM#

97216283
98023581
1 441 571
15280-78E10
15280-78E10-000
62 35 749
62 38 154
6C1Q-9F951-AA
89454-20010
89454-60010
89454-60020
8-98023581-0
97 216 283
98 023 581
RF1L-18-840
SH01-18-822

• for OE No: 89454-60010

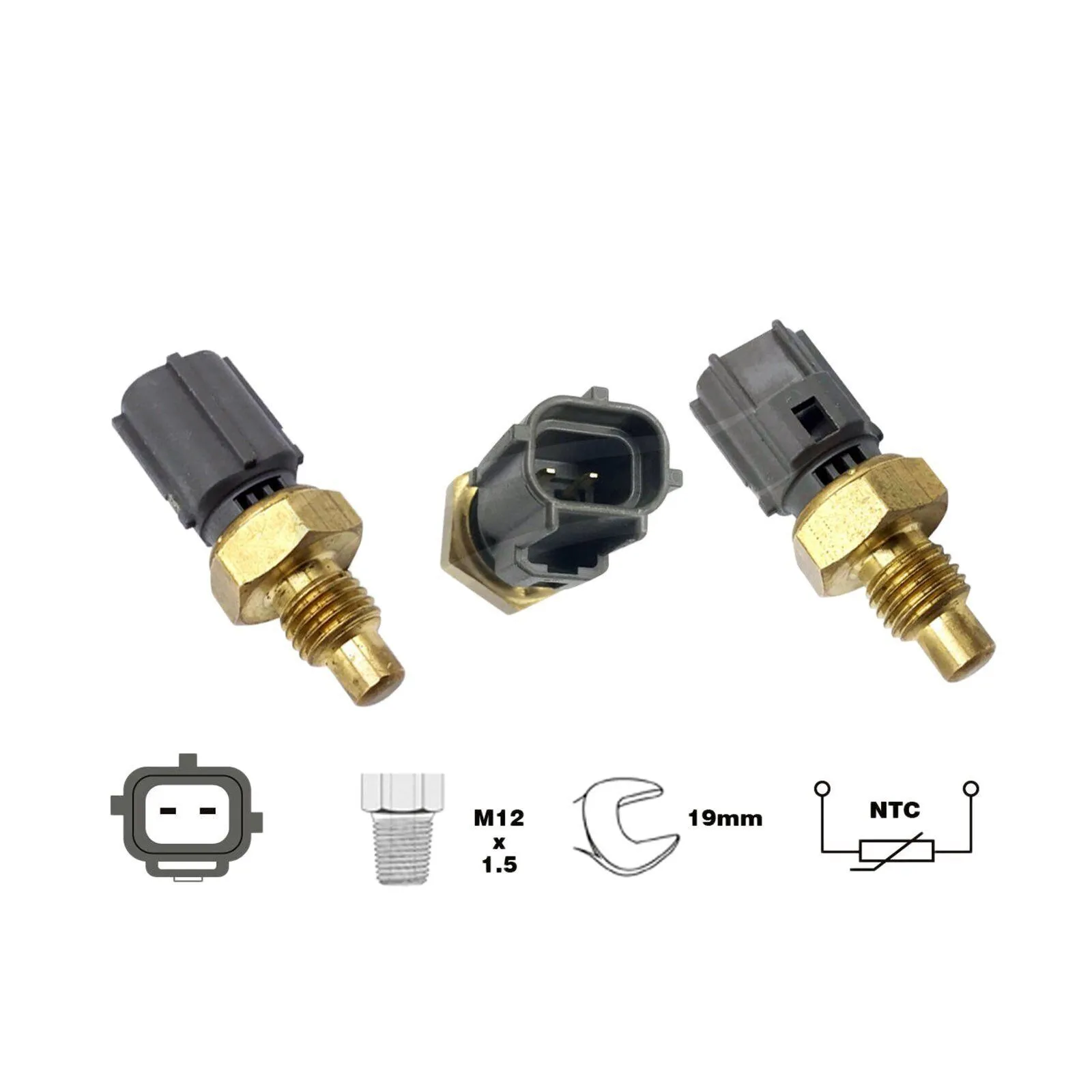

• External Thread: M 12×1.5 mm
• Spanner size: 19 mm
• Sensor Type: NTC Sensor
• Number of pins: 2-pin connector

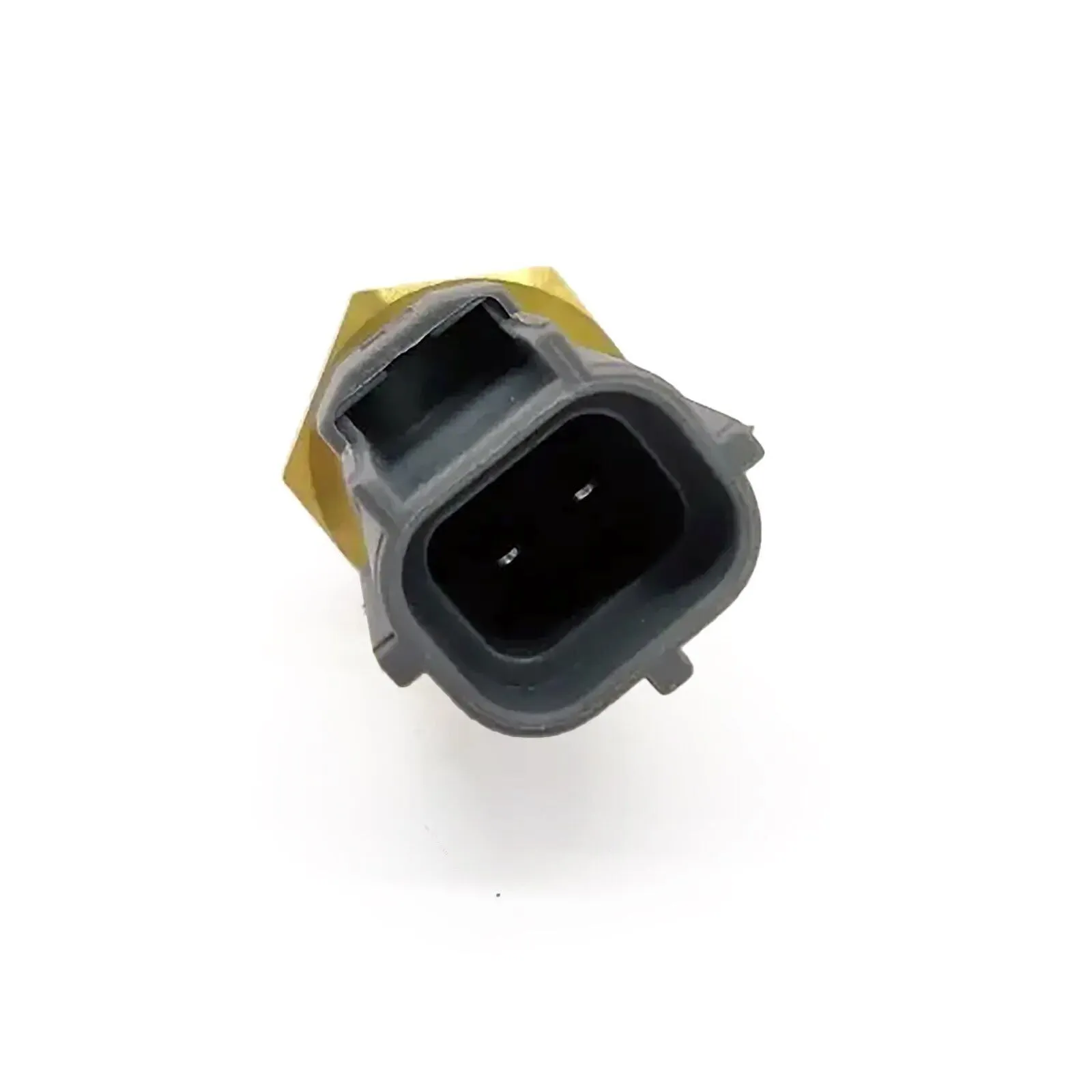

• Connector Shape: oval
• Socket color: Grey
• Connector Shape: Rectangular

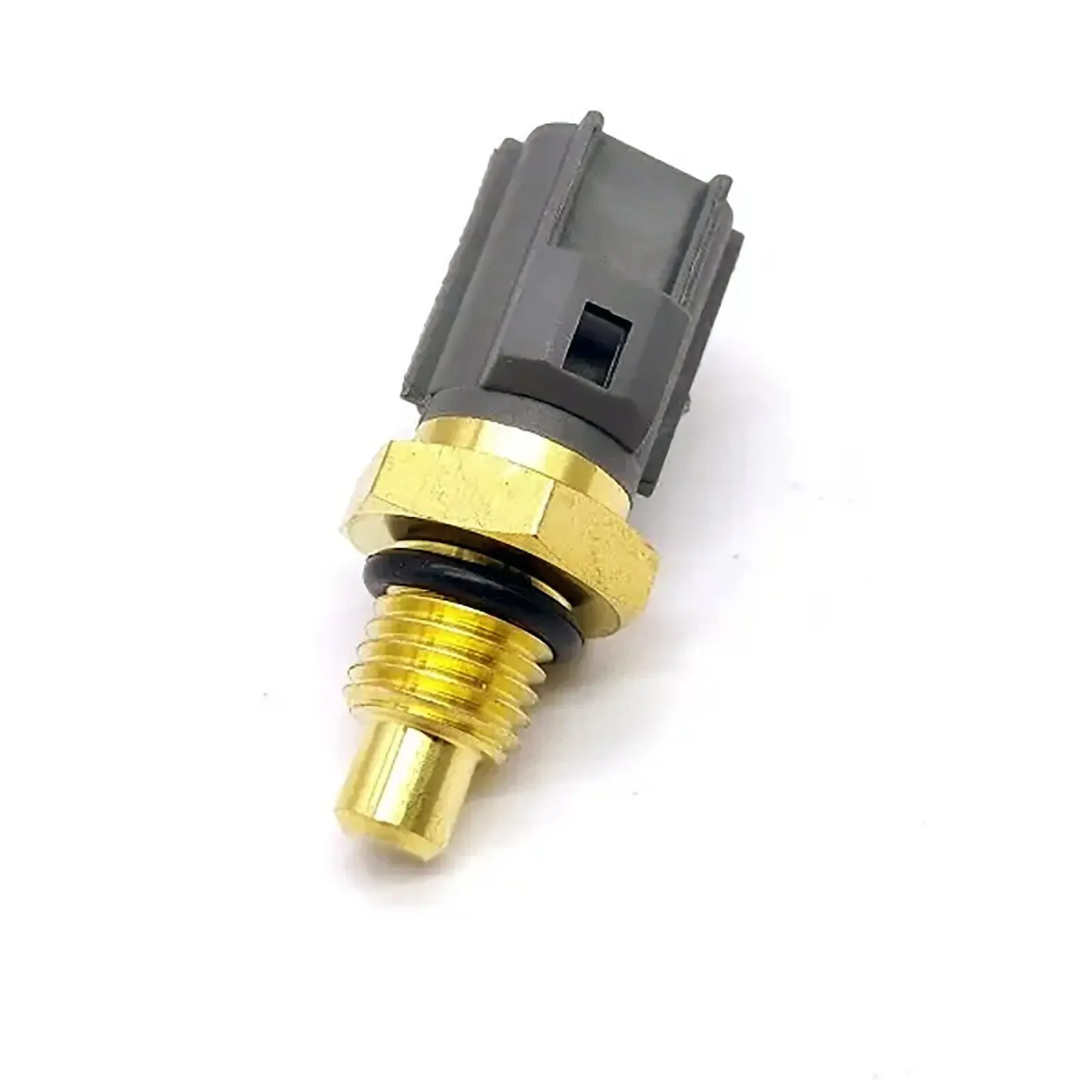

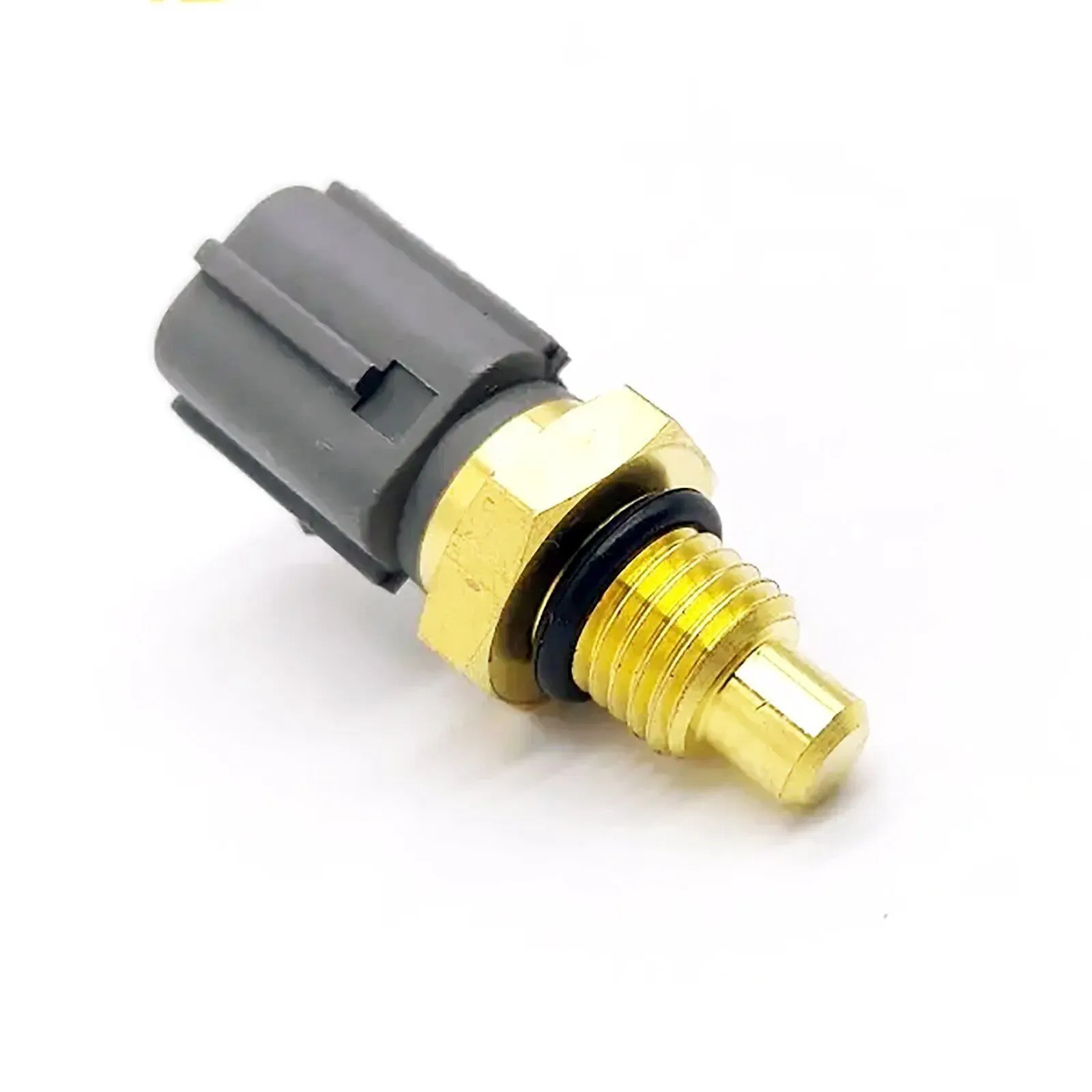

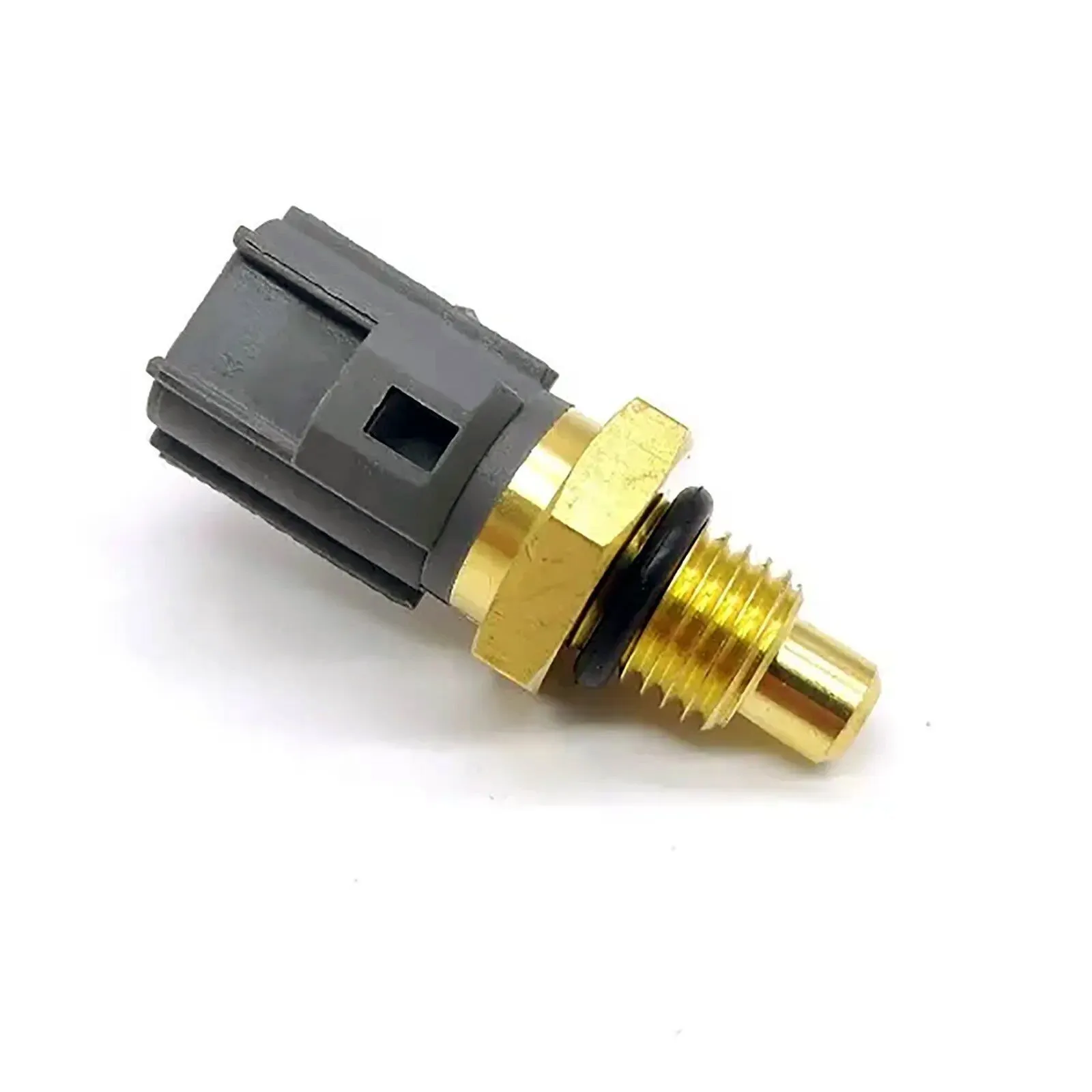

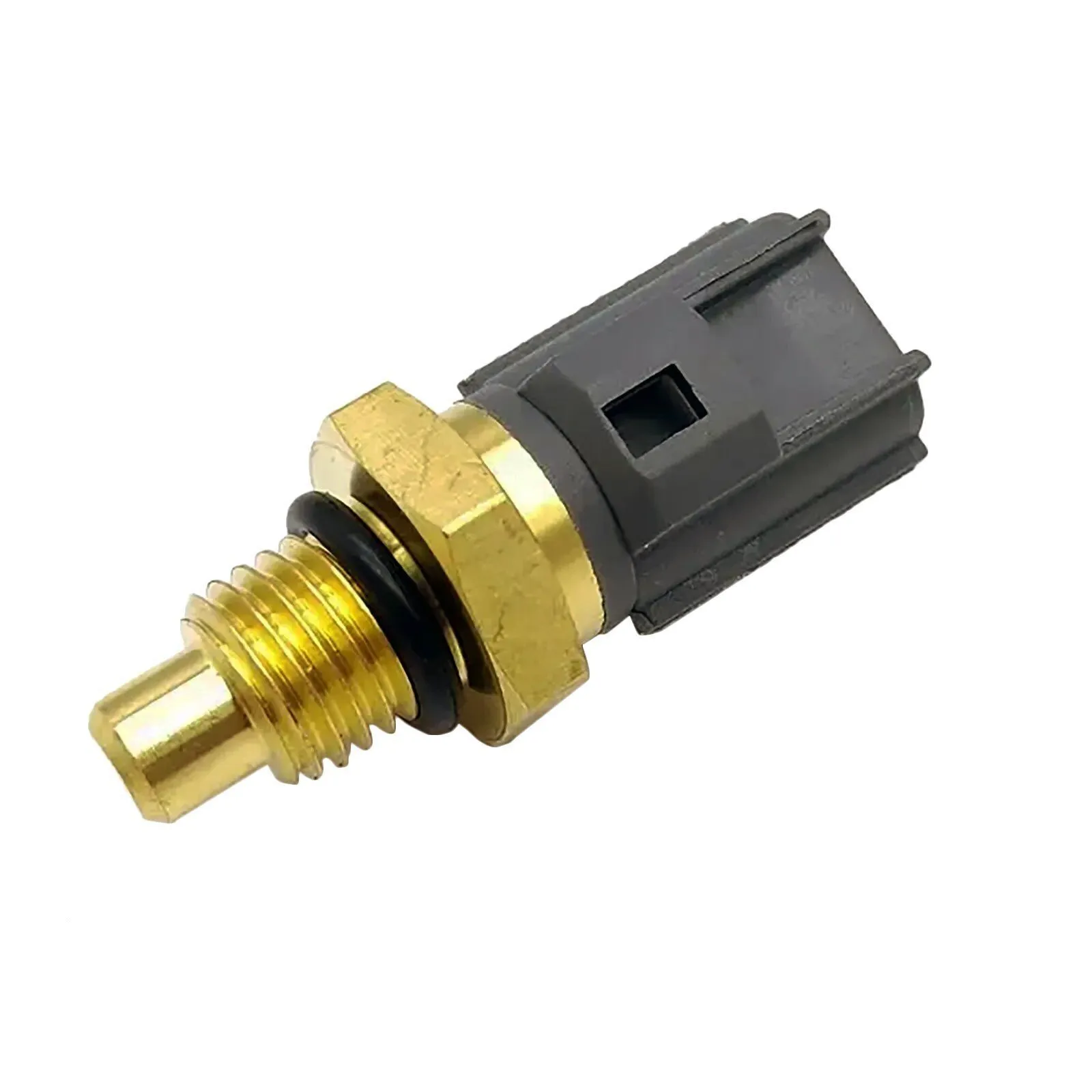

• Supplementary Article Info: with seal ring

Features:

• High Quality
• OEM Fit and Design
• Easy install
• Simple operation
• AU Seller-Fast and Free Shipping

Package Includes:

1* Temperature Sensor (2 PIN PLUG) – 2 Terminal Connector – Send Signal To ECU

The engine coolant temperature sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing.

Common signs of a bad or failing coolant temperature sensor include poor fuel economy, engine overheating black smoke from the engine, and the Check Engine Light turning on.

COMPATIBLE VEHICLE:

ALFA ROMEO SPIDER (916_) 2.0 JTS (916SXA00) 04.2003-04.2005 121kw Convertible
LEXUS LX (UZJ100) 470 (UZJ100) 05.1998-03.2008 170kw SUV

MAZDA 3 (BM, BN) 2.2 D (BM2FS) 02.2014-05.2016 129kw Hatchback
MAZDA 6 Estate (GJ, GL) 2.2 D (GJ2FW, GJ692) 08.2012-02.2018 129kw Estate
MAZDA 6 Saloon (GJ, GL) 2.2 D (GJ2FP) 12.2012- 129kw Saloon
MAZDA CX-3 (DK) 1.5 SKYACTIV-D (DK2WS, DK5FW) 02.2015-01.2018 77kw SUV
MAZDA CX-3 (DK) 1.5 SKYACTIV-D AWD (DK4WS, DK5AW) 02.2015-01.2018 77kw SUV
MAZDA CX-3 (DK) 1.8 SKYACTIV-D (DK4WS) 02.2018- 85kw SUV
MAZDA CX-3 (DK) 1.8 SKYACTIV-D AWD (DK2WS) 02.2018- 85kw SUV
MAZDA CX-5 (KE, GH) 2.2 D AWD (KE102) 04.2012-02.2017 129kw SUV
MAZDA CX-5 (KF) 2.2 D AWD (KF4W2) 05.2017- 129kw SUV
MAZDA CX-5 (KF) 2.2 Skyativ-D AWD (KF4W2) 05.2018- 140kw SUV

TOYOTA COASTER Bus (_B4_, _B5_) 4.2 D (HZB50) 01.1993-10.2003 96kw Bus

TOYOTA HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH203_, KDH221, KDH223) 08.2004- 80kw Bus

TOYOTA HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH223) 05.2010- 100kw Bus

TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200) 06.2004- 75kw Van

TOYOTA HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__) 3.0 D (KDH221, KDH201) 05.2010- 100kw Van

TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) 3.0 D (KUN16) 08.2006-05.2015 126kw Pickup

TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) 3.0 D-4D 4WD (KUN26) 03.2005-05.2015 120kw Pickup

TOYOTA HILUX VII Pickup (_N1_, _N2_, _N3_) 3.0 D-4D 4WD (KUN26) 08.2005-09.2015 126kw Pickup

TOYOTA LAND CRUISER (_J1_) 4.2 TD (HDJ100_, HDJ100) 01.1998-08.2007 150kw Closed Off-Road Vehicle

TOYOTA LAND CRUISER (_J2_) 4.5 D-4D (VDJ200) 01.2012- 200kw Closed Off-Road Vehicle

TOYOTA LAND CRUISER (_J2_) 4.5 D-4D (VDJ200) 09.2007- 195kw Closed Off-Road Vehicle

TOYOTA LAND CRUISER PRADO (_J12_) 3.0 D-4D (KDJ120, KDJ125, KDJ121) 09.2002-12.2010 127kw Closed Off-Road Vehicle

TOYOTA LAND CRUISER PRADO (_J12_) 3.0 D-4D (KZJ12) 09.2002-07.2009 92kw Closed Off-Road Vehicle

TOYOTA LAND CRUISER PRADO (_J15_) 3.0 D-4D (KDJ150_, KDJ150, KDJ155) 08.2009- 127kw Closed Off-Road Vehicle

TOYOTA LAND CRUISER PRADO (_J9_) 3.0 TD (KZJ90, KZJ95) 04.1995-07.2000 103kw Closed Off-Road Vehicle

TOYOTA LAND CRUISER PRADO (_J9_) 3.0 TD (KZJ90_, KZJ95_) 04.1996-12.2002 92kw Closed Off-Road Vehicle

TOYOTA RAV 4 IV (_A4_) 2.2 D 4WD (ALA49) 12.2012- 110kw SUV
