Mercedes C-Class S-Class M-Class R-Class G-Class E-Class Temperature Sensor 0005426218

BRAND NEW *OEM QUALITY* ENGINE COOLANT TEMPERATURE GUAGE SENSOR TO SUIT MERCEDES-BENZ

ALSO WORKS AS AN OIL / FUEL TEMPERATURE SENSOR FOR MANY MERCEDES VEHICLES.

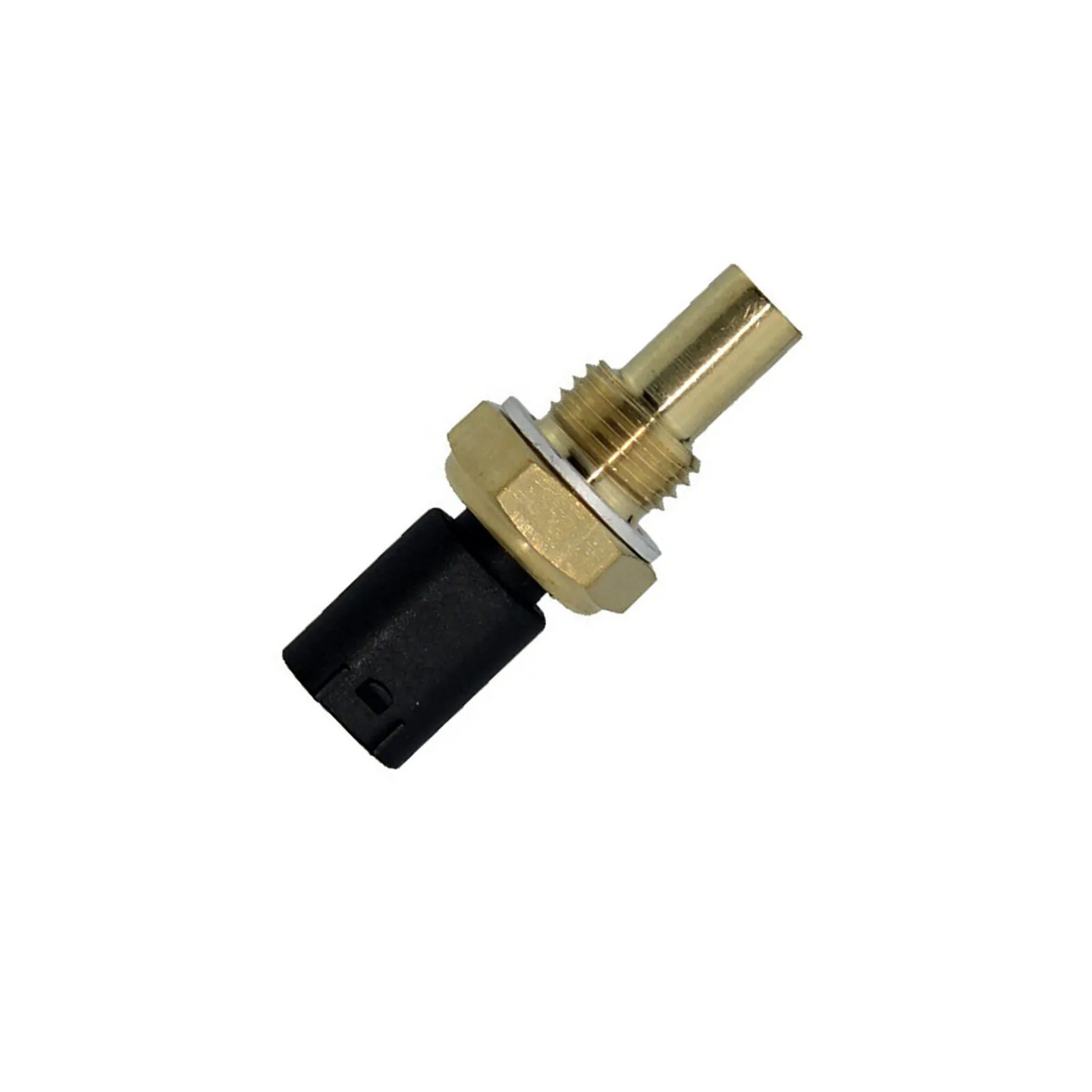

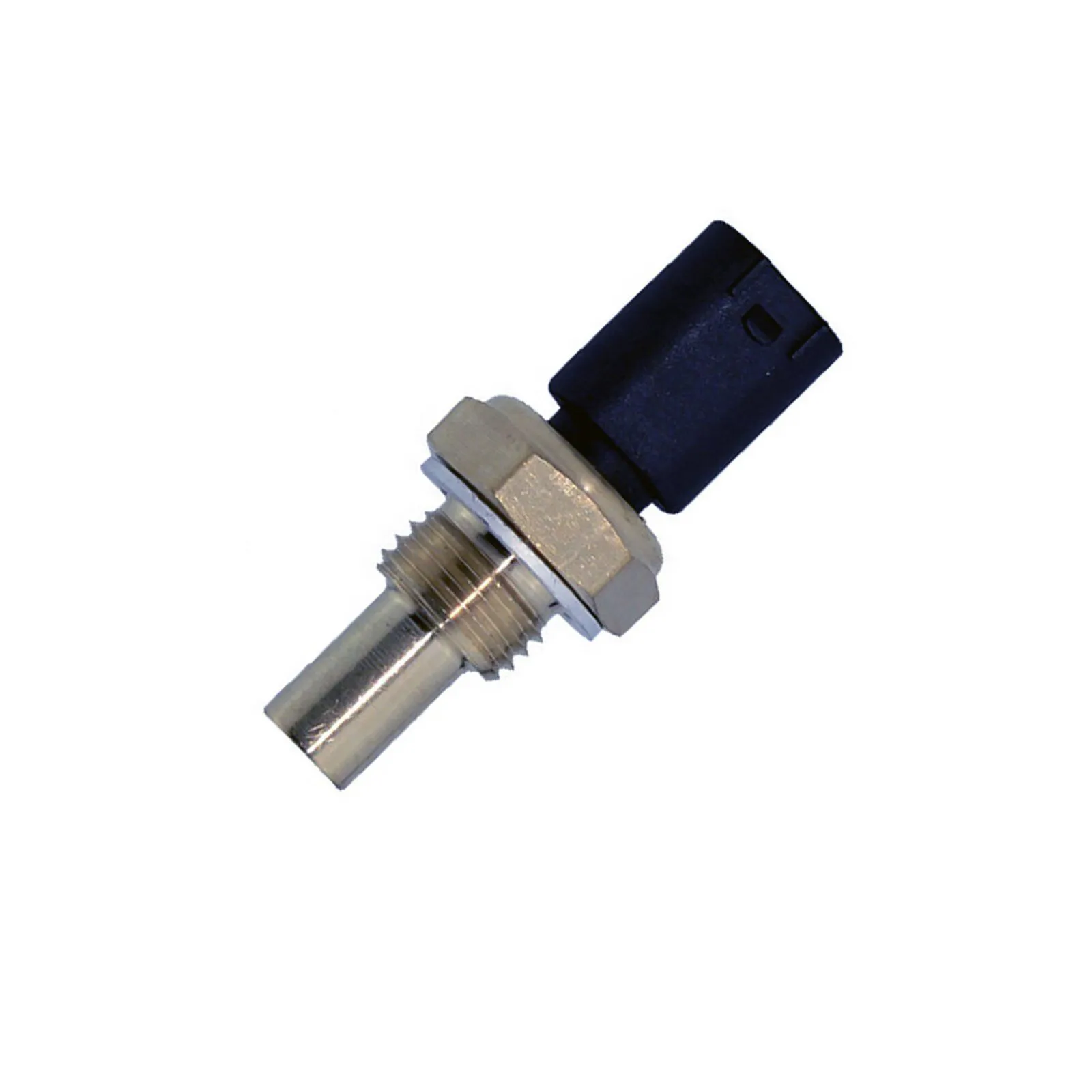

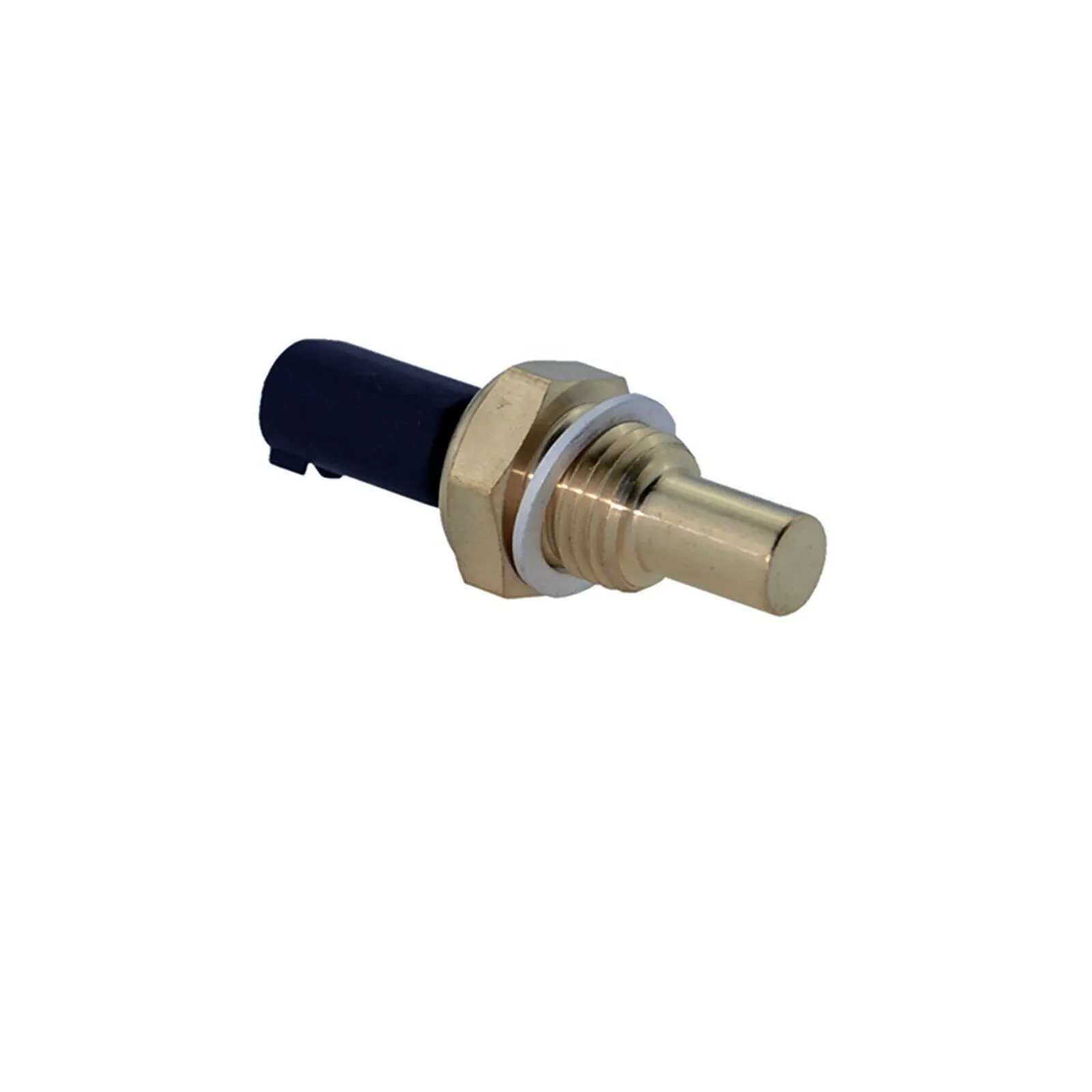

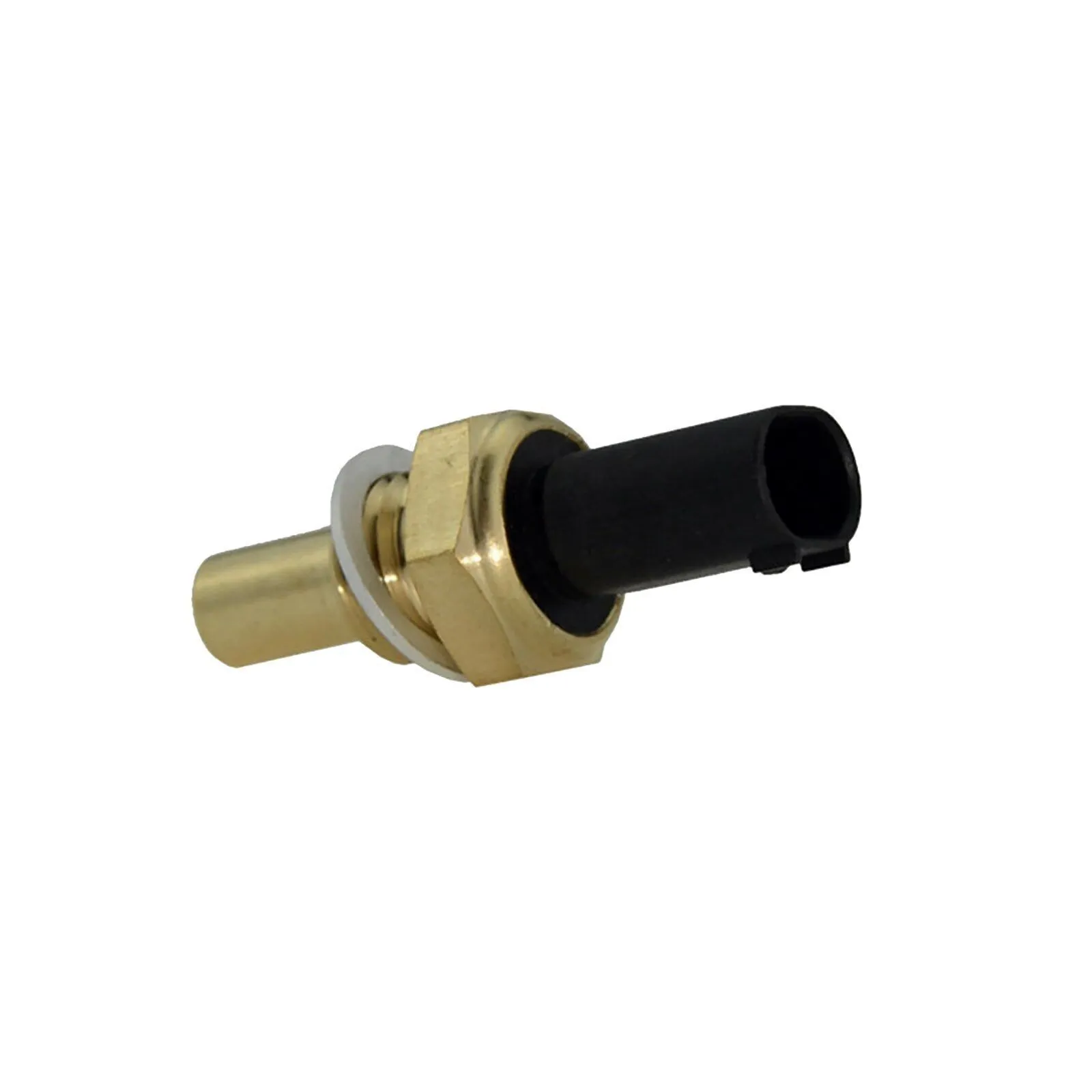

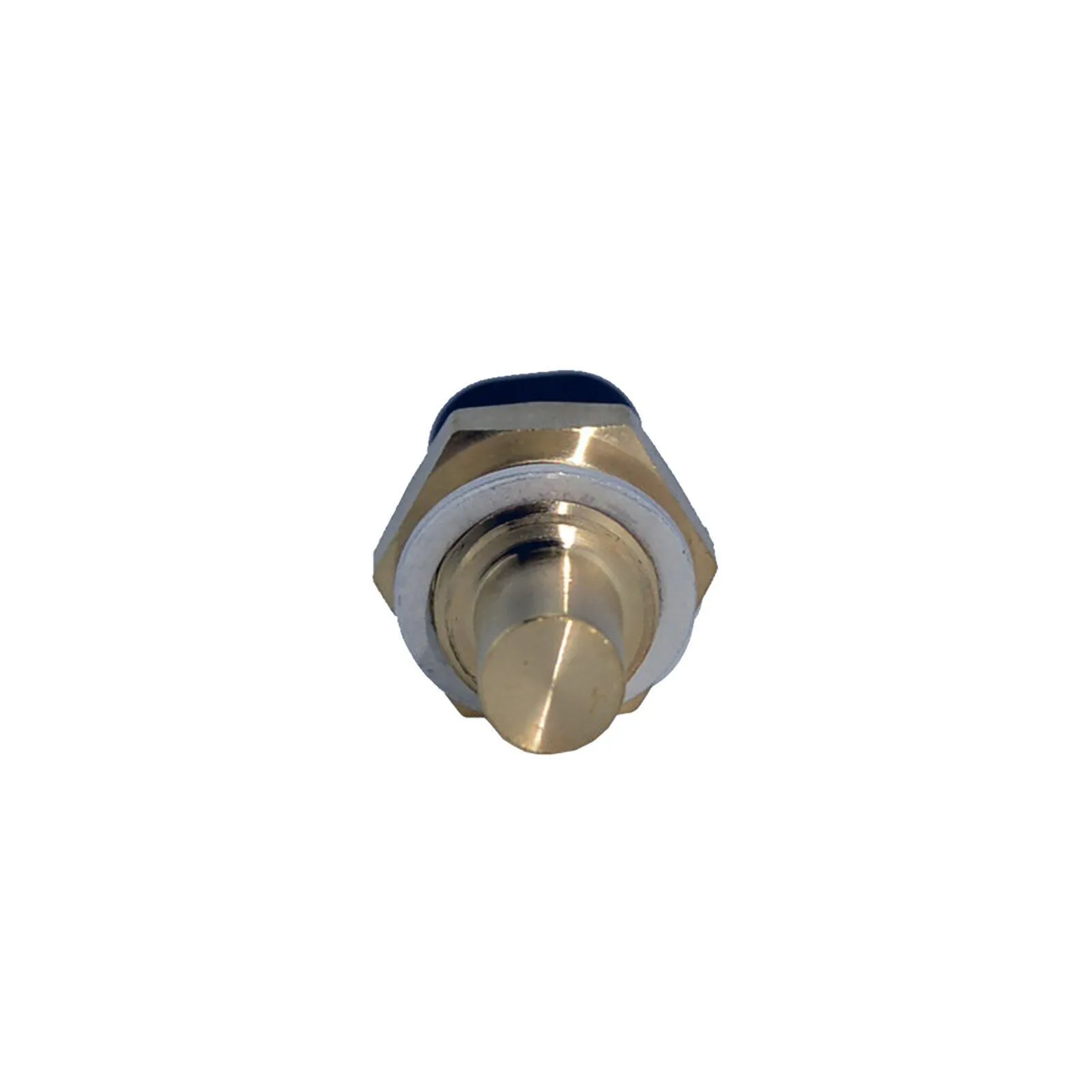

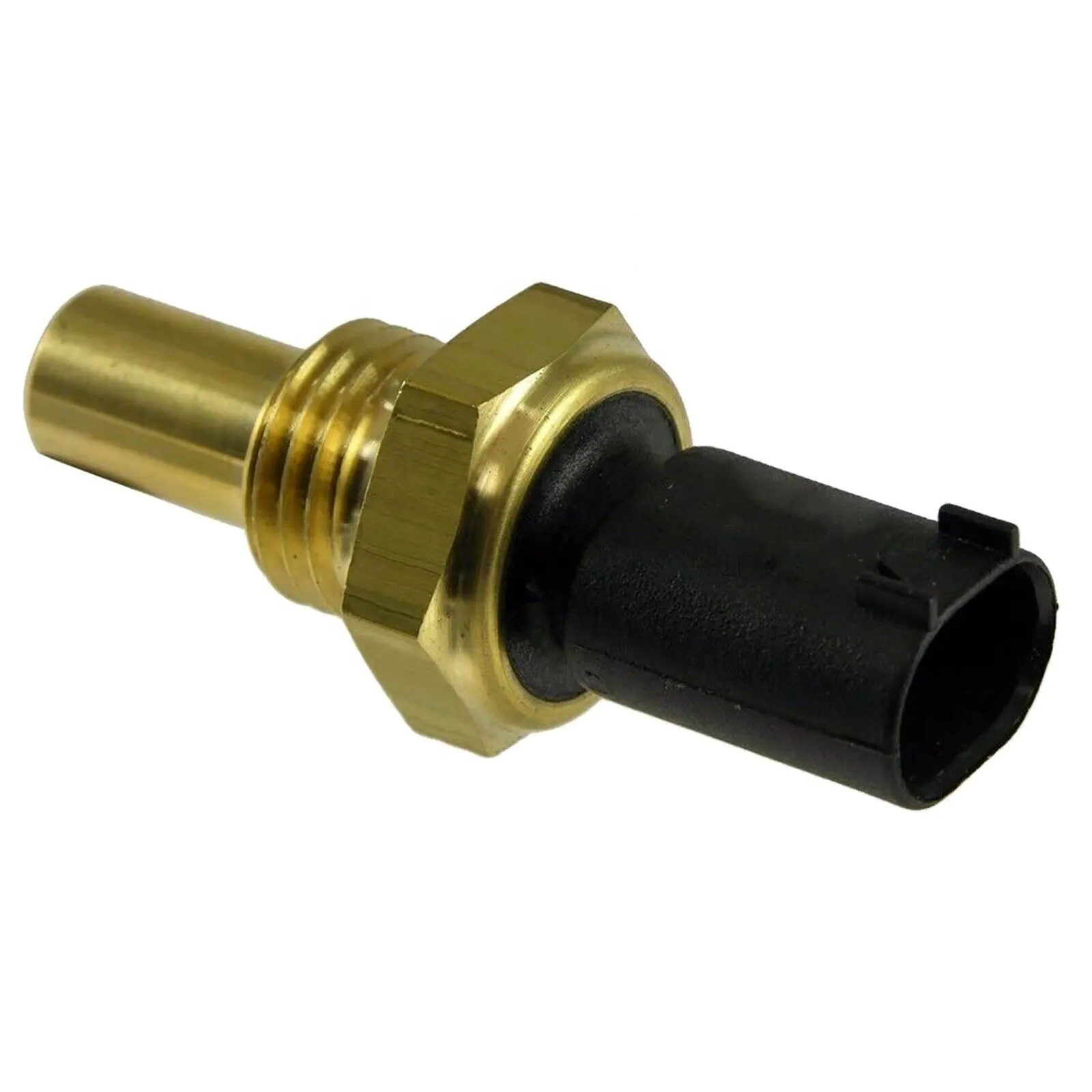

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

MERCEDES C-CLASS S-CLASS M-CLASS R-CLASS G-CLASS E-CLASS, AMG, SPRINTER VAN BUS, VITO VAN

ENGINES M104 M111 M112 M113 M137 M156 M157 M266 M271 M272 M275 OM602 OM611 OM612 OM629 OM640 OM642 OM646 OM647 OM651

AND MORE

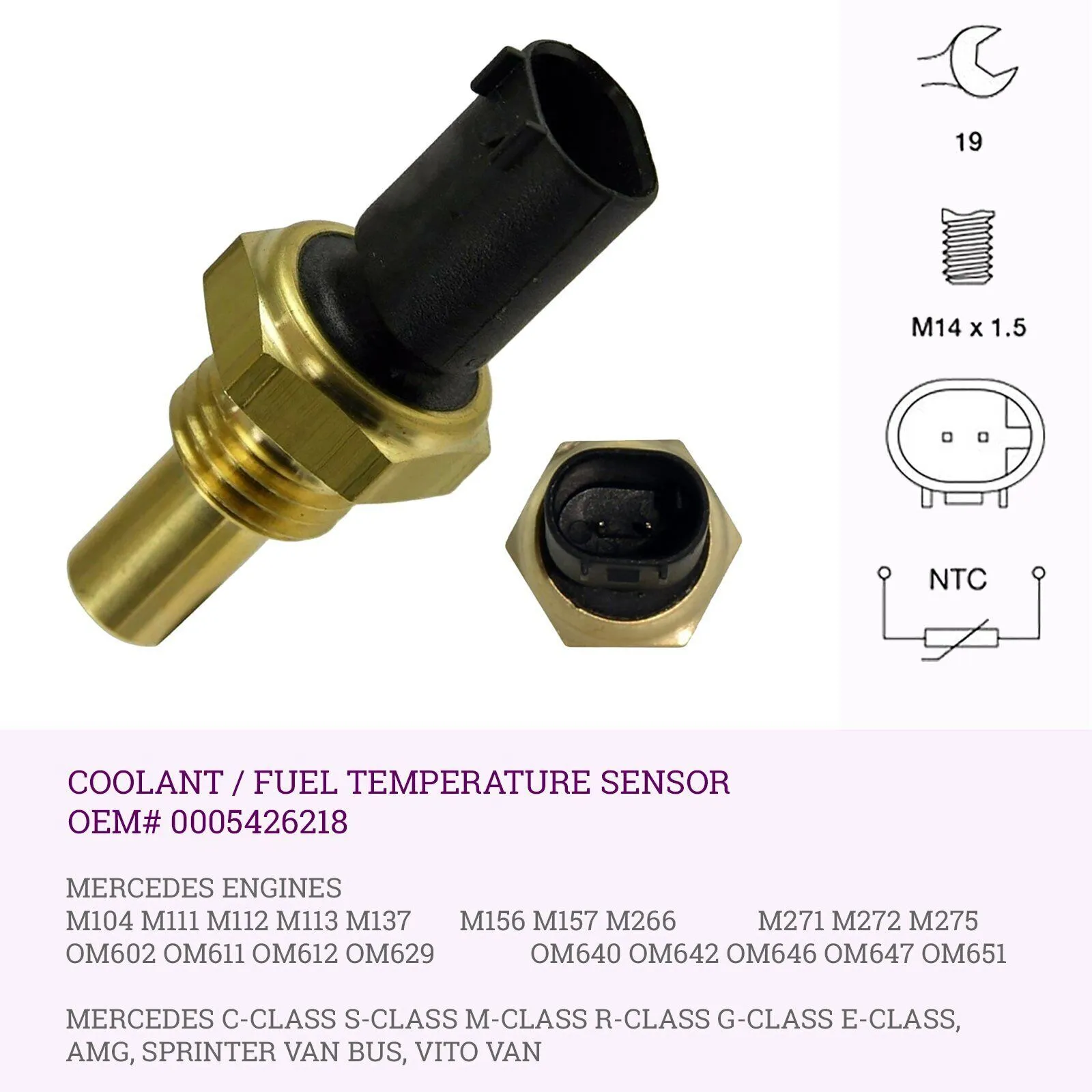

OEM# 0005426218

for OE No: 005 153 23 28
Number of pins: 2 -pin connector

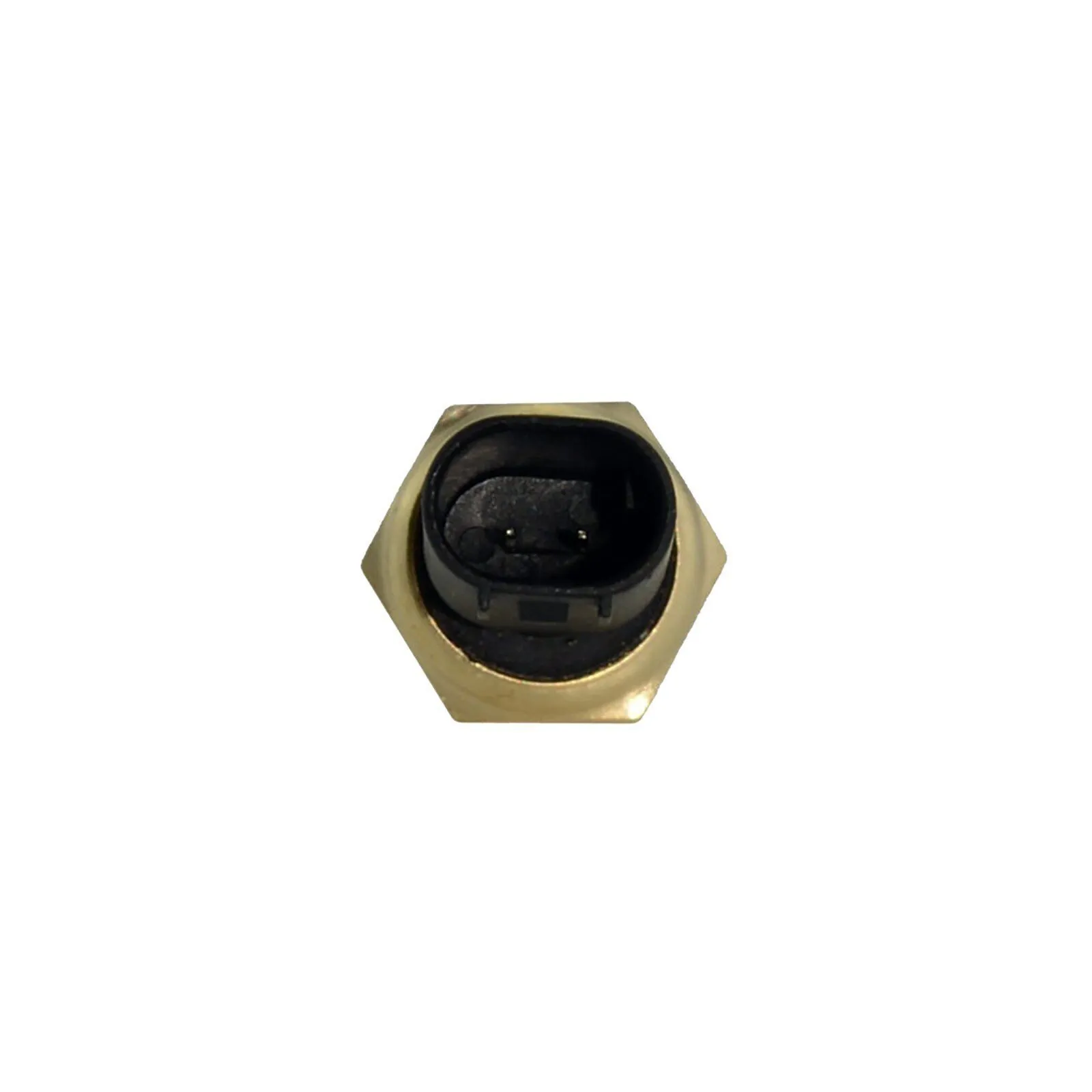

Connector Shape: oval
Socket Color: Black
External Thread: M 14×1.5 mm
Sensor Type: NTC Sensor
Spanner size: 19
Thickness: 51 mm

Features:

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

1* Temperature Sensor (2 PIN PLUG). The engine coolant temperature sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing. Common signs of a bad or failing coolant temperature sensor include poor fuel economy, black smoke coming from the engine, engine overheating, and the Check Engine Light turning on.

COMPATIBLE VEHICLES

M104 ENGINE

[01/95 – 12/97] MERCEDES-AMG C36 W202 3.6L 6cyl M104
[01/92 – 12/93] MERCEDES-BENZ 300SE W140 3.2L 6cyl M104
[01/94 – 12/97] MERCEDES-BENZ C280 W202 2.8L 6cyl M104
[01/95 – 12/98] MERCEDES-BENZ S280 W140 2.8L 6cyl M104
[01/95 – 12/98] MERCEDES-BENZ SL280 R129 2.8L 6cyl M104

M111 ENGINE

[01/01 – 12/02] MERCEDES-BENZ C180 CL203 2.0L 4cyl M111
[01/94 – 12/96] MERCEDES-BENZ C180 W202 1.8L 4cyl M111
[01/95 – 12/00] MERCEDES-BENZ C180 W202 1.8L 4cyl M111
[01/94 – 12/00] MERCEDES-BENZ C180 W202 1.8L 4cyl M111
[01/00 – 12/02] MERCEDES-BENZ C180 W203 2.0L 4cyl M111
[01/01 – 12/02] MERCEDES-BENZ C200 KOMPRESSOR CL203 2.0L 4cyl M111
[01/00 – 12/01] MERCEDES-BENZ C200 KOMPRESSOR S202 2.0L 4cyl M111
[01/01 – 12/02] MERCEDES-BENZ C200 KOMPRESSOR S203 2.0L 4cyl M111
[01/00 – 12/02] MERCEDES-BENZ C200 KOMPRESSOR W203 2.0L 4cyl M111
[01/96 – 12/00] MERCEDES-BENZ C200 S202 2.0L 4cyl M111
[01/95 – 12/00] MERCEDES-BENZ C200 W202 2.0L 4cyl M111
[01/96 – 12/97] MERCEDES-BENZ C230 W202 2.3L 4cyl M111
[01/98 – 12/00] MERCEDES-BENZ CLK200 A208 2.0L 4cyl M111
[01/97 – 12/00] MERCEDES-BENZ CLK200 C208 2.0L 4cyl M111
[01/00 – 12/03] MERCEDES-BENZ CLK200 KOMPRESSOR A208 2.0L 4cyl M111
[01/00 – 12/02] MERCEDES-BENZ CLK200 KOMPRESSOR C208 2.0L 4cyl M111
[01/98 – 12/00] MERCEDES-BENZ CLK230 KOMPRESSOR A208 2.3L 4cyl M111
[01/00 – 12/03] MERCEDES-BENZ CLK230 KOMPRESSOR A208 2.3L 4cyl M111
[01/97 – 12/00] MERCEDES-BENZ CLK230 KOMPRESSOR C208 2.3L 4cyl M111
[01/00 – 12/02] MERCEDES-BENZ CLK230 KOMPRESSOR C208 2.3L 4cyl M111
[01/00 – 12/02] MERCEDES-BENZ E200 KOMPRESSOR W210 2.0L 4cyl M111
[01/96 – 12/96] MERCEDES-BENZ E230 W210 2.3L 4cyl M111
[01/96 – 12/97] MERCEDES-BENZ E230 W210 2.3L 4cyl M111
[01/96 – 12/97] MERCEDES-BENZ E230T S210 2.3L 4cyl M111
[01/00 – 12/04] MERCEDES-BENZ SLK200 KOMPRESSOR R170 2.0L 4cyl M111
[01/97 – 12/00] MERCEDES-BENZ SLK200 R170 2.0L 4cyl M111
[01/97 – 12/00] MERCEDES-BENZ SLK230 KOMPRESSOR R170 2.3L 4cyl M111
[01/00 – 12/04] MERCEDES-BENZ SLK230 KOMPRESSOR R170 2.3L 4cyl M111
[01/98 – 12/04] MERCEDES-BENZ VITO 638 113 2.0L 4cyl M111

M112 ENGINE
[01/99 – 12/03] MERCEDES-BENZ S320 W220 3.2L V6 M112
[01/03 – 12/06] MERCEDES-BENZ SL350 R230 3.7L V6 M112

M113 ENGINE
[01/01 – 12/02] MERCEDES-AMG CL55 C215 5.4L V8 M113
[01/02 – 12/06] MERCEDES-AMG CL55 C215 5.4L V8 M113
[01/03 – 12/06] MERCEDES-AMG S55 W220 5.4L V8 M113
[01/02 – 12/06] MERCEDES-AMG SL55 R230 5.4L V8 M113
[01/00 – 12/03] MERCEDES-BENZ CL500 C215 5.0L V8 M113
[01/03 – 12/06] MERCEDES-BENZ CL500 C215 5.0L V8 M113
[01/99 – 12/03] MERCEDES-BENZ S430 W220 4.3L V8 M113
[01/03 – 12/06] MERCEDES-BENZ S430 W220 4.3L V8 M113
[01/02 – 12/03] MERCEDES-BENZ SL500 R230 5.0L V8 M113
[01/03 – 12/06] MERCEDES-BENZ SL500 R230 5.0L V8 M113

[01/00 – 12/02] MERCEDES-BENZ CL600 C215 5.8L V12 M137

M156 ENGINE
[01/11 – 12/14] MERCEDES-AMG C63 C204 6.2L V8 M156
[01/12 – 12/12] MERCEDES-AMG C63 C204 BLACK SERIES 6.2L V8 M156
[01/13 – 12/15] MERCEDES-AMG C63 C204 EDITION 507 6.2L V8 M156
[01/12 – 12/12] MERCEDES-AMG C63 C204 PERFORMANCE PACKAGE 6.2L V8 M156
[01/08 – 12/14] MERCEDES-AMG C63 S204 6.2L V8 M156
[01/13 – 12/14] MERCEDES-AMG C63 S204 EDITION 507 6.2L V8 M156
[01/08 – 12/14] MERCEDES-AMG C63 W204 6.2L V8 M156
[01/13 – 12/14] MERCEDES-AMG C63 W204 EDITION 507 6.2L V8 M156
[01/10 – 12/13] MERCEDES-AMG C63 W204 PERFORMANCE PACKAGE 6.2L V8 M156
[01/07 – 12/10] MERCEDES-AMG CL63 C216 6.2L V8 M156
[01/06 – 12/09] MERCEDES-AMG CLK63 A209 6.2L V8 M156
[01/06 – 12/09] MERCEDES-AMG CLK63 C209 6.2L V8 M156
[01/08 – 12/08] MERCEDES-AMG CLK63 C209 BLACK SERIES 6.2L V8 M156
[01/06 – 12/11] MERCEDES-AMG CLS63 C219 6.2L V8 M156
[01/06 – 12/09] MERCEDES-AMG E63 S211 6.2L V8 M156
[01/06 – 12/09] MERCEDES-AMG E63 W211 6.2L V8 M156
[01/06 – 12/11] MERCEDES-AMG ML63 W164 6.2L V8 M156
[01/09 – 12/11] MERCEDES-AMG S63 W221 6.2L V8 M156
[01/08 – 12/12] MERCEDES-AMG SL63 R230 6.2L V8 M156

M157 ENGINE
[01/11 – 12/13] MERCEDES-AMG E63 W212 5.5L V8 M157
[01/13 – 12/16] MERCEDES-AMG E63 W212 S 5.5L V8 M157

M266 ENGINE
[01/05 – 12/09] MERCEDES-BENZ A200 W169 2.0L 4cyl M266
[01/05 – 12/10] MERCEDES-BENZ A200 W169 2.0L 4cyl M266
[01/05 – 12/09] MERCEDES-BENZ B200 W245 2.0L 4cyl M266
[01/10 – 12/11] MERCEDES-BENZ B200 W245 2.0L 4cyl M266
[01/05 – 12/11] MERCEDES-BENZ B200 W245 2.0L 4cyl M266

M271 272 275 ENGINE
[01/09 – 12/11] MERCEDES-BENZ SPRINTER 906 316NGT 1.8L 4cyl M271
[01/05 – 12/09] MERCEDES-BENZ E350 W211 3.5L V6 M272
[01/09 – 12/11] MERCEDES-BENZ E350 W212 3.5L V6 M272
[01/02 – 12/06] MERCEDES-BENZ CL600 C215 5.5L V12 M275

OM602 ENGINE
[01/98 – 12/00] MERCEDES-BENZ SPRINTER 903 312D 2.9L 5cyl OM602
[01/99 – 12/00] MERCEDES-BENZ SPRINTER 903 312D 2.9L 5cyl OM602
[01/98 – 12/00] MERCEDES-BENZ SPRINTER 904 412D 2.9L 5cyl OM602

OM611 ENGINE
[01/02 – 12/06] MERCEDES-BENZ SPRINTER 902 208CDI 2.2L 4cyl OM611
[01/01 – 12/06] MERCEDES-BENZ SPRINTER 903 308CDI 2.2L 4cyl OM611
[01/00 – 12/06] MERCEDES-BENZ SPRINTER 903 308CDI 2.2L 4cyl OM611
[01/03 – 12/06] MERCEDES-BENZ SPRINTER 903 308CDI 2.2L 4cyl OM611
[01/05 – 12/06] MERCEDES-BENZ SPRINTER 903 311CDI 2.2L 4cyl OM611
[01/00 – 12/06] MERCEDES-BENZ SPRINTER 903 313CDI 2.2L 4cyl OM611
[01/03 – 12/06] MERCEDES-BENZ SPRINTER 903 313CDI 2.2L 4cyl OM611
[01/04 – 12/06] MERCEDES-BENZ SPRINTER 903 313CDI 2.2L 4cyl OM611
[01/00 – 12/06] MERCEDES-BENZ SPRINTER 904 413CDI 2.2L 4cyl OM611
[01/01 – 12/04] MERCEDES-BENZ VITO 638 112CDI 2.2L 4cyl OM611

OM612 ENGINE
[01/03 – 12/06] MERCEDES-BENZ SPRINTER 903 316CDI 2.7L 5cyl OM612
[01/03 – 12/03] MERCEDES-BENZ SPRINTER 903 316CDI 2.7L 5cyl OM612
[01/02 – 12/06] MERCEDES-BENZ SPRINTER 903 316CDI 2.7L 5cyl OM612
[01/03 – 12/06] MERCEDES-BENZ SPRINTER 904 416CDI 2.7L 5cyl OM612

OM642 640 629 ENGINE
[01/11 – 12/12] MERCEDES-BENZ GL450 CDI X164 4.0L V8 OM629
[01/08 – 12/09] MERCEDES-BENZ A180 CDI W169 2.0L 4cyl OM640
[01/06 – 12/11] MERCEDES-BENZ B180 CDI W245 2.0L 4cyl OM640
[01/07 – 12/09] MERCEDES-BENZ C320 CDI W204 3.0L V6 OM642
[01/09 – 12/11] MERCEDES-BENZ C350 CDI W204 3.0L V6 OM642
[01/11 – 12/14] MERCEDES-BENZ C350 CDI W204 3.0L V6 OM642
[01/11 – 12/13] MERCEDES-BENZ CLS350 CDI C218 3.0L V6 OM642
[01/05 – 12/09] MERCEDES-BENZ E280 CDI W211 3.0L V6 OM642
[01/09 – 12/11] MERCEDES-BENZ E350 CDI W212 3.0L V6 OM642
[01/11 – 12/13] MERCEDES-BENZ E350 CDI W212 3.0L V6 OM642
[01/11 – 12/15] MERCEDES-BENZ G350 W463 G-Wagen BlueTEC 3.0L V6 OM642
[01/15 – 12/18] MERCEDES-BENZ G350d W463 G-Wagen 3.0L V6 OM642
[01/06 – 12/09] MERCEDES-BENZ GL320 CDI X164 3.0L V6 OM642
[01/09 – 12/12] MERCEDES-BENZ GL350 CDI X164 3.0L V6 OM642
[01/12 – 12/15] MERCEDES-BENZ GL350 X166 BlueTEC 3.0L V6 OM642
[01/15 – 12/19] MERCEDES-BENZ GLE350d W166 3.0L V6 OM642
[01/06 – 12/09] MERCEDES-BENZ ML280 CDI W164 3.0L V6 OM642
[01/09 – 12/11] MERCEDES-BENZ ML300 CDI W164 3.0L V6 OM642
[01/05 – 12/09] MERCEDES-BENZ ML320 CDI W164 3.0L V6 OM642
[01/09 – 12/11] MERCEDES-BENZ ML350 CDI W164 3.0L V6 OM642
[01/12 – 12/15] MERCEDES-BENZ ML350 W166 BlueTEC 3.0L V6 OM642
[01/08 – 12/08] MERCEDES-BENZ R280 CDI V251, W251 3.0L V6 OM642
[01/07 – 12/09] MERCEDES-BENZ R280 CDI V251, W251 3.0L V6 OM642
[01/09 – 12/11] MERCEDES-BENZ R300 CDI V251, W251 3.0L V6 OM642
[01/09 – 12/10] MERCEDES-BENZ R300 CDI V251, W251 3.0L V6 OM642
[01/06 – 12/09] MERCEDES-BENZ R320 CDI V251, W251 3.0L V6 OM642
[01/09 – 12/13] MERCEDES-BENZ R350 CDI V251, W251 3.0L V6 OM642
[01/08 – 12/09] MERCEDES-BENZ S320 CDI W221 3.0L V6 OM642
[01/09 – 12/11] MERCEDES-BENZ S350 CDI W221 3.0L V6 OM642
[01/11 – 12/13] MERCEDES-BENZ S350 W221 BlueTEC 3.0L V6 OM642
[01/13 – 12/15] MERCEDES-BENZ S350 W222 BlueTEC 3.0L V6 OM642
[01/15 – 12/16] MERCEDES-BENZ S350d W222 3.0L V6 OM642
[01/16 – 12/17] MERCEDES-BENZ S350d W222 3.0L V6 OM642
[01/15 – 12/16] MERCEDES-BENZ S350dL V222 3.0L V6 OM642
[01/16 – 12/17] MERCEDES-BENZ S350dL V222 3.0L V6 OM642
[01/13 – 12/15] MERCEDES-BENZ S350L V222 BlueTEC 3.0L V6 OM642
[01/06 – 12/09] MERCEDES-BENZ SPRINTER 906 318CDI 3.0L V6 OM642
[01/10 – 12/11] MERCEDES-BENZ SPRINTER 906 319CDI 3.0L V6 OM642
[01/12 – 12/18] MERCEDES-BENZ SPRINTER 906 319CDI 3.0L V6 OM642
[01/08 – 12/09] MERCEDES-BENZ SPRINTER 906 418CDI 3.0L V6 OM642
[01/10 – 12/11] MERCEDES-BENZ SPRINTER 906 419CDI 3.0L V6 OM642
[01/12 – 12/18] MERCEDES-BENZ SPRINTER 906 419CDI 3.0L V6 OM642
[01/06 – 12/09] MERCEDES-BENZ SPRINTER 906 518CDI 3.0L V6 OM642
[01/10 – 12/11] MERCEDES-BENZ SPRINTER 906 519CDI 3.0L V6 OM642
[01/12 – 12/18] MERCEDES-BENZ SPRINTER 906 519CDI 3.0L V6 OM642
[01/10 – 12/15] MERCEDES-BENZ VIANO 639 3.0L V6 OM642
[01/07 – 12/11] MERCEDES-BENZ VITO 639 120CDI 3.0L V6 OM642
[01/11 – 12/15] MERCEDES-BENZ VITO 639 122CDI 3.0L V6 OM642

OM646 ENGINE
[01/08 – 12/09] MERCEDES-BENZ C220 CDI S204 2.1L 4cyl OM646
[01/07 – 12/09] MERCEDES-BENZ C220 CDI W204 2.1L 4cyl OM646
[01/08 – 12/09] MERCEDES-BENZ SPRINTER 906 215CDI 2.1L 4cyl OM646
[01/06 – 12/09] MERCEDES-BENZ SPRINTER 906 309CDI 2.1L 4cyl OM646
[01/06 – 12/09] MERCEDES-BENZ SPRINTER 906 311CDI 2.1L 4cyl OM646
[01/06 – 12/09] MERCEDES-BENZ SPRINTER 906 315CDI 2.1L 4cyl OM646
[01/08 – 12/09] MERCEDES-BENZ SPRINTER 906 415CDI 2.1L 4cyl OM646
[01/06 – 12/09] MERCEDES-BENZ SPRINTER 906 515CDI 2.1L 4cyl OM646
[01/05 – 12/11] MERCEDES-BENZ VIANO 639 2.1L 4cyl OM646
[01/04 – 12/06] MERCEDES-BENZ VITO 639 109CDI 2.1L 4cyl OM646
[01/06 – 12/11] MERCEDES-BENZ VITO 639 109CDI 2.1L 4cyl OM646
[01/08 – 12/11] MERCEDES-BENZ VITO 639 111CDI 2.1L 4cyl OM646
[01/04 – 12/11] MERCEDES-BENZ VITO 639 115CDI 2.1L 4cyl OM646
[01/04 – 12/06] MERCEDES-BENZ VITO 639 115CDI 2.1L 4cyl OM646
[01/04 – 12/05] MERCEDES-BENZ VITO 639 115CDI 2.1L 4cyl OM646

[01/02 – 12/05] MERCEDES-BENZ E270 CDI W211 2.7L 5cyl OM647

OM651 ENGINE
[01/10 – 12/11] MERCEDES-BENZ C220 CDI S204 2.1L 4cyl OM651
[01/10 – 12/11] MERCEDES-BENZ C220 CDI W204 2.1L 4cyl OM651
[01/11 – 12/15] MERCEDES-BENZ C250 CDI C204 2.1L 4cyl OM651
[01/11 – 12/14] MERCEDES-BENZ C250 CDI S204 2.1L 4cyl OM651
[01/11 – 12/14] MERCEDES-BENZ C250 CDI W204 2.1L 4cyl OM651
[01/10 – 12/11] MERCEDES-BENZ E250 CDI A207 2.1L 4cyl OM651
[01/11 – 12/13] MERCEDES-BENZ E250 CDI A207 2.1L 4cyl OM651
[01/09 – 12/11] MERCEDES-BENZ E250 CDI C207 2.1L 4cyl OM651
[01/11 – 12/15] MERCEDES-BENZ E250 CDI C207 2.1L 4cyl OM651
[01/13 – 12/18] MERCEDES-BENZ SPRINTER 906 310CDI 2.1L 4cyl OM651
[01/10 – 12/11] MERCEDES-BENZ SPRINTER 906 313CDI 2.1L 4cyl OM651
[01/10 – 12/18] MERCEDES-BENZ SPRINTER 906 313CDI 2.1L 4cyl OM651
[01/12 – 12/18] MERCEDES-BENZ SPRINTER 906 313CDI 2.1L 4cyl OM651
[01/16 – 12/18] MERCEDES-BENZ SPRINTER 906 313CDI TRANSFER 2.1L 4cyl OM651
[01/10 – 12/18] MERCEDES-BENZ SPRINTER 906 316CDI 2.1L 4cyl OM651
[01/10 – 12/11] MERCEDES-BENZ SPRINTER 906 316CDI 2.1L 4cyl OM651
[01/12 – 12/18] MERCEDES-BENZ SPRINTER 906 316CDI 2.1L 4cyl OM651
[01/10 – 12/11] MERCEDES-BENZ SPRINTER 906 316CDI TRANSFER 2.1L 4cyl OM651
[01/12 – 12/18] MERCEDES-BENZ SPRINTER 906 316CDI TRANSFER 2.1L 4cyl OM651
[01/10 – 12/11] MERCEDES-BENZ SPRINTER 906 416CDI 2.1L 4cyl OM651
[01/10 – 12/18] MERCEDES-BENZ SPRINTER 906 416CDI 2.1L 4cyl OM651
[01/12 – 12/18] MERCEDES-BENZ SPRINTER 906 416CDI 2.1L 4cyl OM651
[01/13 – 12/18] MERCEDES-BENZ SPRINTER 906 513CDI 2.1L 4cyl OM651
[01/10 – 12/18] MERCEDES-BENZ SPRINTER 906 516CDI 2.1L 4cyl OM651
[01/10 – 12/11] MERCEDES-BENZ SPRINTER 906 516CDI 2.1L 4cyl OM651
[01/12 – 12/18] MERCEDES-BENZ SPRINTER 906 516CDI 2.1L 4cyl OM651

ABOUT YOUR VEHICLE’S ENGINE COOLANT TEMPERATURE SENSOR

What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.

Where are these sensors located?
The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.

Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.

What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 low input, or P0118 for high input. The coolant temperature sensor temperature reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.

SKU	CCS83-3
Brand:	Aftermarket OEM Replacement
Part Number:	0005426218
Reference OEM Number:	0005426218
Other OEM Numbers:	0005426218, 0051532328, 0051536328
Related Part Numbers:	CCS83, CS904, TCS177, TS-604
Unit Of Measure	ea
