BRAND NEW *OEM QUALITY* INTAKE AIR TEMPERATURE SENSOR TO SUIT HYUNDAI / KIA

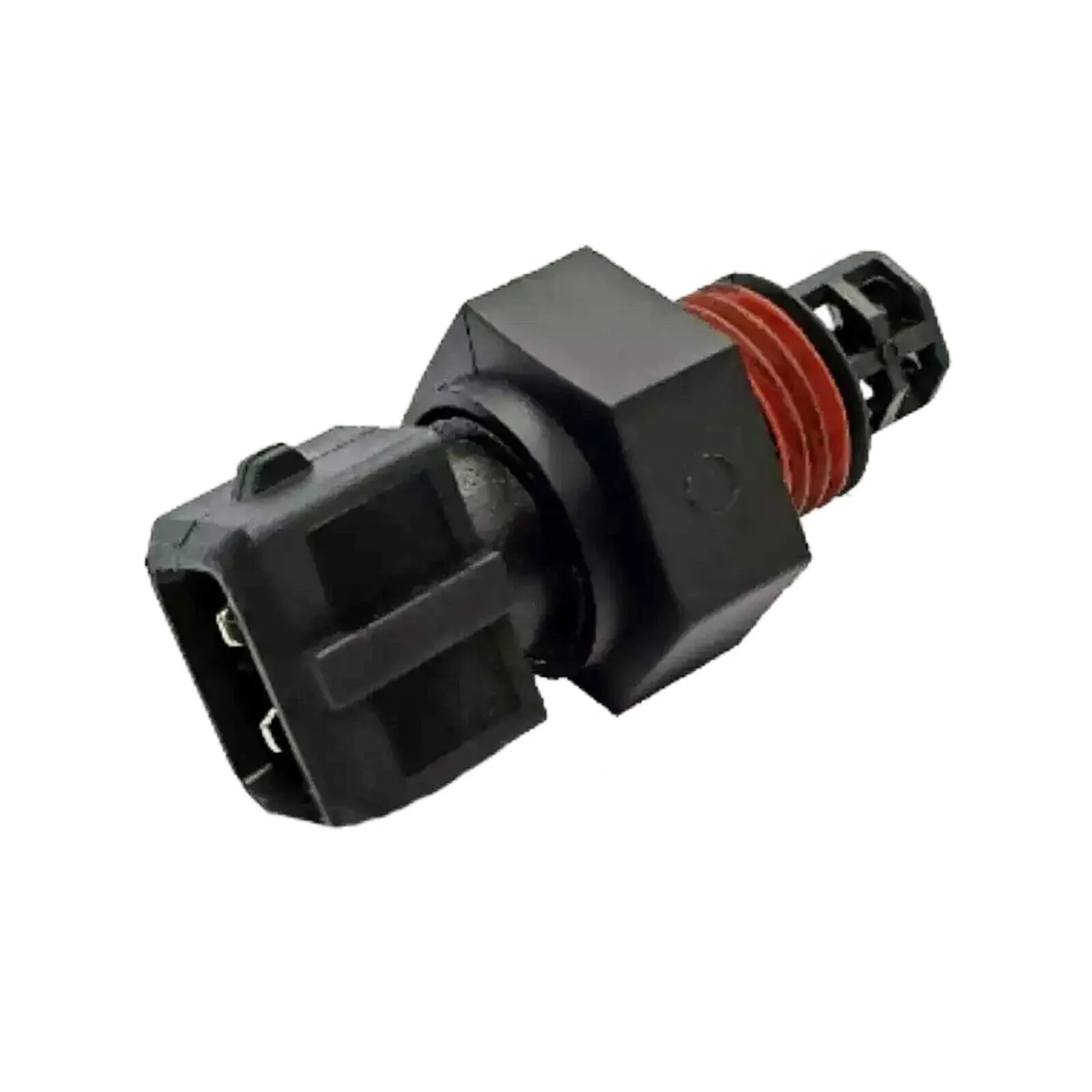

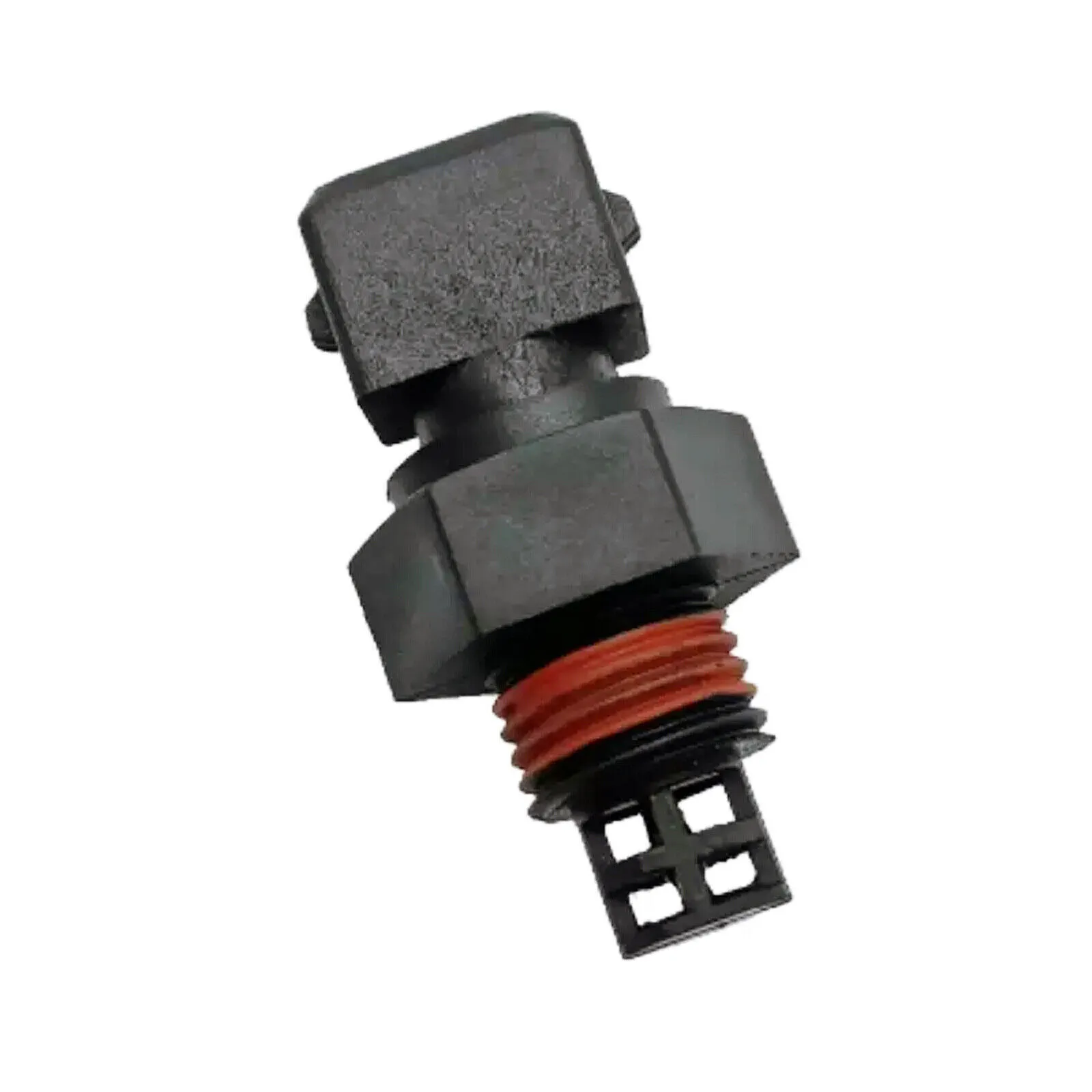

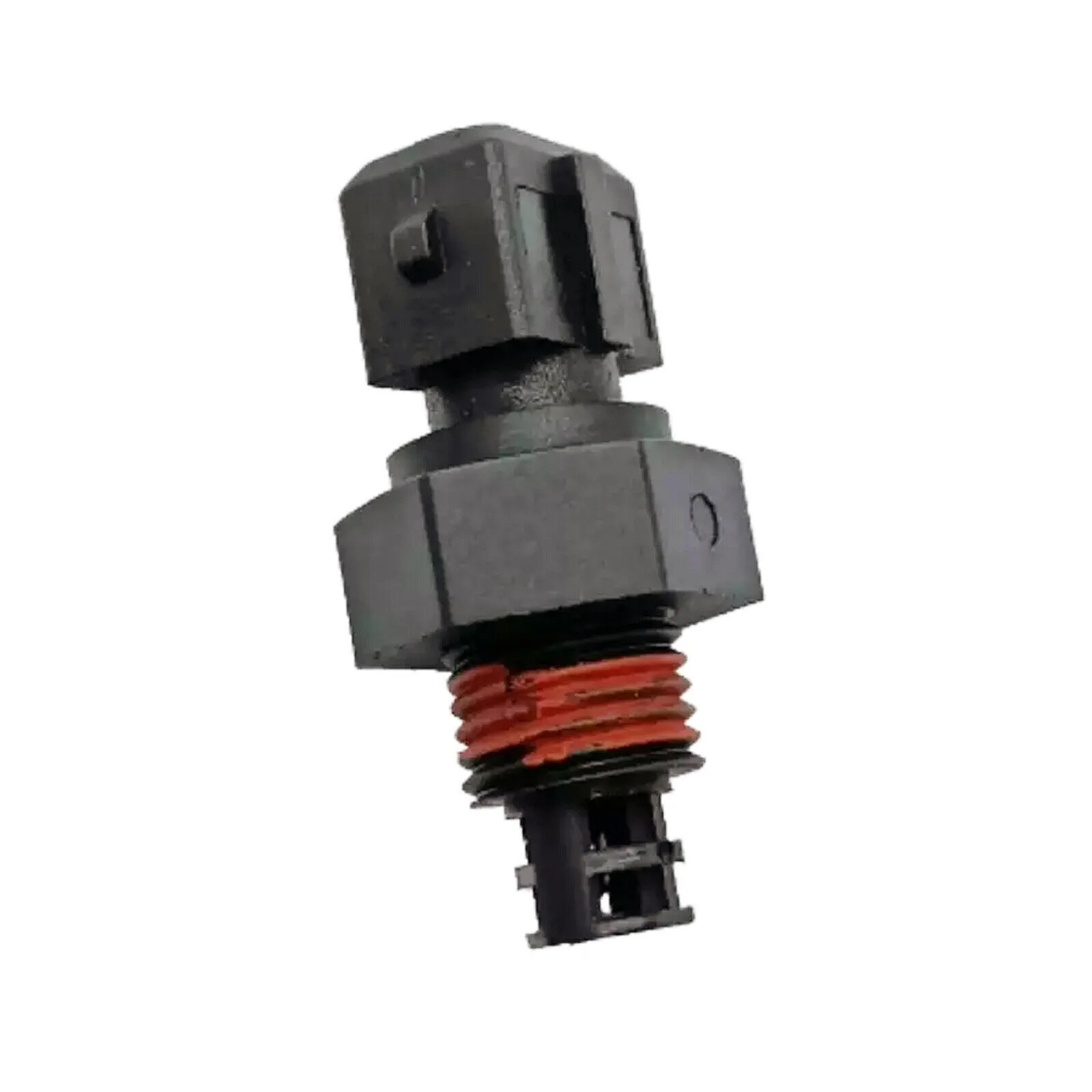

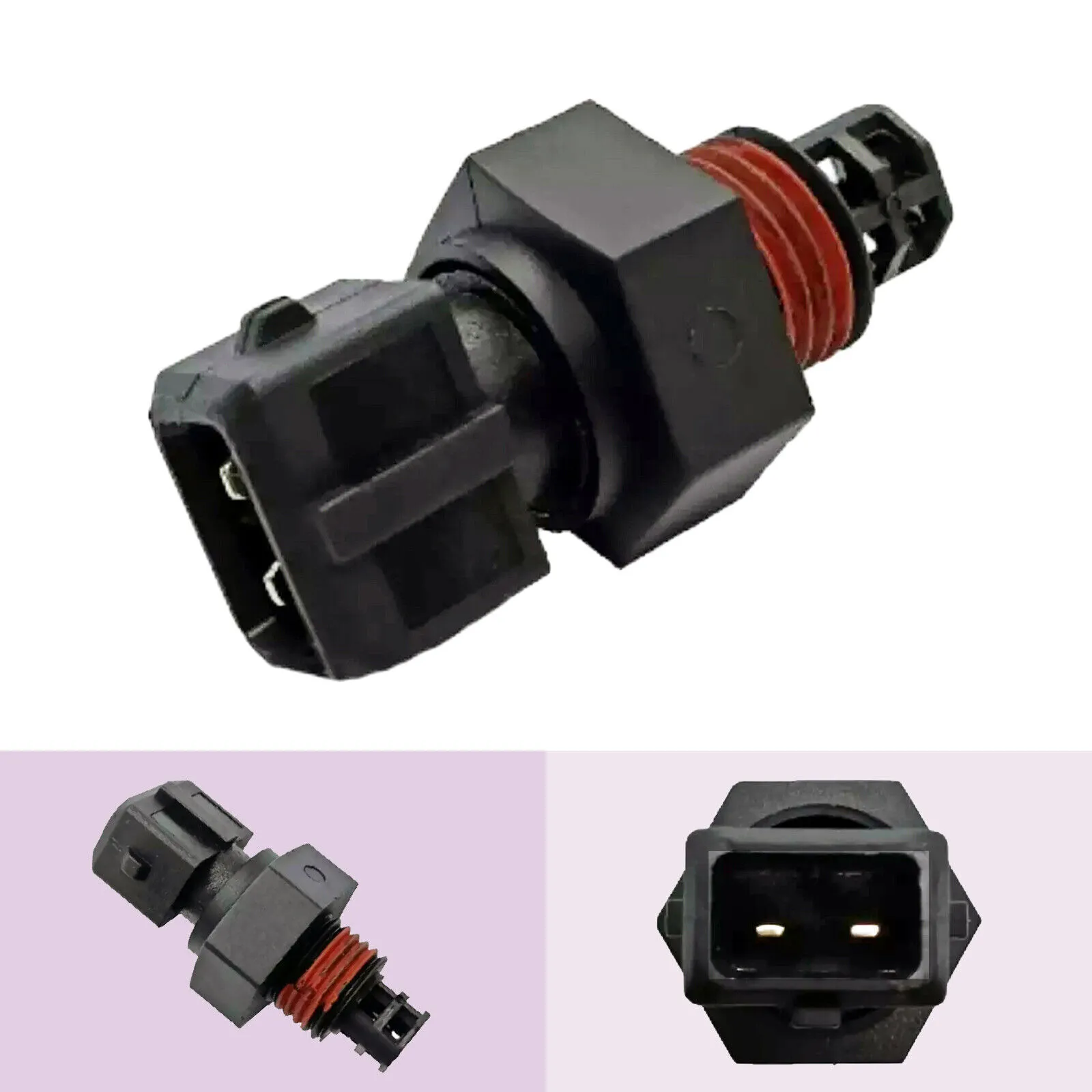

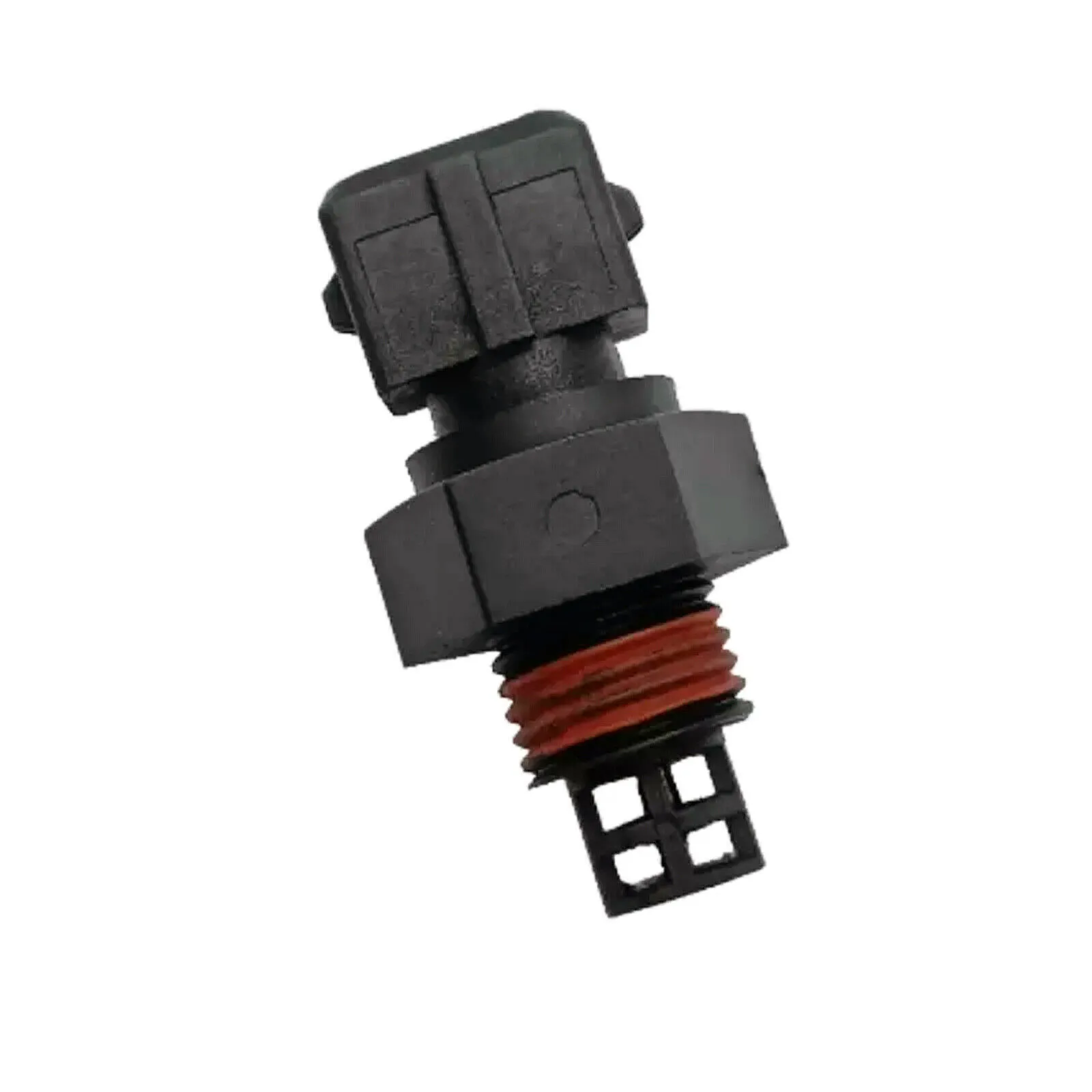

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

OEM# 39340-37100

• for OE No: 39340-26010
• Thread Size: M14x1.5 mm
• Spanner size: 21
• Sensor Type: NTC Sensor

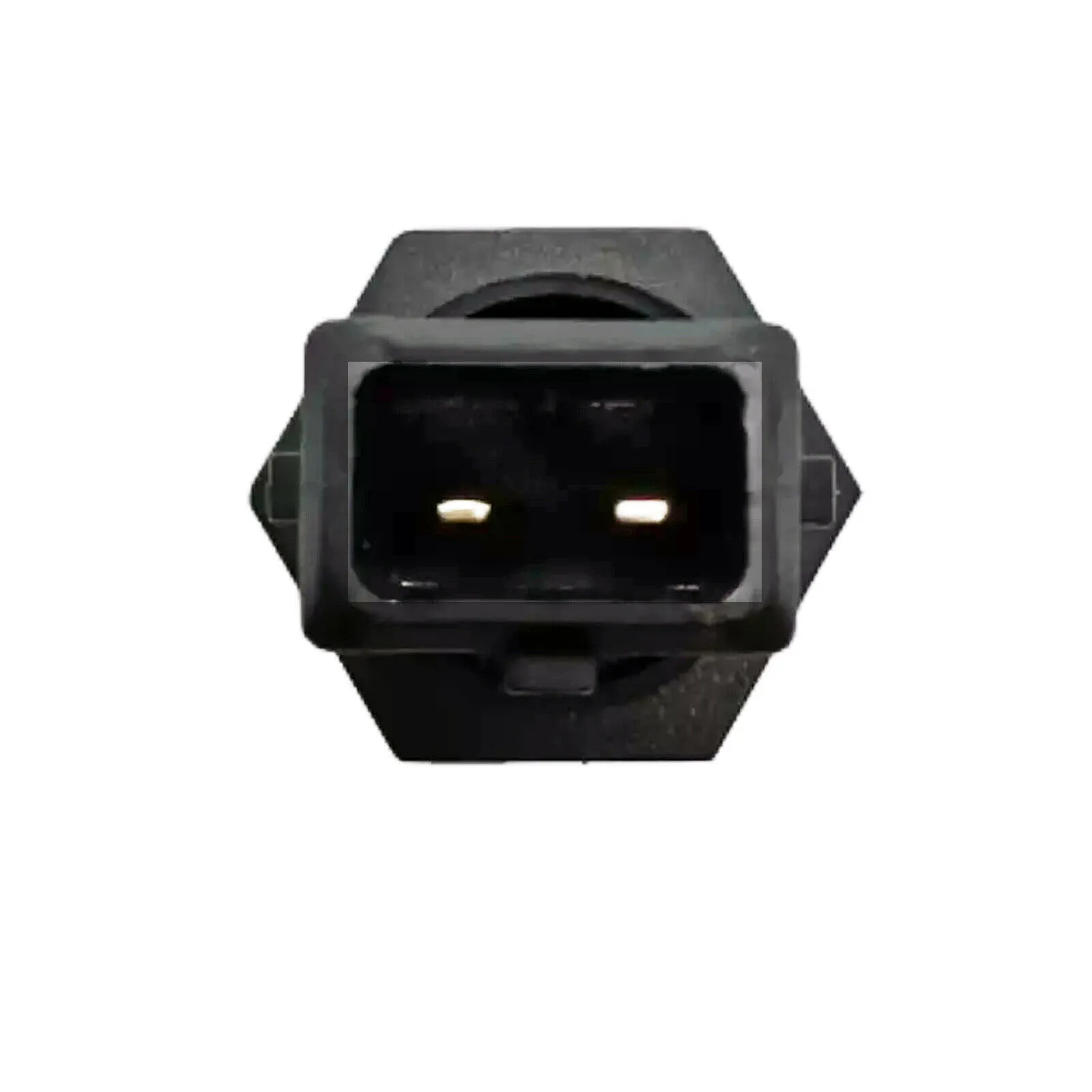

• Number of pins: 2 -pin connector
• Connector Shape: Rectangular
• Socket Color: Black

Features:

• High Quality
• OEM Fit and Design
• Easy install
• Simple operation
• AU Seller-Fast and Free Shipping

Package Includes:

Intake Air Temperature is a significant component for the installation of a MAF-less air intake setup. This sensor monitors the temperature of the air entering the engine, which helps the engine’s computer (PCM) maintain the balance of air/fuel mixture for optimal engine performance. A faulty sensor can decrease the life of the engine and reduce the efficiency of fuel consumption.

COMPATIBLE VEHICLES

[01/99 – 12/04] DAEWOO MATIZ 11BE 0.8L 3cyl F8CV 58kW
[01/02 – 12/04] DAEWOO MATIZ 11BT 0.8L 3cyl F8CV 58kW
[01/00 – 12/01] DAEWOO MATIZ 11BT 0.8L 3cyl F8CV 58kW

[01/94 – 12/96] FORD FESTIVA WB 1.3L 4cyl B3
[01/97 – 12/97] FORD FESTIVA WD 1.3L 4cyl B3
[01/97 – 12/97] FORD FESTIVA WD 1.5L 4cyl B5
[01/98 – 12/00] FORD FESTIVA WF 1.3L 4cyl B3
[01/98 – 12/98] FORD FESTIVA WF 1.3L 4cyl B3
[01/98 – 12/00] FORD FESTIVA WF 1.5L 4cyl B5

[01/91 – 12/94] HYUNDAI EXCEL X2 1.5L 4cyl G4DJ 62kW
[01/90 – 12/94] HYUNDAI EXCEL X2 1.5L 4cyl G4DJ 62kW
[01/94 – 12/98] HYUNDAI EXCEL X3 1.5L 4cyl G4EK 65kW
[01/98 – 12/00] HYUNDAI EXCEL X3 1.5L 4cyl G4FK 74kW
[01/12 – 12/21] HYUNDAI ILOAD TQ-V 2.5L 4cyl D4CB 100kW
[01/12 – 12/18] HYUNDAI IMAX TQ-W 2.5L 4cyl D4CB 100kW
[01/10 – 12/15] HYUNDAI IX35 LM 2.0L 4cyl D4HA 135kW
[01/90 – 12/91] HYUNDAI S COUPE 1J 1.5L 4cyl G4DJ 60kW
[11/09 – 12/12] HYUNDAI SANTA FE CM 2.2L 4cyl D4HB 145kW
[01/00 – 12/06] HYUNDAI SANTA FE SM 2.7L V6 G6EA 132kW
[01/98 – 12/00] HYUNDAI SONATA EF 2.0L 4cyl G4JP 103kW
[01/98 – 12/01] HYUNDAI SONATA EF 2.5L V6 G6BV 127kW
[01/01 – 12/05] HYUNDAI SONATA EF 2.7L V6 G6BA 132kW
[01/02 – 12/10] HYUNDAI TIBURON GK 2.7L V6 G6BA 127kW
[01/00 – 12/08] HYUNDAI TRAJET FO 2.7L V6 G6BA 132kW
[01/04 – 12/10] HYUNDAI TUCSON JN 2.7L V6 G6BA 129kW

[01/00 – 12/02] KIA CARENS FC 1.8L 4cyl TB
[01/99 – 12/06] KIA CARNIVAL KV 2.5L V6 KV6
[01/14 – 12/18] KIA CARNIVAL YP 2.2L 4cyl D4HB 147kW
[01/97 – 12/98] KIA MENTOR FA 1.5L 4cyl B5
[01/98 – 12/00] KIA MENTOR FB 1.5L 4cyl BF
[01/98 – 12/00] KIA MENTOR FB 1.8L 4cyl TE
[01/01 – 12/03] KIA OPTIMA GD 2.5L V6 G6BV 127kW
[01/04 – 12/06] KIA OPTIMA GD 2.7L V6 G6BA 132kW
[01/00 – 12/01] KIA SHUMA FB 1.8L 4cyl TE
[01/09 – 12/14] KIA SORENTO XM 2.2L 4cyl D4HB 145kW
[01/01 – 12/04] KIA SPECTRA FB 1.8L 4cyl TE
[01/97 – 12/03] KIA SPORTAGE JA 2.0L 4cyl FE
[01/05 – 12/08] KIA SPORTAGE KM 2.7L V6 G6BA 132kW
[01/10 – 12/13] KIA SPORTAGE SL 2.0L 4cyl D4HA 136kW

ABOUT YOUR VEHICLE’S INTAKE AIR TEMPERATURE SENSOR

What does an Air Charge/Manifold Temperature Sensor do?
The Air Charge/Manifold Temperature sensor is used by the computer to measure air density for fuel mixture control. The computer uses this information to trim the air/fuel ratio according to the air density.

Where are the Air Charge/Manifold Temperature Sensors located?
They are located either in the intake air tubing or intake manifold and may be incorporated into the MAF sensor.

Will a malfunctioning Air Charge/Manifold Temperature Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL and may cause the engine to run rich or lean as a result a failed sensor may idle poorly, especially when cold.

What are the common causes of failure?
Typically these sensors fail due to exposure to the underhood heat from engine operation. Collecting debris on the sensor element may also cause it to operate improperly.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0112 for low input or P0113 for high input. The air charge/manifold sensor temperature reading should closely match the engine coolant temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

What makes OUR/ Standard Air Charge/Manifold Temperature Sensors the best?

• As basic manufacturer, Standard has complete control of the manufacturing process from componentry to finished product
• Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
• All Air Charge/Manifold Temperature sensors are 100% factory-tested to ensure trouble-free performance
