BRAND NEW *OEM QUALITY* THROTTLE POSITION SENSOR TO SUIT HOLDEN

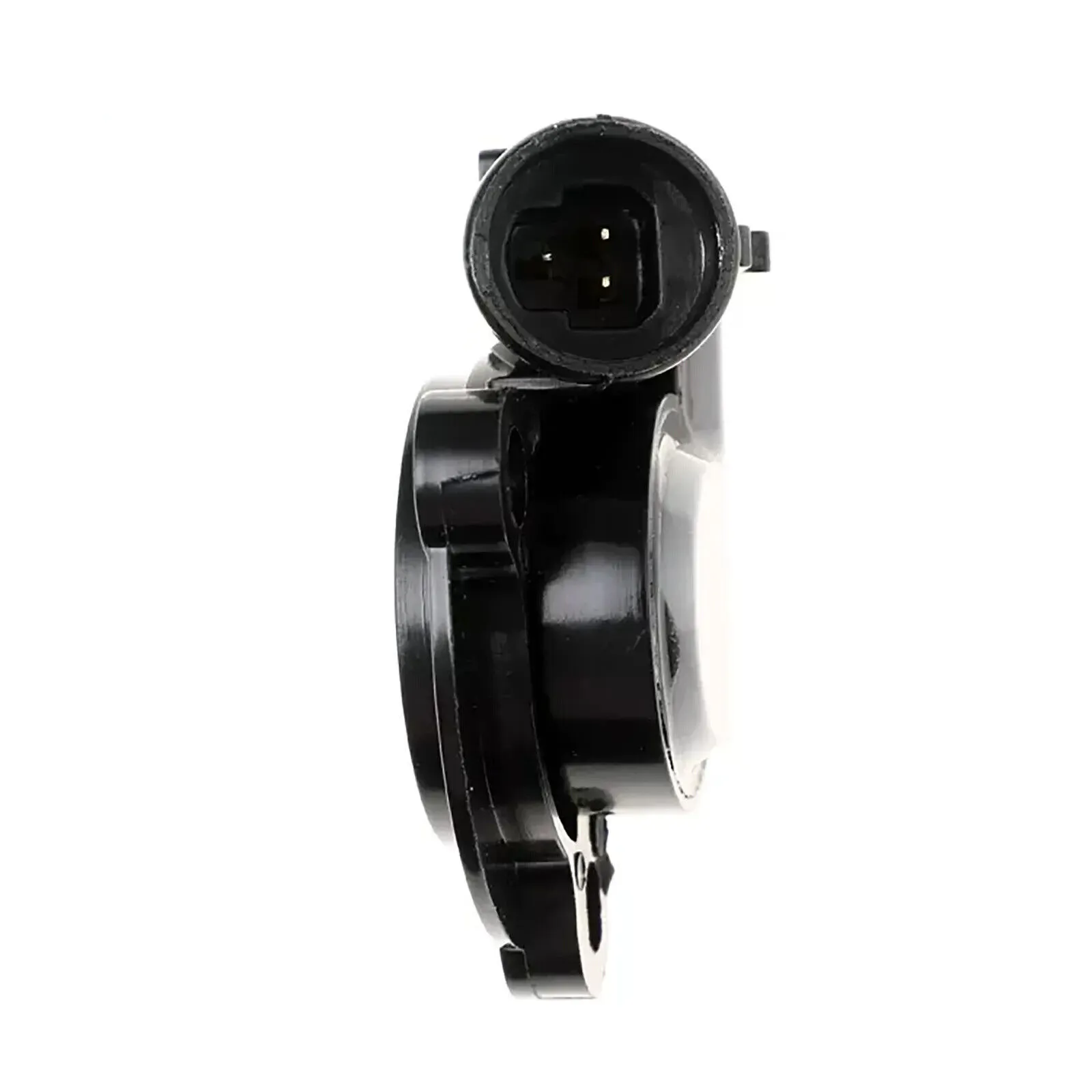

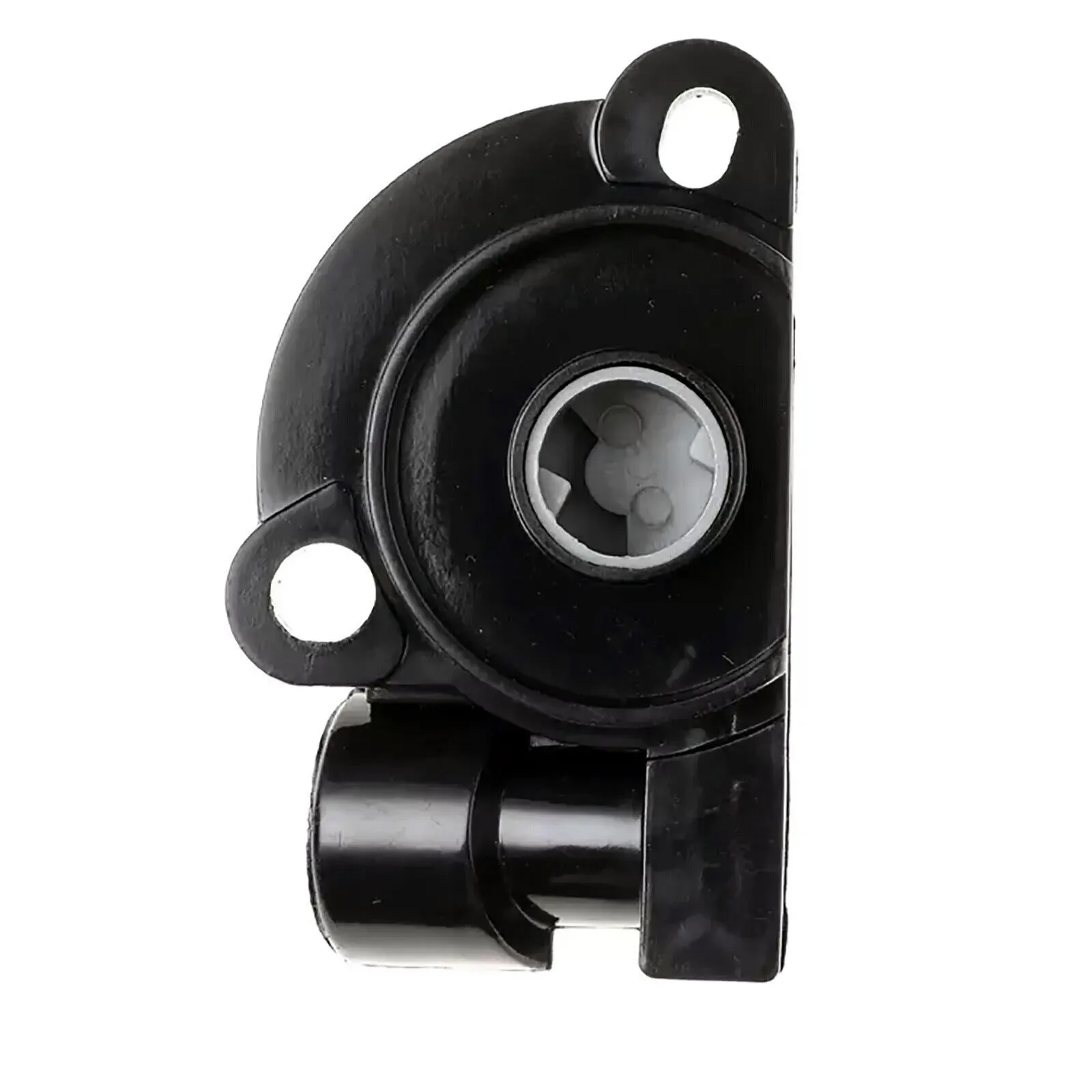

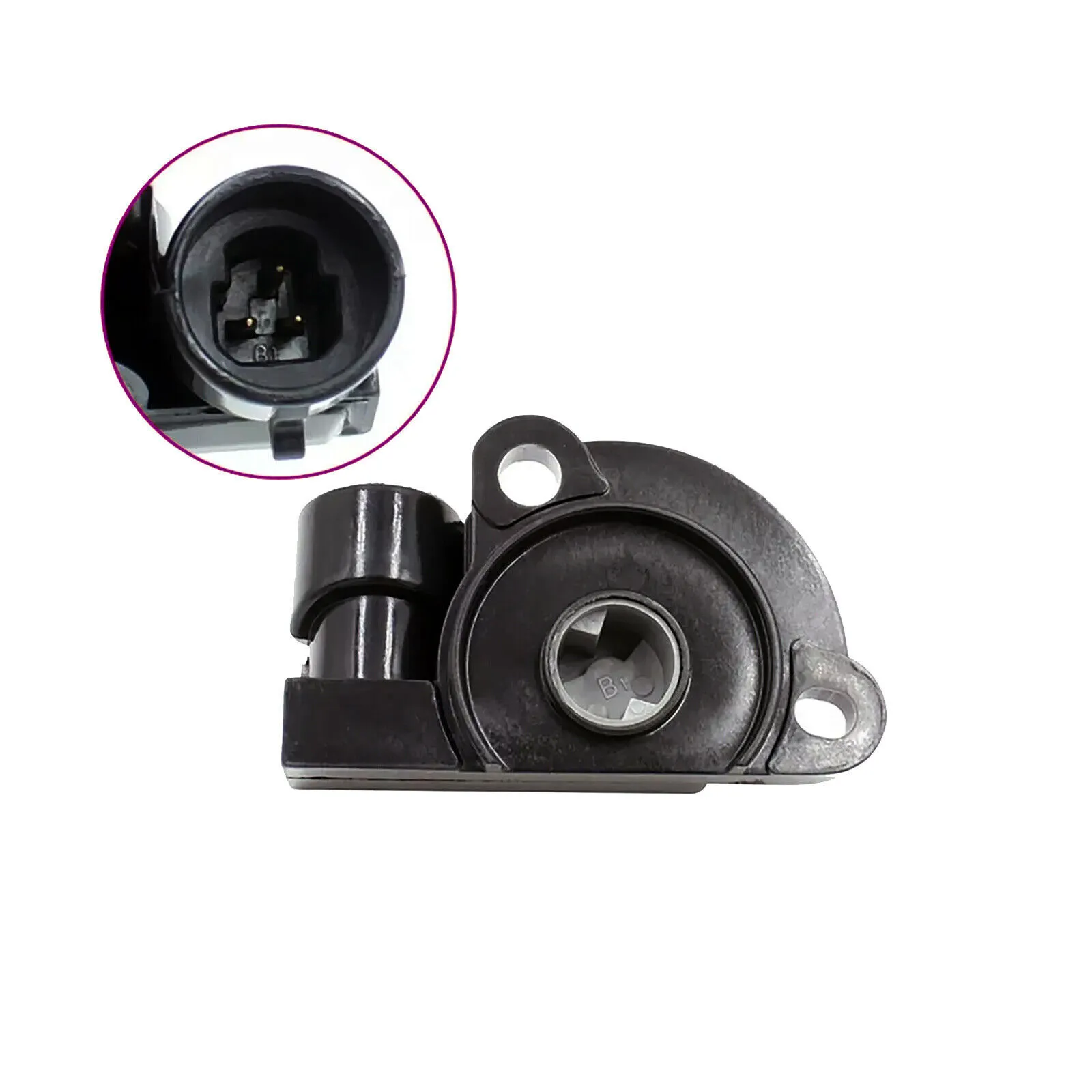

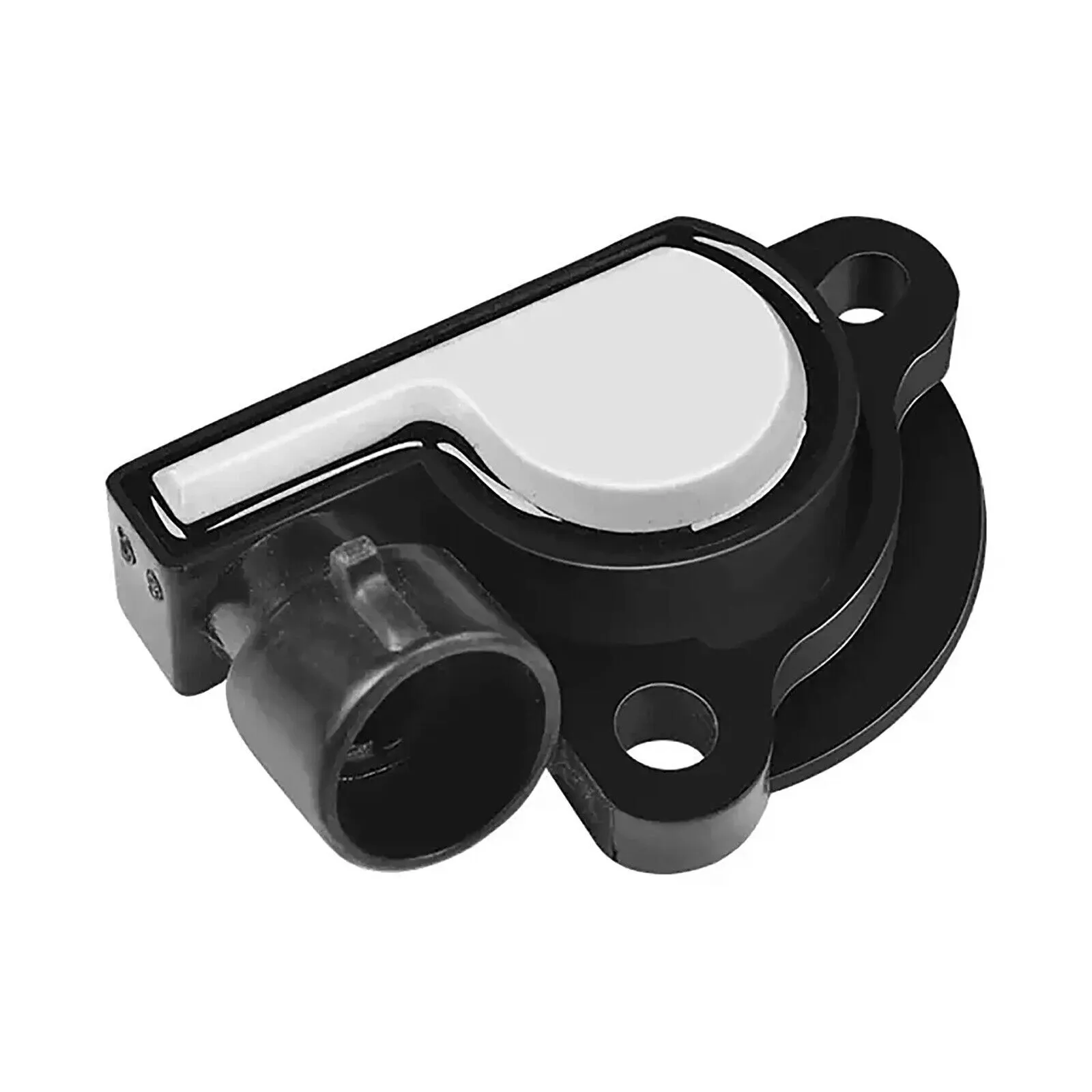

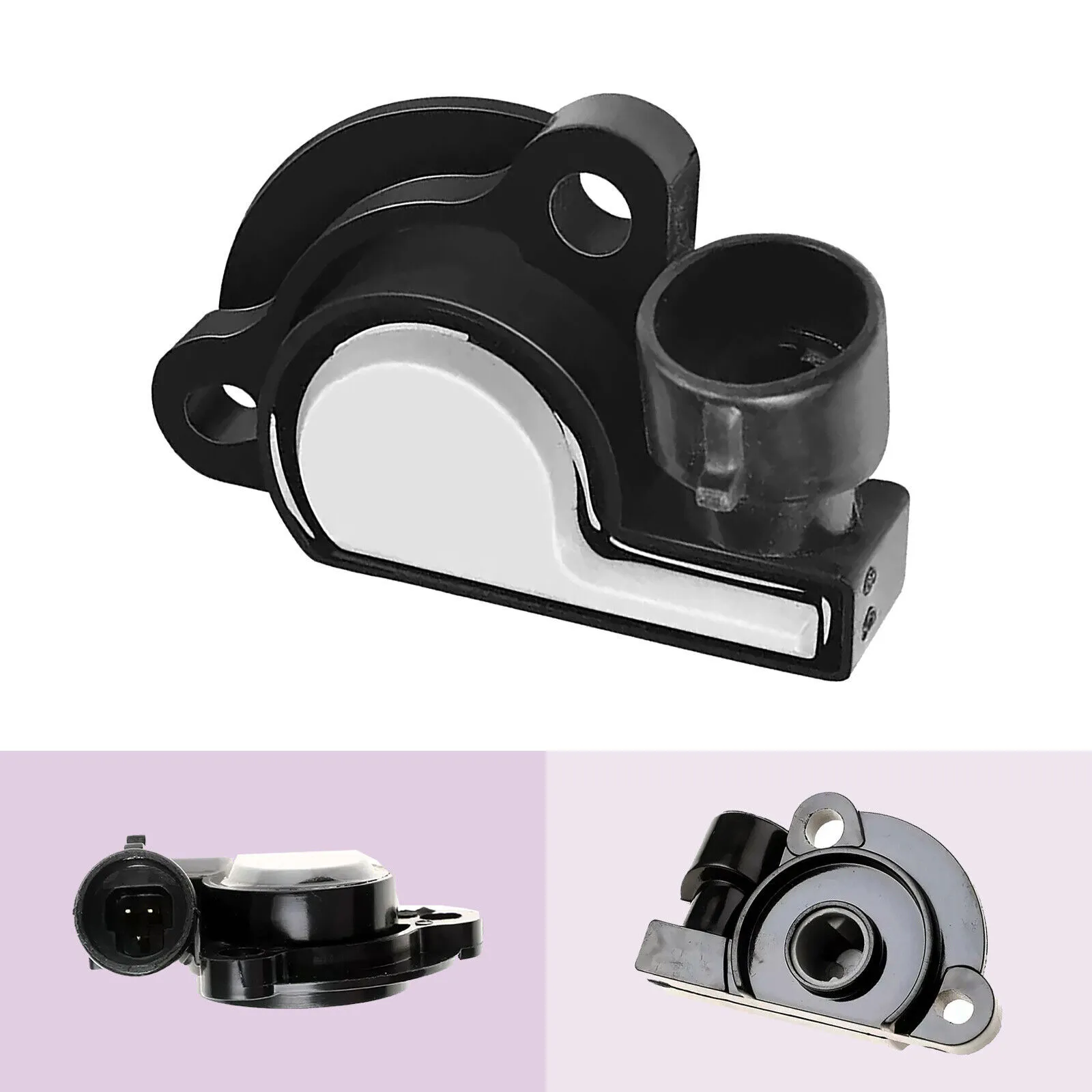

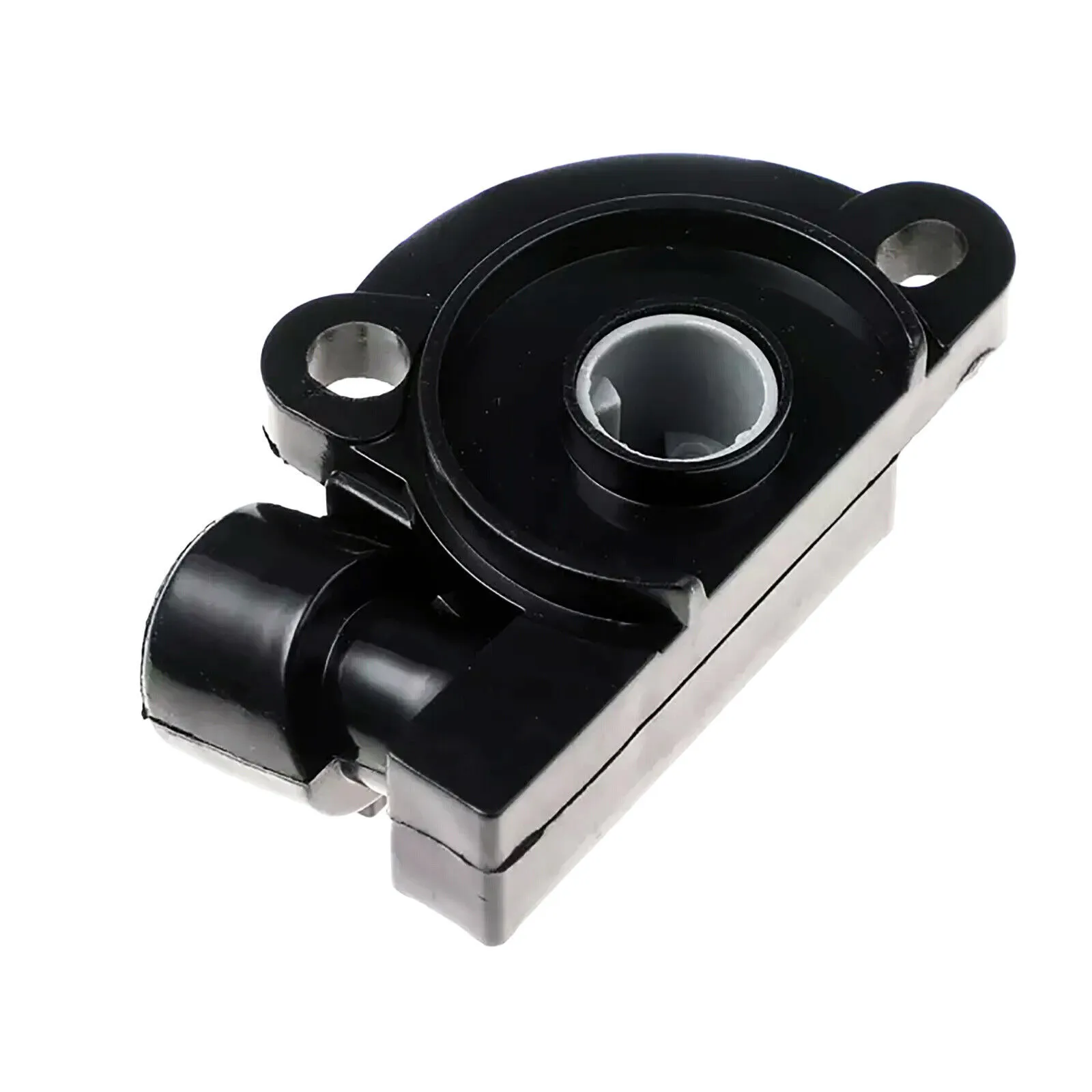

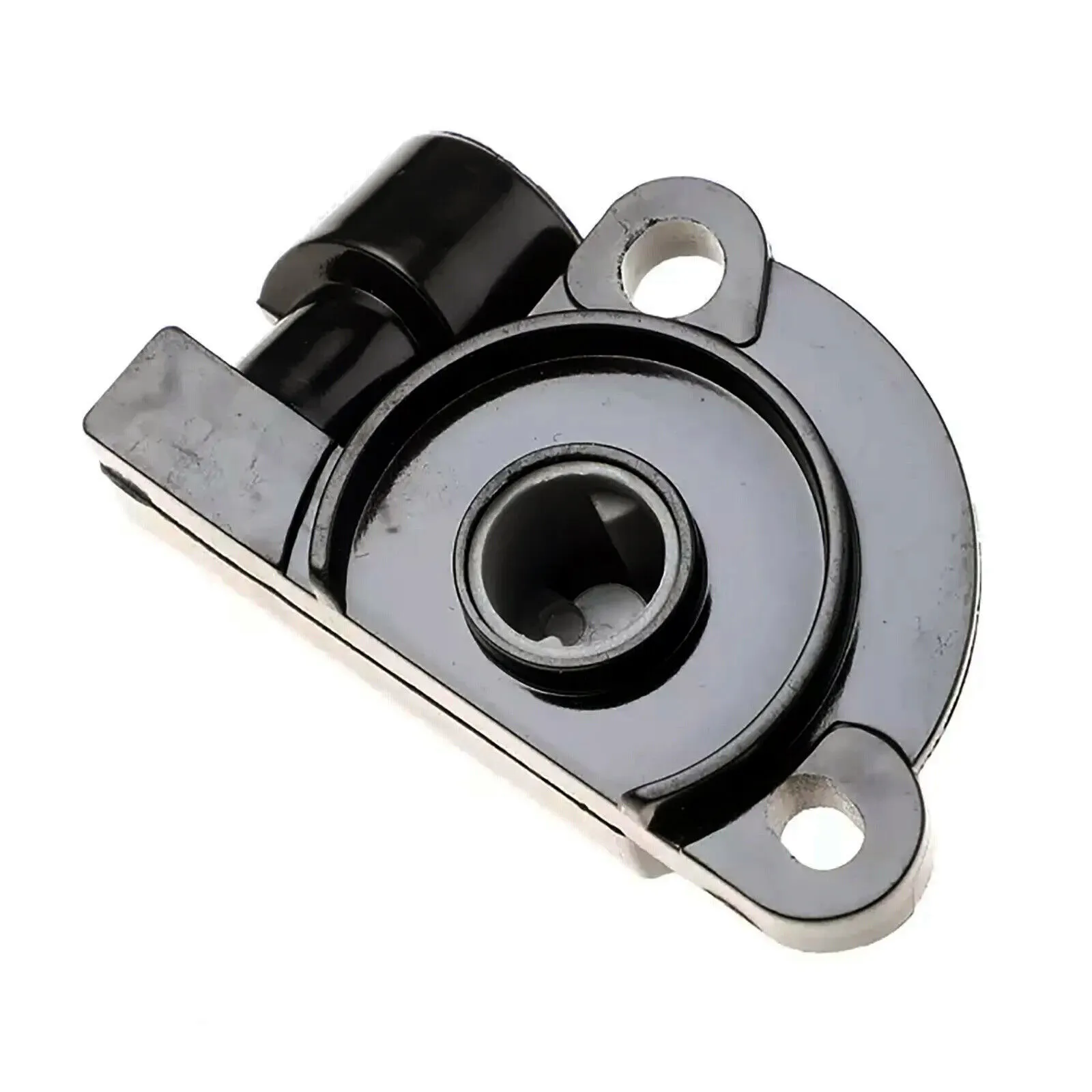

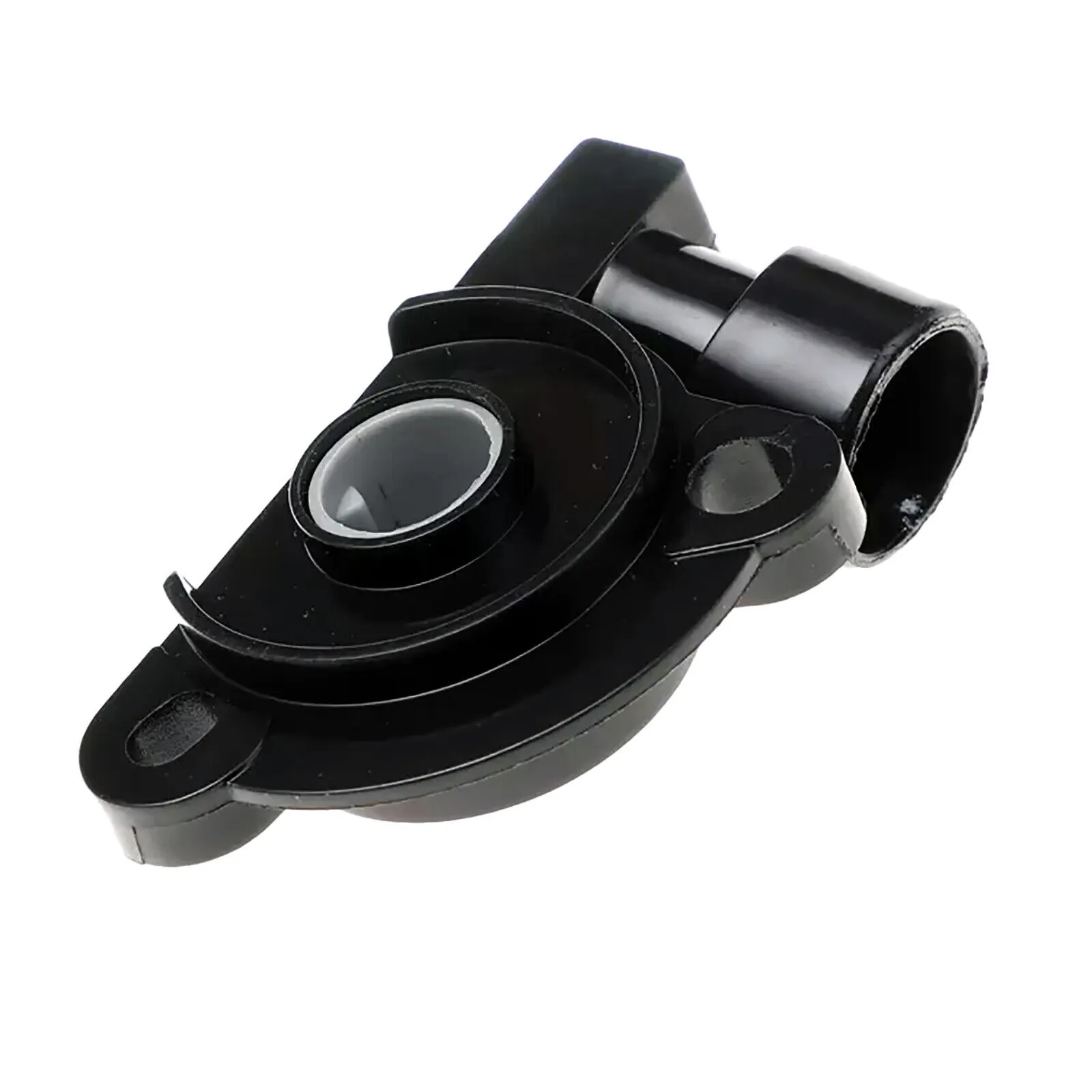

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

[07/93 – 03/95] HSV CAPRICE VR 5.7L V8 350 cu.in Stroker
[04/95 – 05/96] HSV CAPRICE VS SERIES 1 5.7L V8 350 cu.in Stroker
[06/96 – 05/98] HSV CAPRICE VS SERIES 2 5.7L V8 350 cu.in Stroker
[07/93 – 03/95] HSV GTS VR 5.7L V8 350 cu.in Stroker
[04/95 – 05/96] HSV GTS VS SERIES 1 5.7L V8 350 cu.in Stroker
[06/96 – 12/99] HSV GTS VS SERIES 2 5.7L V8 350 cu.in Stroker
[07/93 – 03/95] HSV SENATOR VR 5.7L V8 350 cu.in Stroker
[04/95 – 05/96] HSV SENATOR VS SERIES 1 5.7L V8 350 cu.in Stroker
[06/96 – 07/97] HSV SENATOR VS SERIES 2 5.7L V8 350 cu.in Stroker
[07/93 – 03/95] HSV STATESMAN VR 5.7L V8 350 cu.in Stroker

OEM# 17087654, 17106682

• for OE No: 17106682
• Rotation Direction: Anticlockwise rotation
• Number of pins: 3 -pin connector
• Supplementary Article Info: without cable
• Connector Shape: round
• Number of mounting bores: 2

Features:

• High Quality
• OEM Fit and Design
• Easy install
• Simple operation
• AU Seller-Fast and Free Shipping

Package Includes:

ABOUT YOUR VEHICLE’S THROTTLE POSITION SENSOR

What does a Throttle Position Sensor do?
The Throttle Position sensor moves with the throttle and sends a voltage signal to the computer indicating throttle angle and speed of movement data. The computer uses this data to measure engine load, adjust timing, fuel delivery, EGR, converter clutch operation, and transparent flood mode.

Where is the Throttle Position Sensor located?
The TPS is mounted on the throttle body.

Will a malfunctioning TPS illuminate the check engine light or affect vehicle operation?
A failing TPS can illuminate the MIL, and cause the engine to hesitate upon acceleration or experience idling problems.

What are the common causes of failure?
Typically these sensors fail due to the constant contact of the movable wiper arm over the sensor element and the exposure to the high underhood heat.

How to determine if the TPS is malfunctioning?
Look for smooth voltage changes on the signal wire as the throttle plate opens and closes. The diagnostic codes range from P0120 through P0125.
