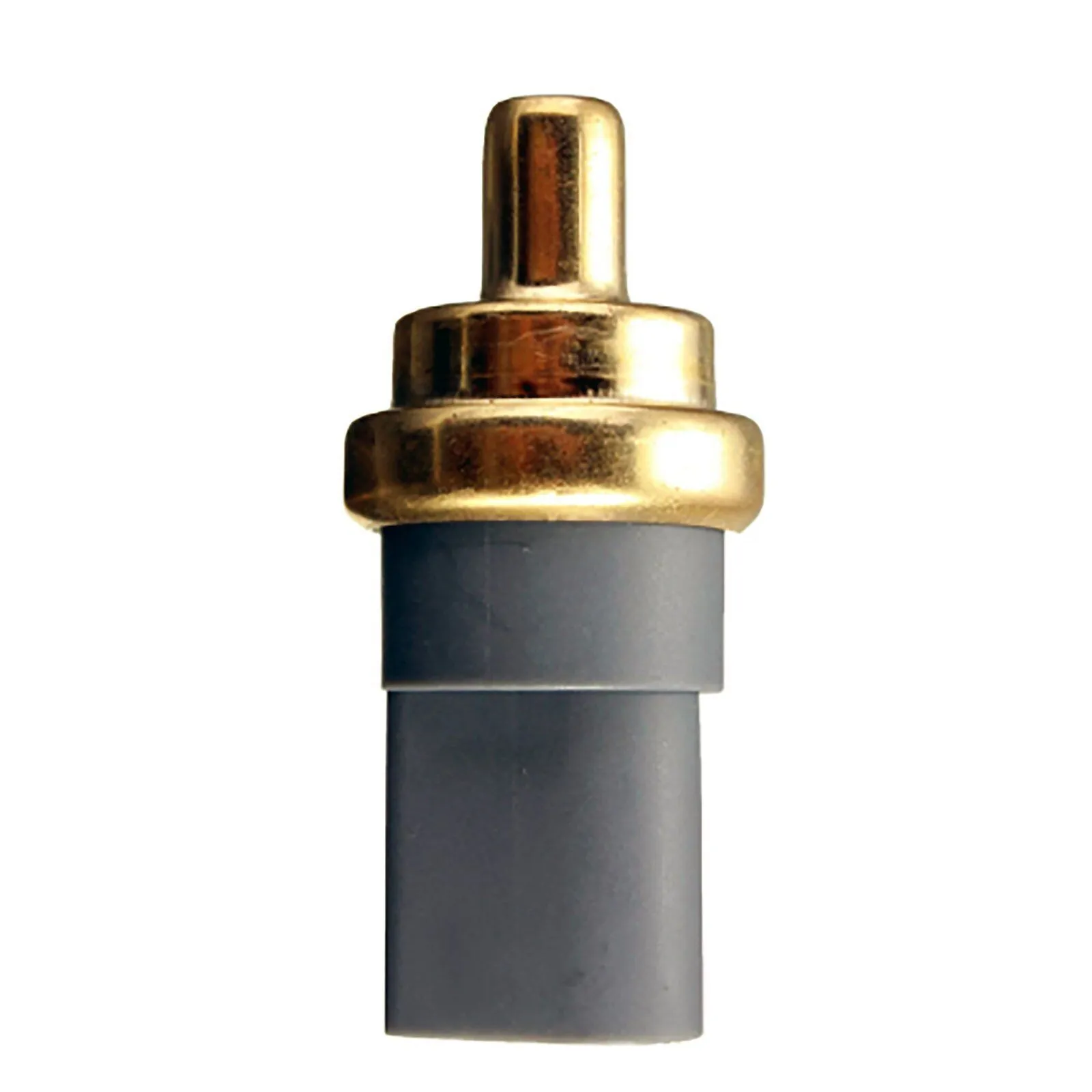

Coolant Temperature Sensor Volkswagon PASSAT 2006-2015 (362/3C2 365/3C5)

BRAND NEW *OEM QUALITY* ENGINE COOLANT TEMPERATURE SENSOR TO SUIT AUDI / VOLKSWAGEN / SKODA

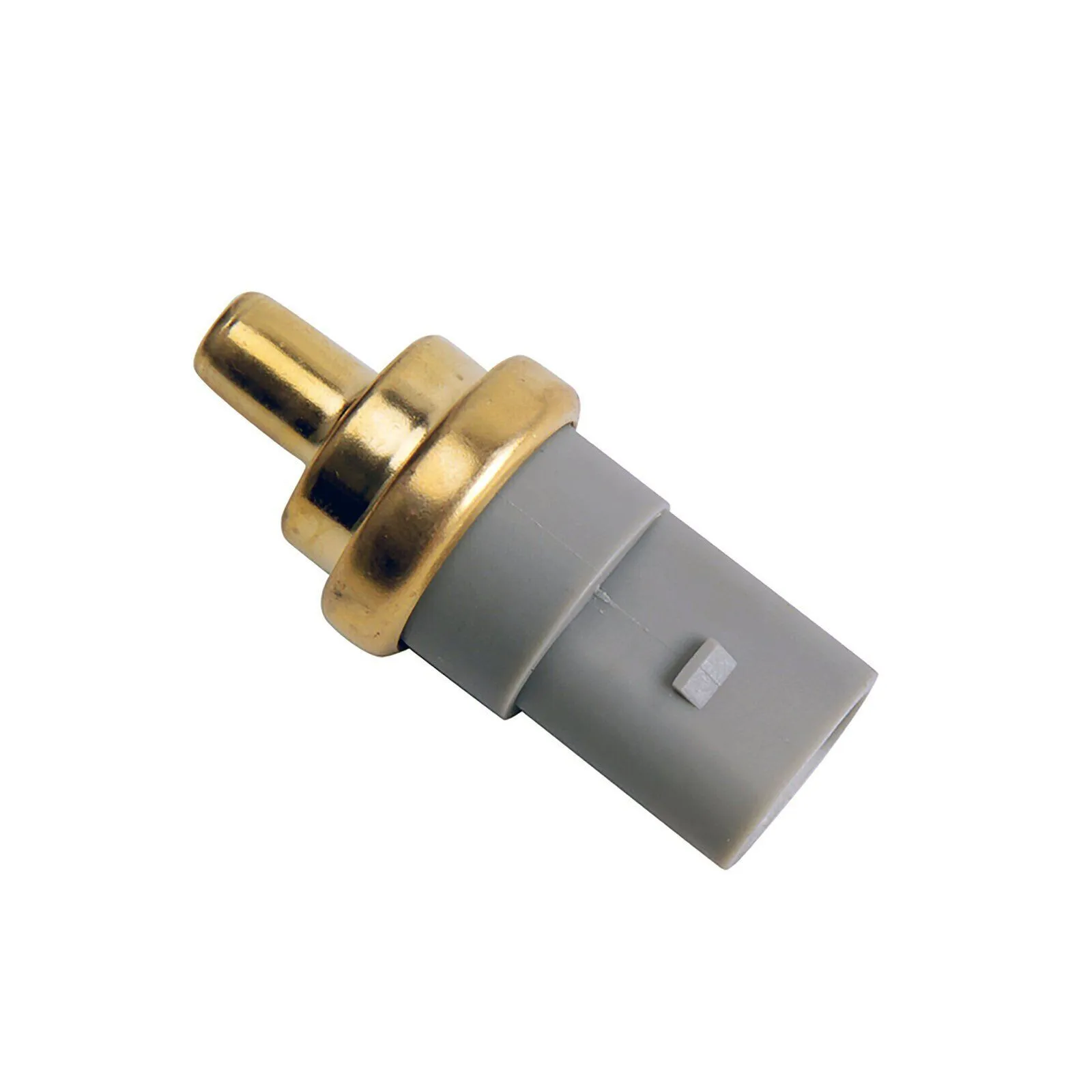

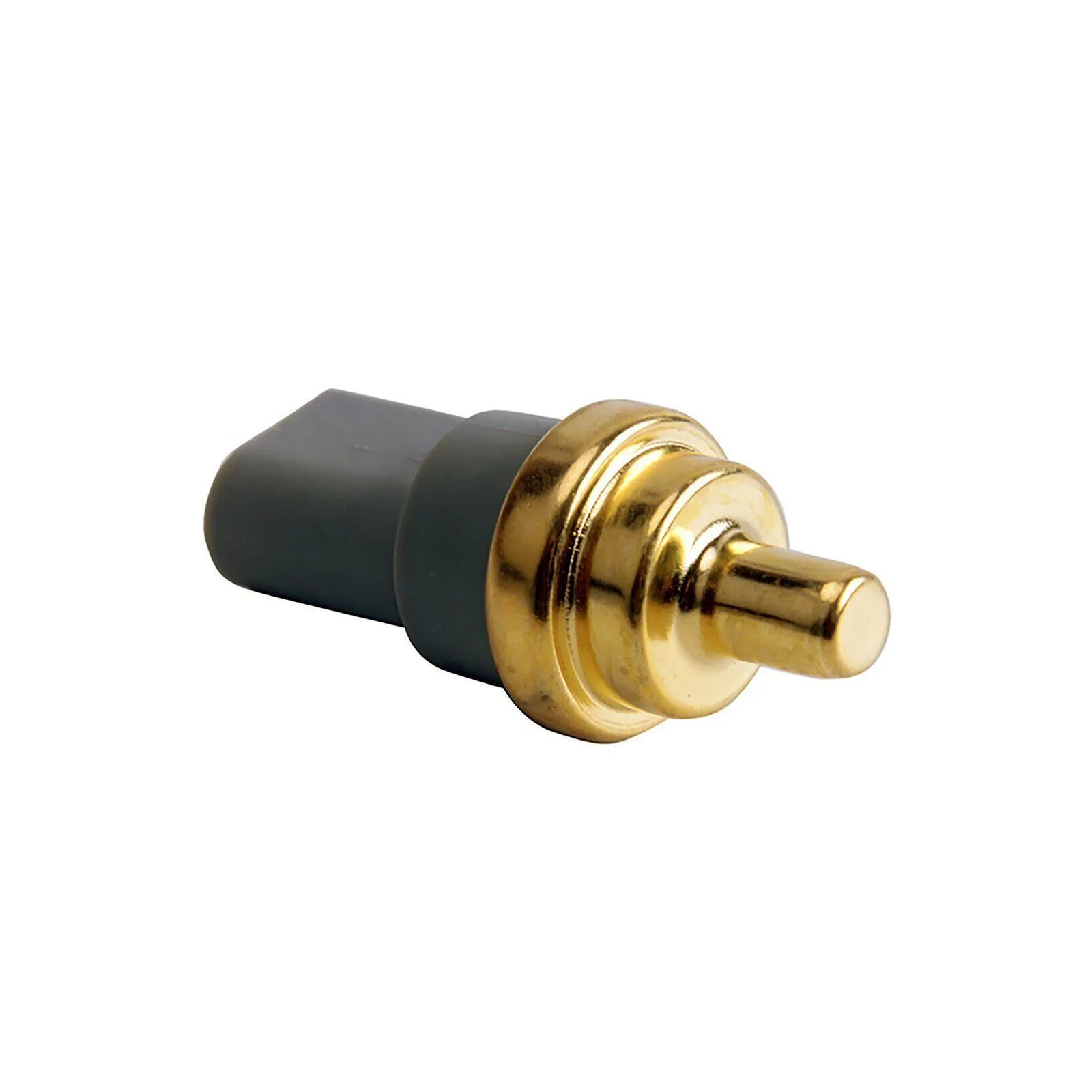

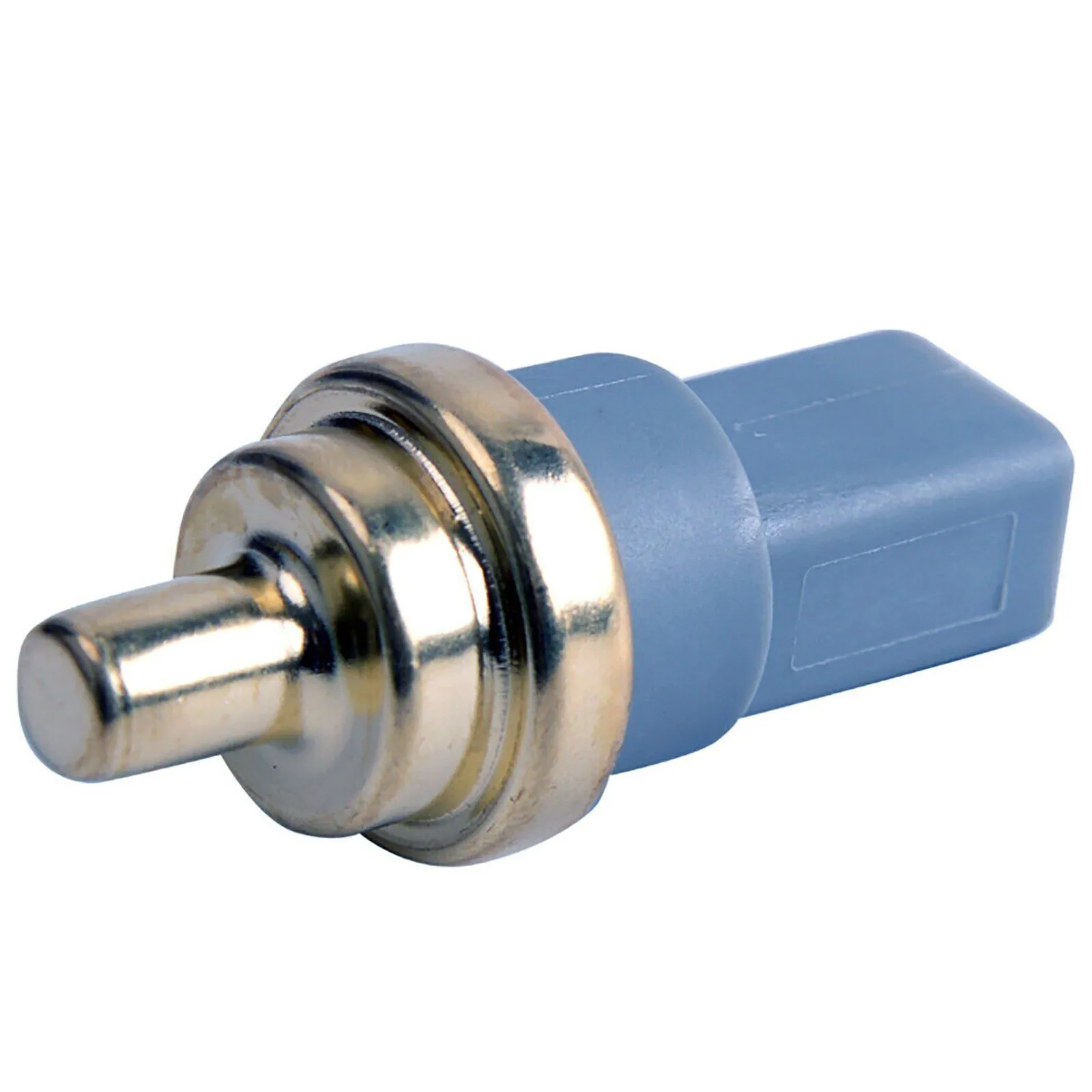

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND

CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

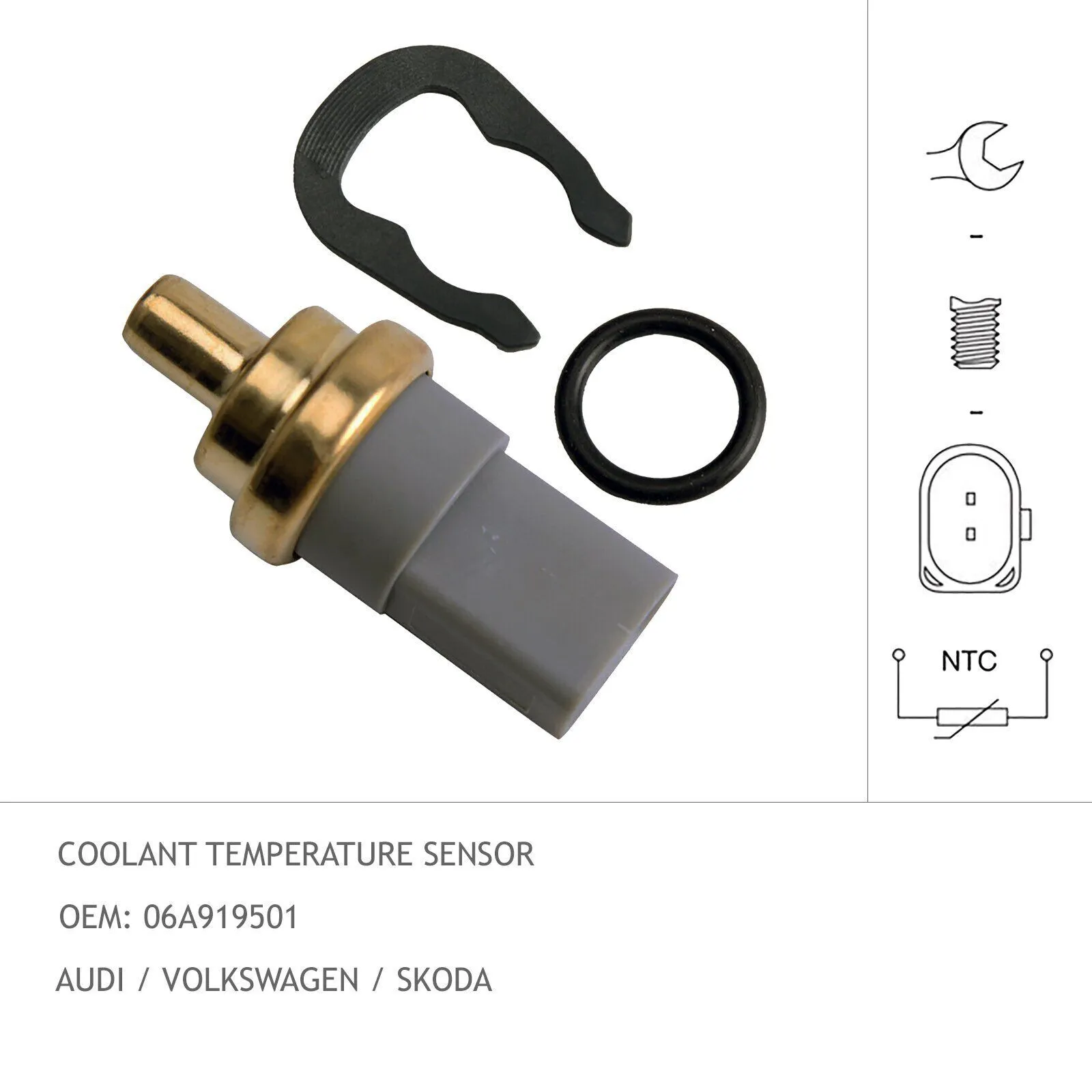

OEM# 06A919501, 06A919501A

Mounting Type	Plugged
Voltage	12 V
Supplementary Article	with seal
Colour	Black, Grey
Sensor Type	NTC Sensor

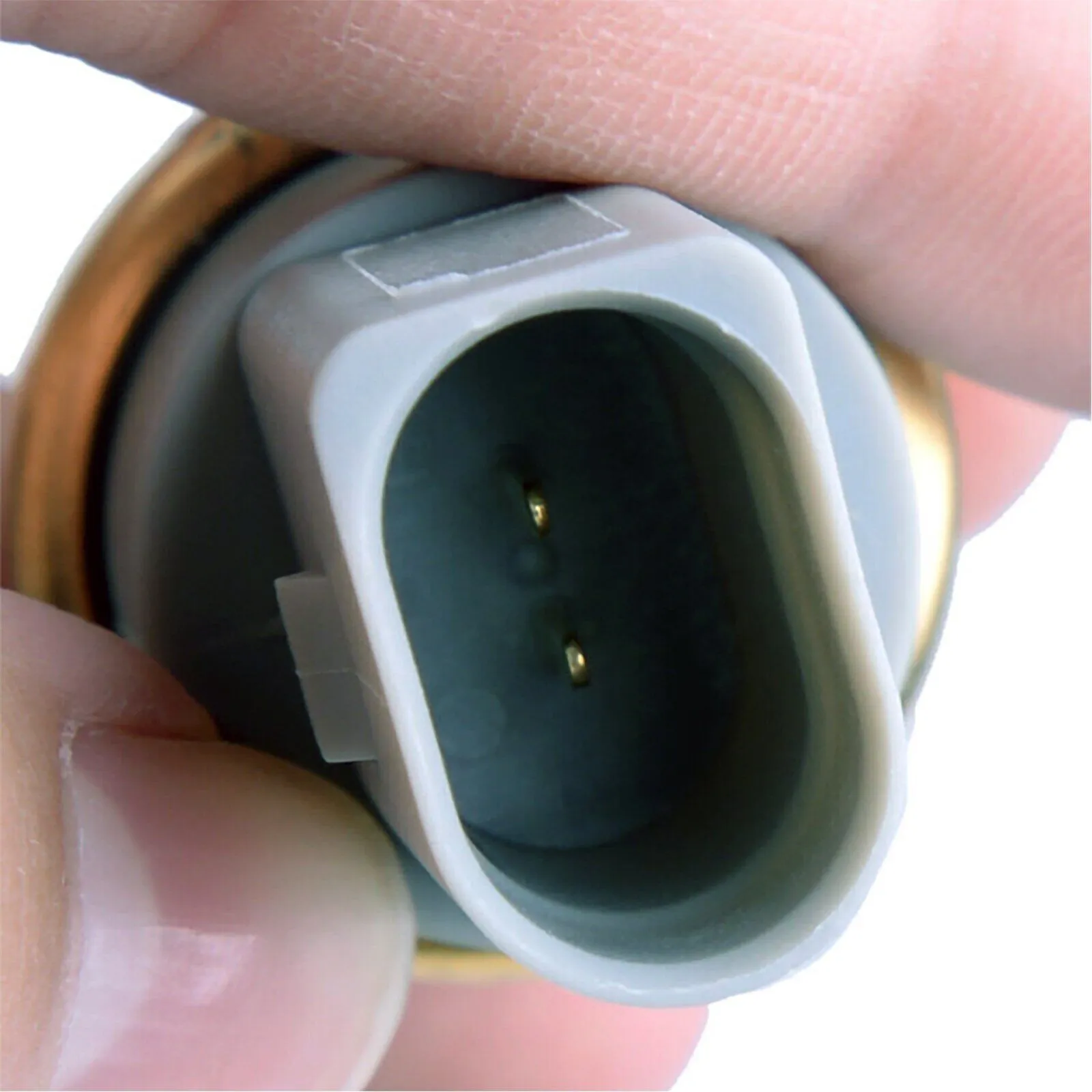

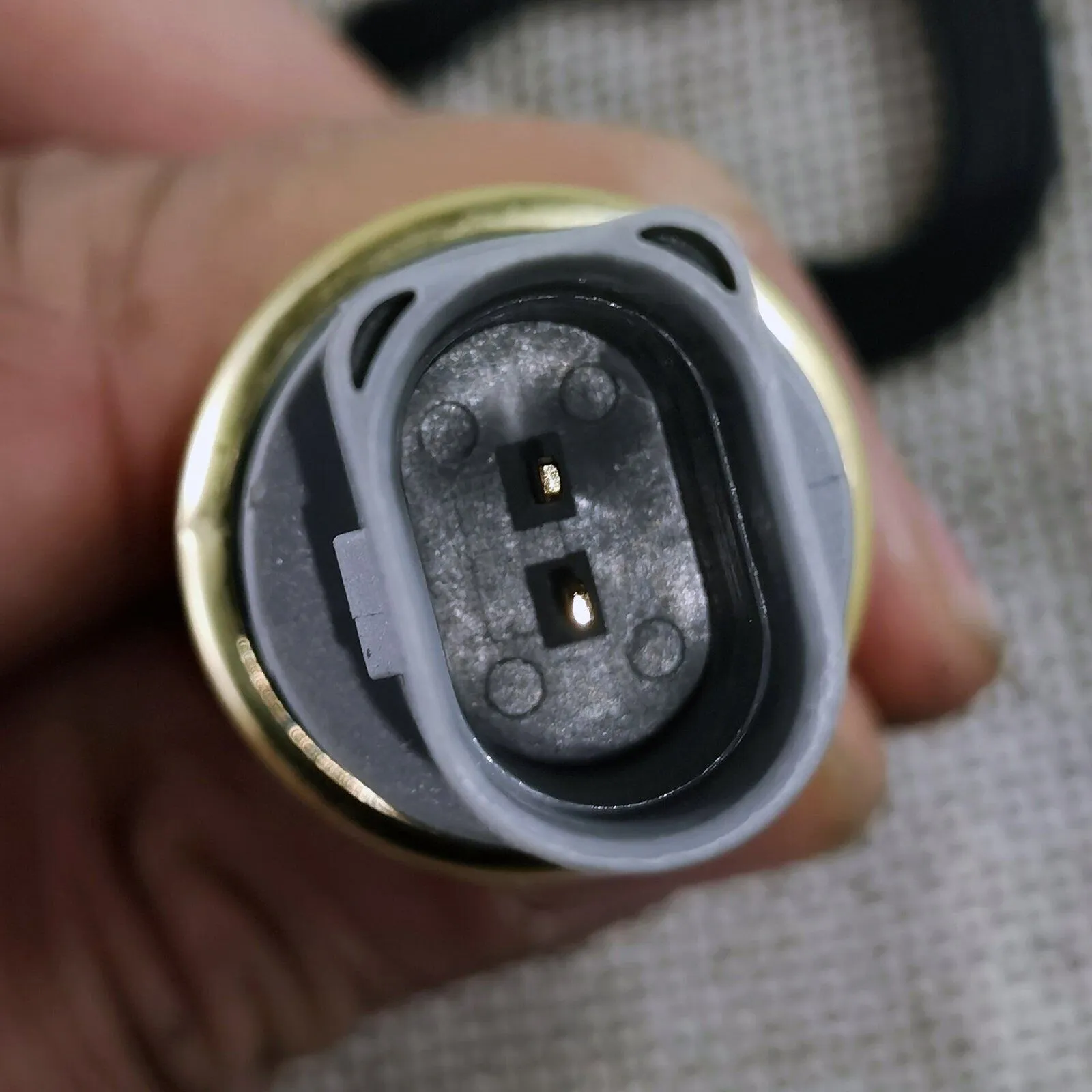

Number of Poles	2 -pin connector
Supplementary Article/Info 2	with retaining ring
Fitting Depth	20 mm

Features?

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

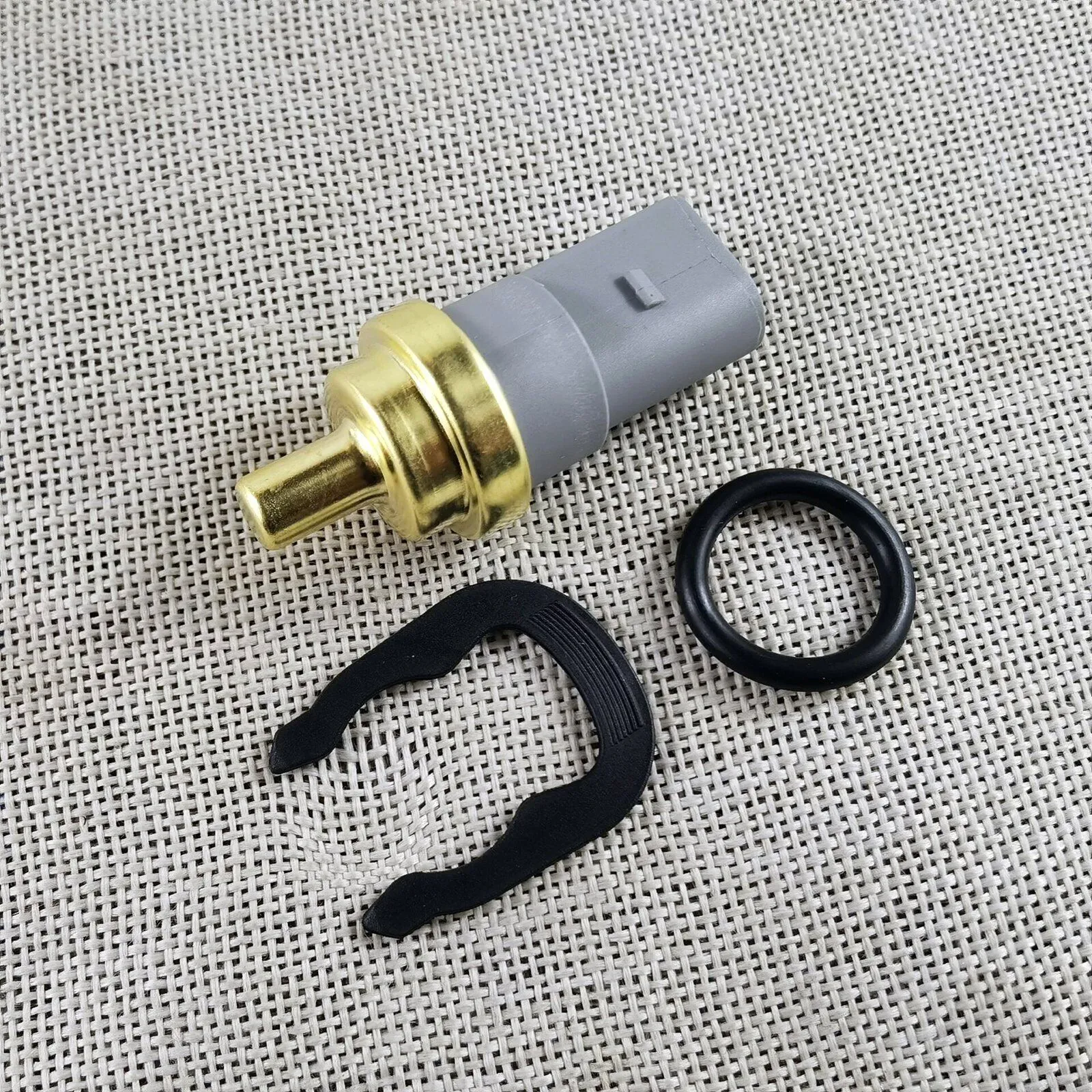

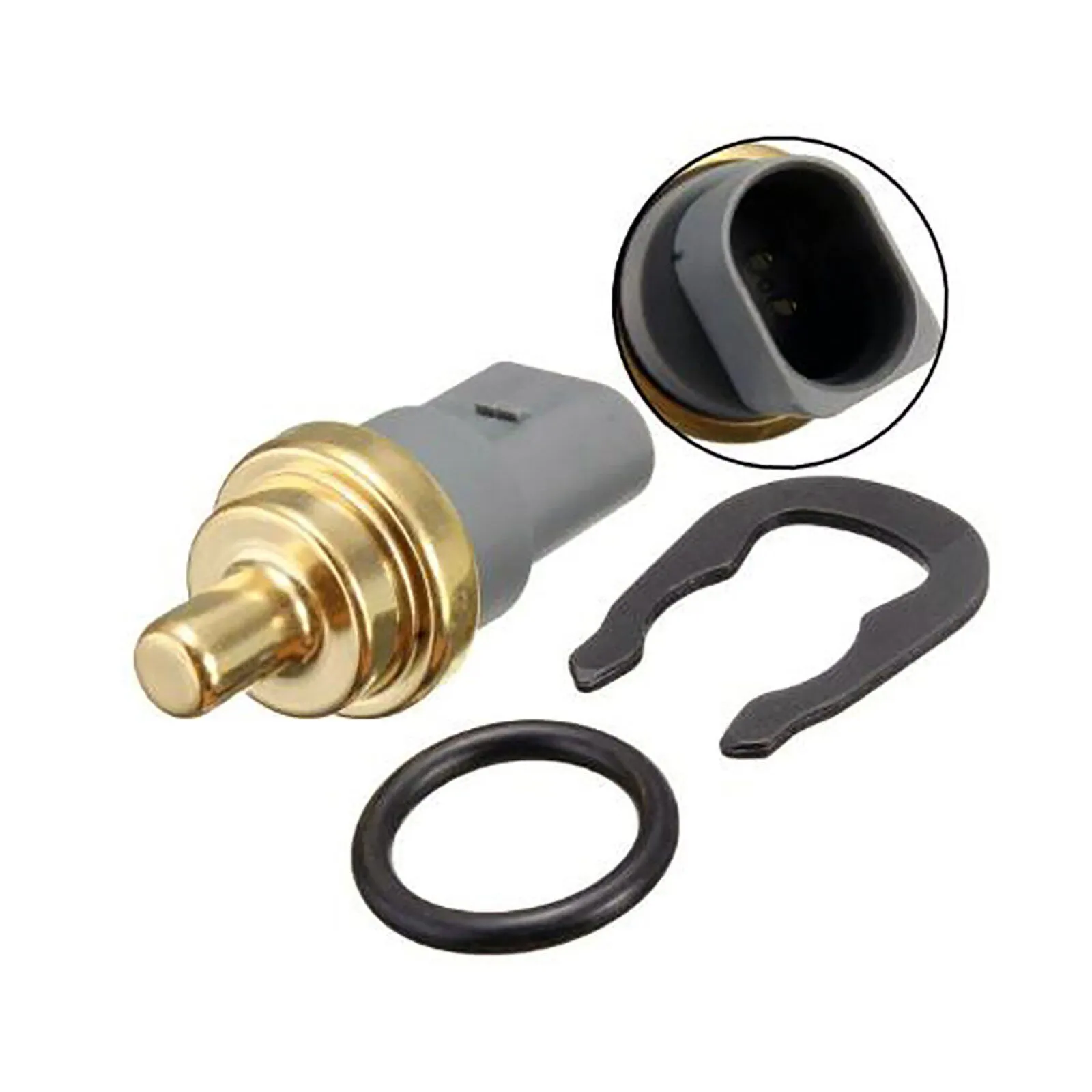

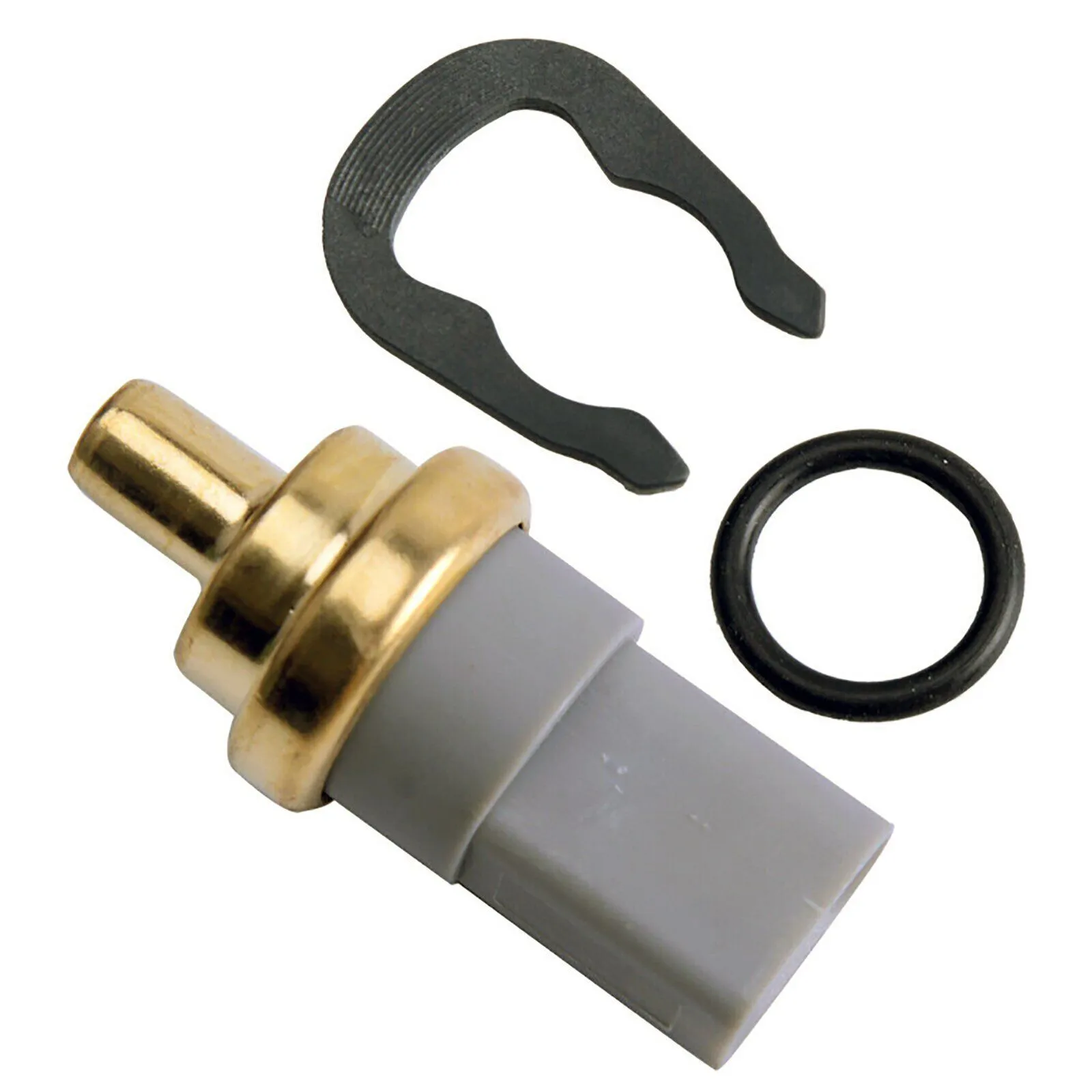

Package Includes:

1* Temperature Sensor (2 PIN PLUG). O-ring Seal Type The engine coolant temperature sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing. Common signs of a bad or failing coolant temperature sensor include poor fuel economy, black smoke coming from the engine, engine overheating, and the Check Engine Light turning on.

COMPATIBLE VEHICLES

VEHICLE MODEL	ENGINE	LITRE	CYL	YEAR
VOLKSWAGEN PASSAT 362/3C2 103TDI	CBAB	2.0L	4cyl	[01/08 – 12/10]
VOLKSWAGEN PASSAT 362/3C2 118TSI	CDAA, CEAA	1.8L	4cyl	[01/10 – 12/15]
VOLKSWAGEN PASSAT 362/3C2 125TDI	CBBB, CFGB	2.0L	4cyl	[01/08 – 12/12]
VOLKSWAGEN PASSAT 362/3C2 147TSI	CAWB	2.0L	4cyl	[01/08 – 12/10]
VOLKSWAGEN PASSAT 362/3C2 FSI	AXX, BWA	2.0L	4cyl	[01/06 – 11/07]
VOLKSWAGEN PASSAT 362/3C2 R36	BWS	3.6L	V6	[01/08 – 12/10]
VOLKSWAGEN PASSAT 362/3C2 TDI	BKP	2.0L	4cyl	[01/06 – 12/08]
VOLKSWAGEN PASSAT 362/3C2 TDI	BMR	2.0L	4cyl	[01/07 – 12/08]
VOLKSWAGEN PASSAT 362/3C2 V6 FSI	AXZ	3.2L	V6	[01/06 – 12/10]
VOLKSWAGEN PASSAT 362/3C2 V6 FSI	BWS	3.6L	V6	[01/11 – 12/14]
VOLKSWAGEN PASSAT 365/3C5 103TDI	CBAB	2.0L	4cyl	[01/08 – 12/10]
VOLKSWAGEN PASSAT 365/3C5 118TSI	CDAA, CEAA	1.8L	4cyl	[01/10 – 12/15]
VOLKSWAGEN PASSAT 365/3C5 125TDI	CBBB, CFGB	2.0L	4cyl	[01/08 – 12/13]
VOLKSWAGEN PASSAT 365/3C5 147TSI	CAWB	2.0L	4cyl	[01/08 – 12/10]
VOLKSWAGEN PASSAT 365/3C5 FSI	AXX, BWA	2.0L	4cyl	[01/06 – 11/07]
VOLKSWAGEN PASSAT 365/3C5 R36	BWS	3.6L	V6	[01/08 – 12/10]
VOLKSWAGEN PASSAT 365/3C5 TDI	BKP	2.0L	4cyl	[01/06 – 12/08]
VOLKSWAGEN PASSAT 365/3C5 TDI	BMR	2.0L	4cyl	[01/07 – 12/08]
VOLKSWAGEN PASSAT 365/3C5 V6 FSI	AXZ	3.2L	V6	[01/06 – 12/10]
VOLKSWAGEN PASSAT 365/3C5 V6 FSI	BWS	3.6L	V6	[01/11 – 12/14]
VOLKSWAGEN PASSAT 3B2, 3B3	AZX	2.3L	V5	[01/02 – 12/05]

ABOUT YOUR VEHICLE’S ENGINE COOLANT TEMPERATURE SENSOR

What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.

Where are these sensors located?
The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.

Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.

What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 low input, or P0118 for high input. The coolant temperature sensor temperature reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.

SKU	CTS190-8
Barcode #	9314258730376
Brand:	Aftermarket OEM Replacement
Part Number:	06A919501A, CTS190
Reference OEM Number:	06A919501A
Other OEM Numbers:	06A919501, 06A919501A
Related Part Numbers:	1009190032, CS878, CTS1090, TCS111
Trade Part Numbers:	VEMO: V10-99-0001, WALKER: 211-1056
Note:	CHECK IMAGES. CONFIRM WITH OEM NUMBER
Unit Of Measure	ea
