Coolant Temperature Sensor Hyundai SANTA FE 2011-2018 CM 3.5L G6DC, DM 2.4L G4KJ, 3.3L G6DF 39220380

BRAND NEW *OEM QUALITY* ENGINE COOLANT TEMPERATURE SENSOR TO SUIT HYUNDAI / KIA

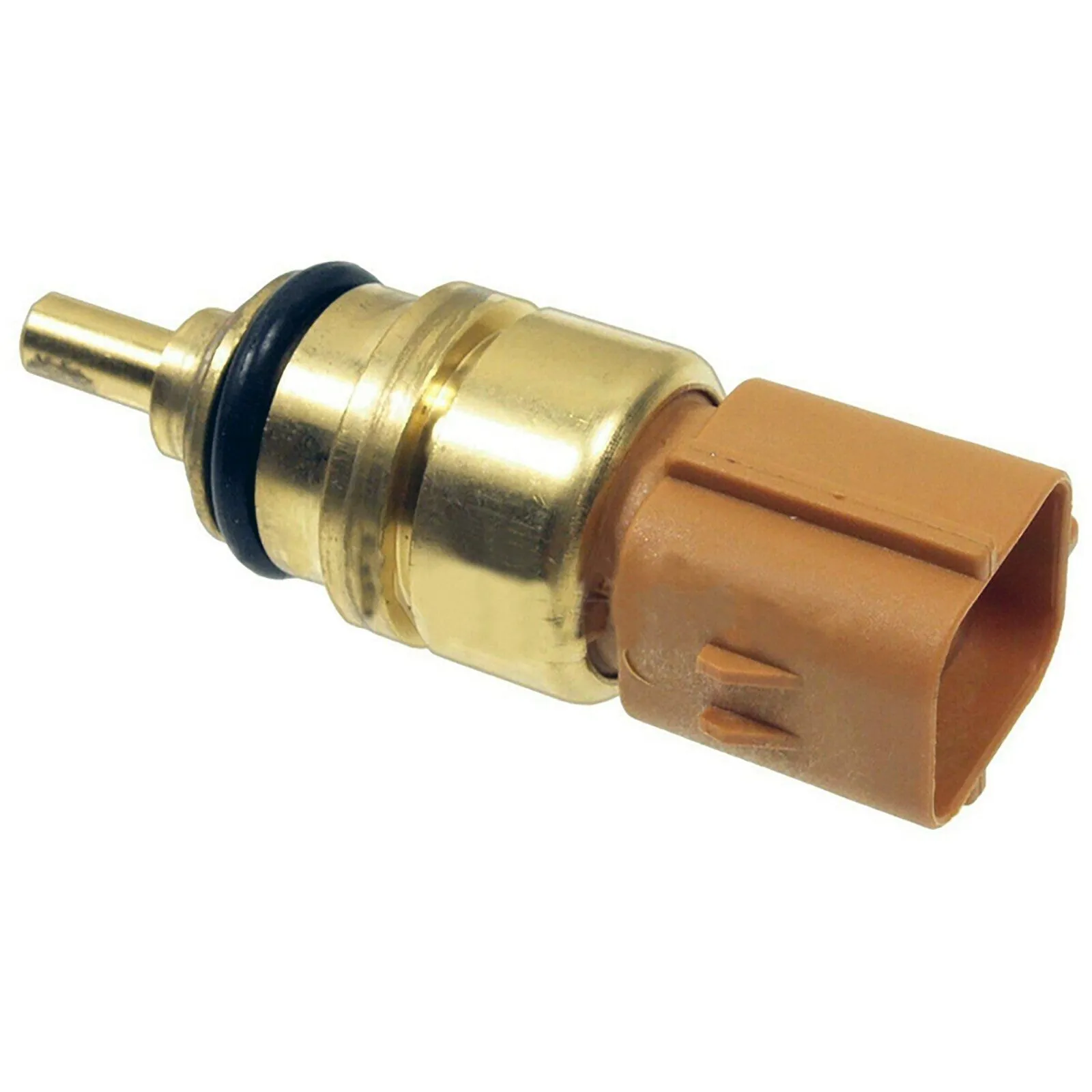

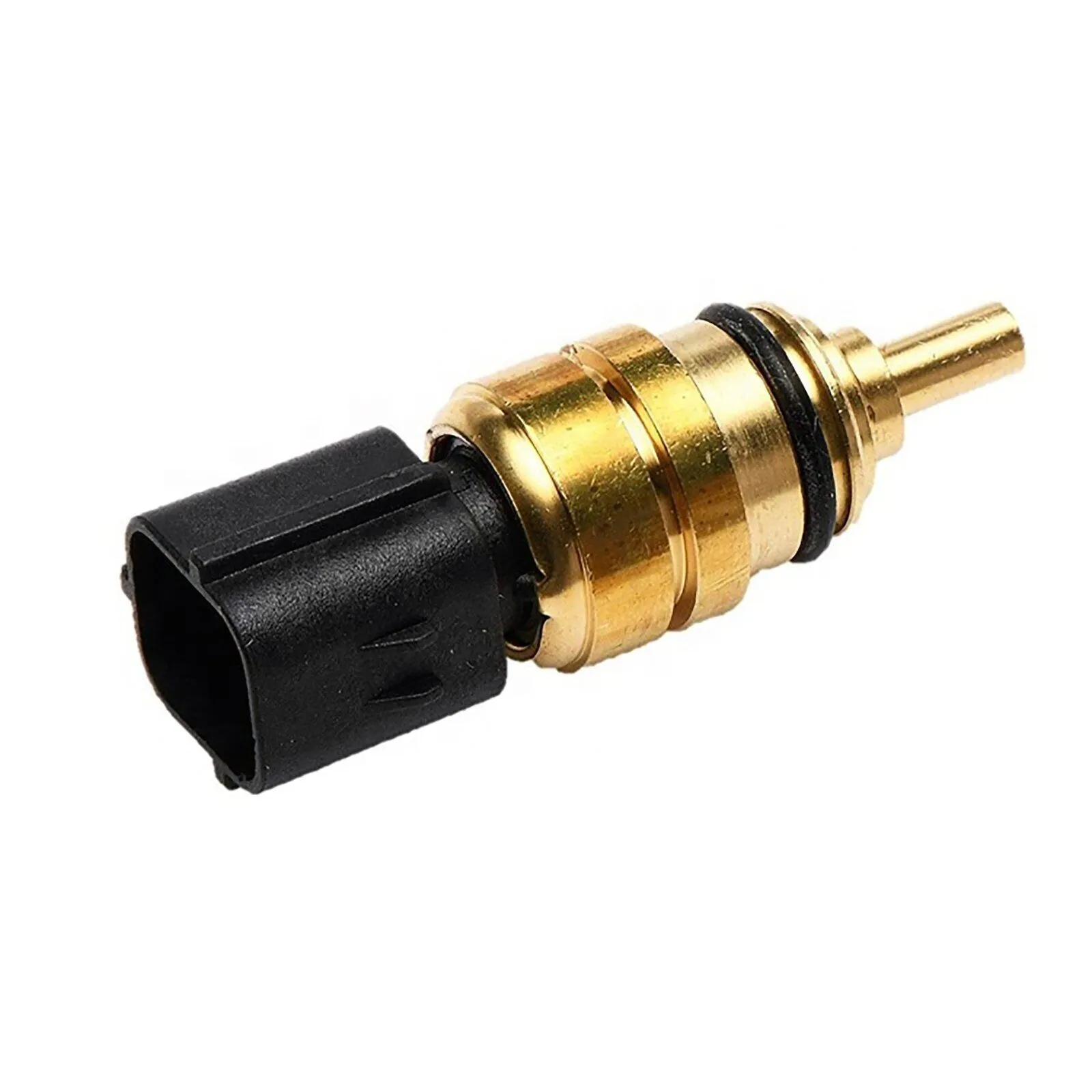

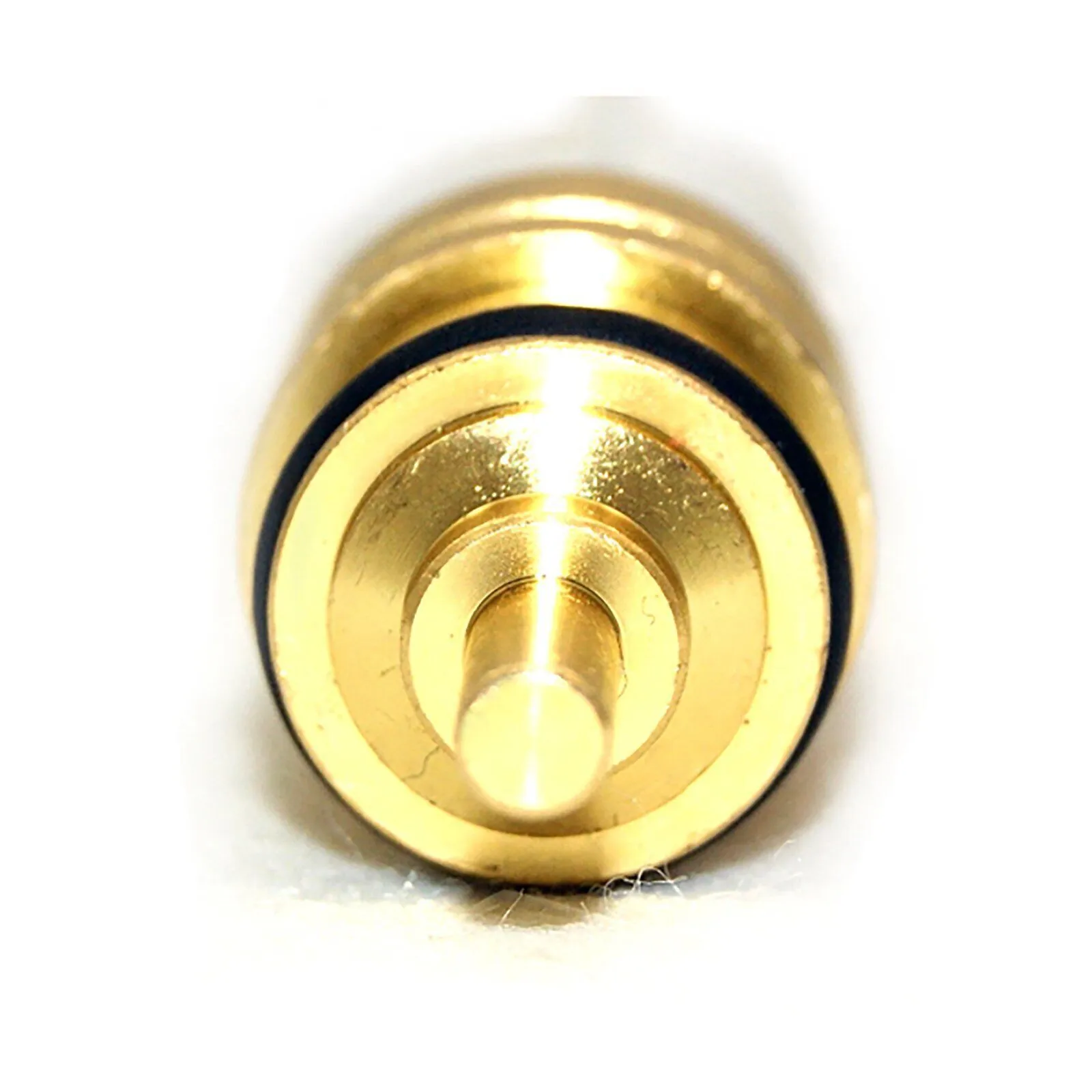

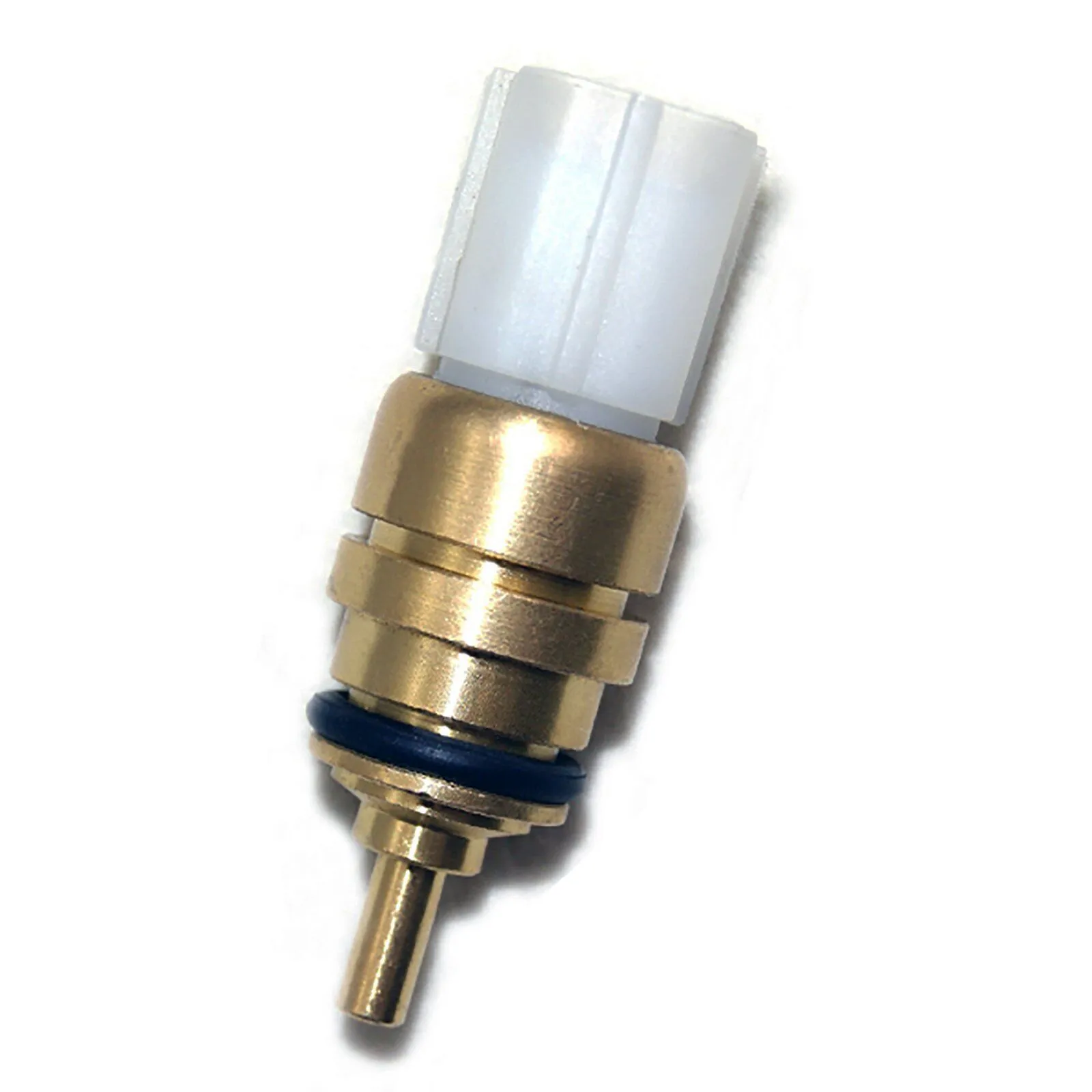

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND

CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

[2010-2012] HYUNDAI I45 YF (2.0L G4KD, 2.4L G4KJ)

[2010-2013] HYUNDAI IX35 LM (2.0L G4KD, 2.4L G4KE)

[2011-2018] HYUNDAI SANTA FE CM 3.5L G6DC, DM 2.4L G4KJ, 3.3L G6DF

[2005-2019] HYUNDAI SONATA LF NF 2.0L 2.4L G4 KH/KJ/KC/KE

OEM# 39220-38010, 39220-3C010, 39220-02520, 39220-02500

Thread Size	N/A
Spanner size	N/A
Supplementary Article/Supplementary Info	with gaskets/seals

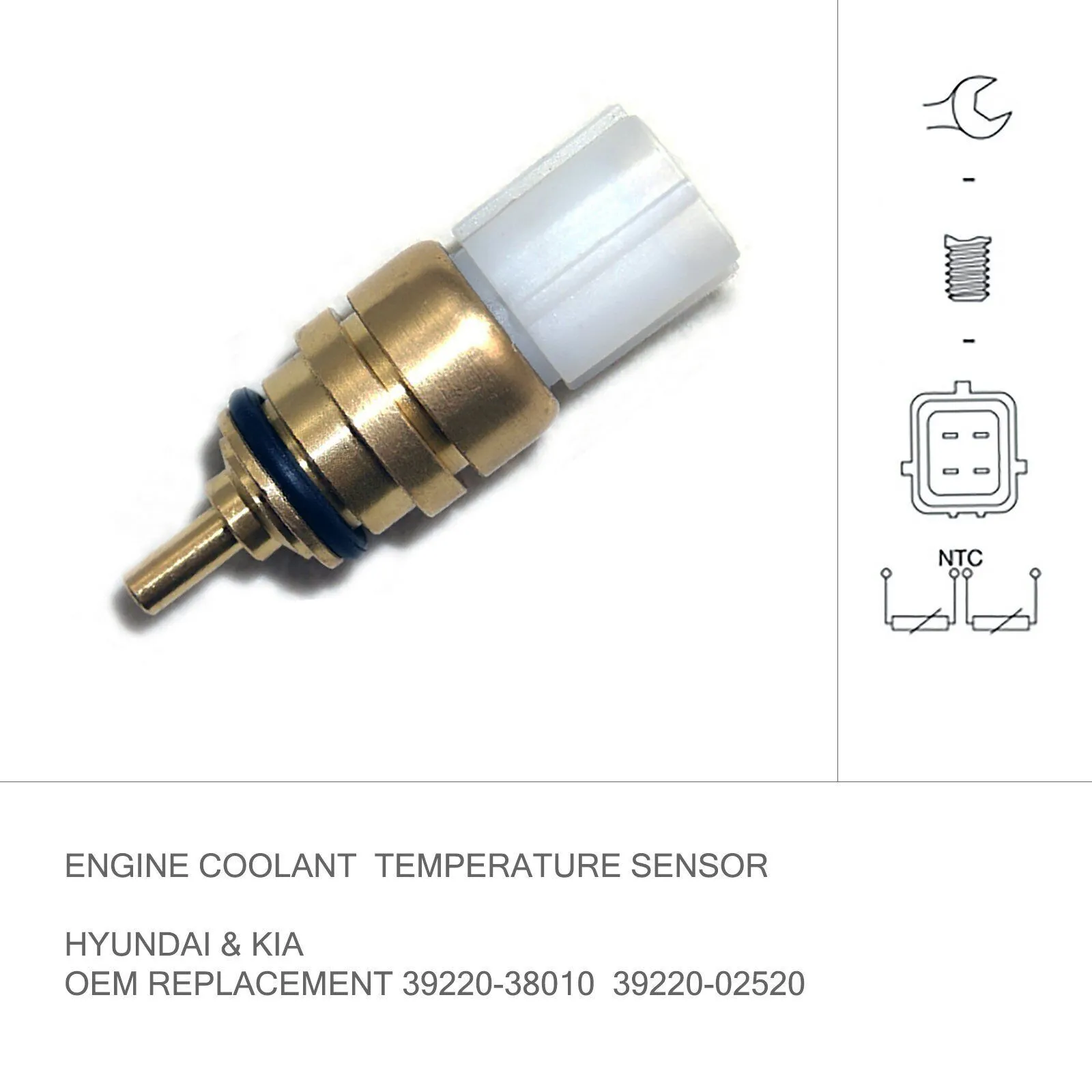

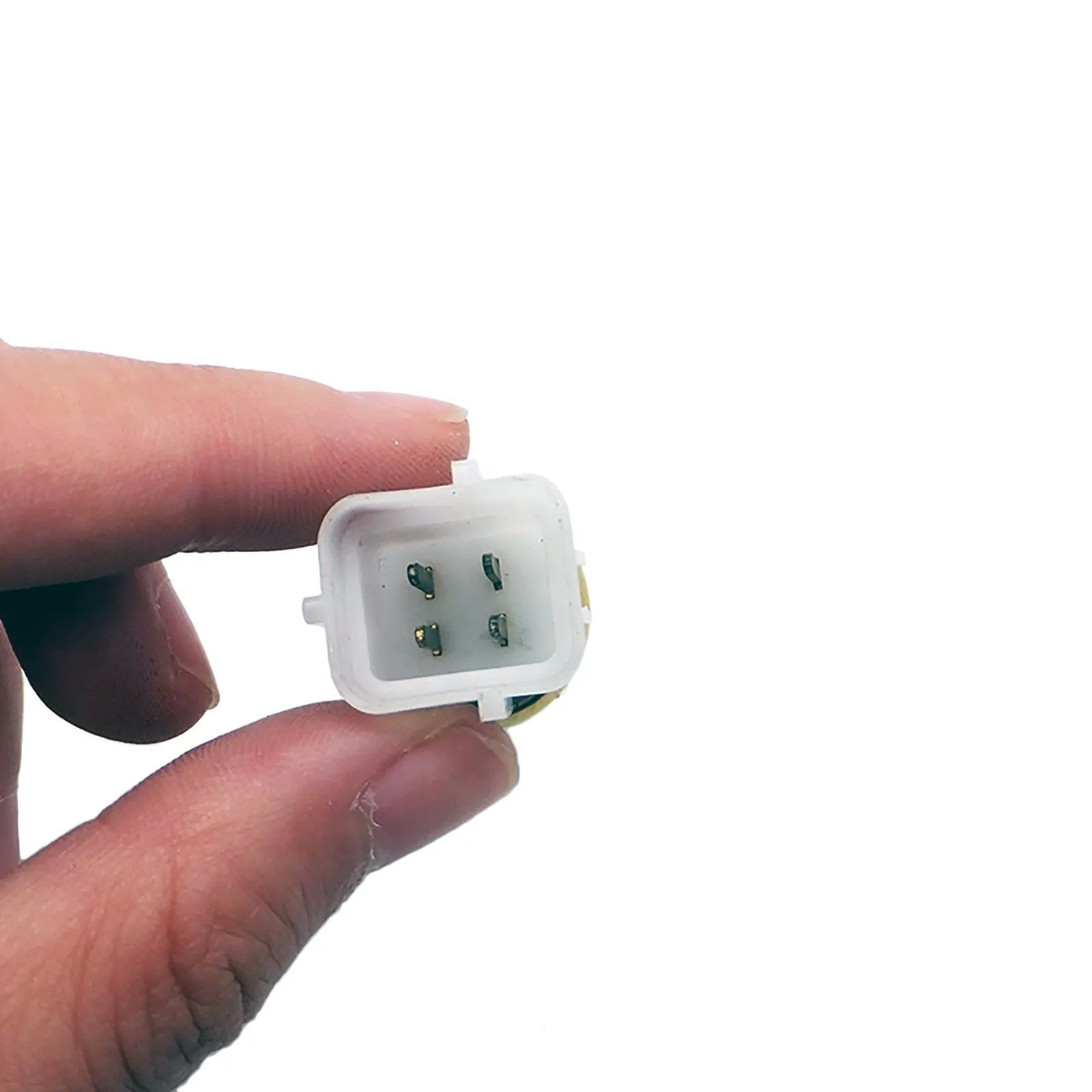

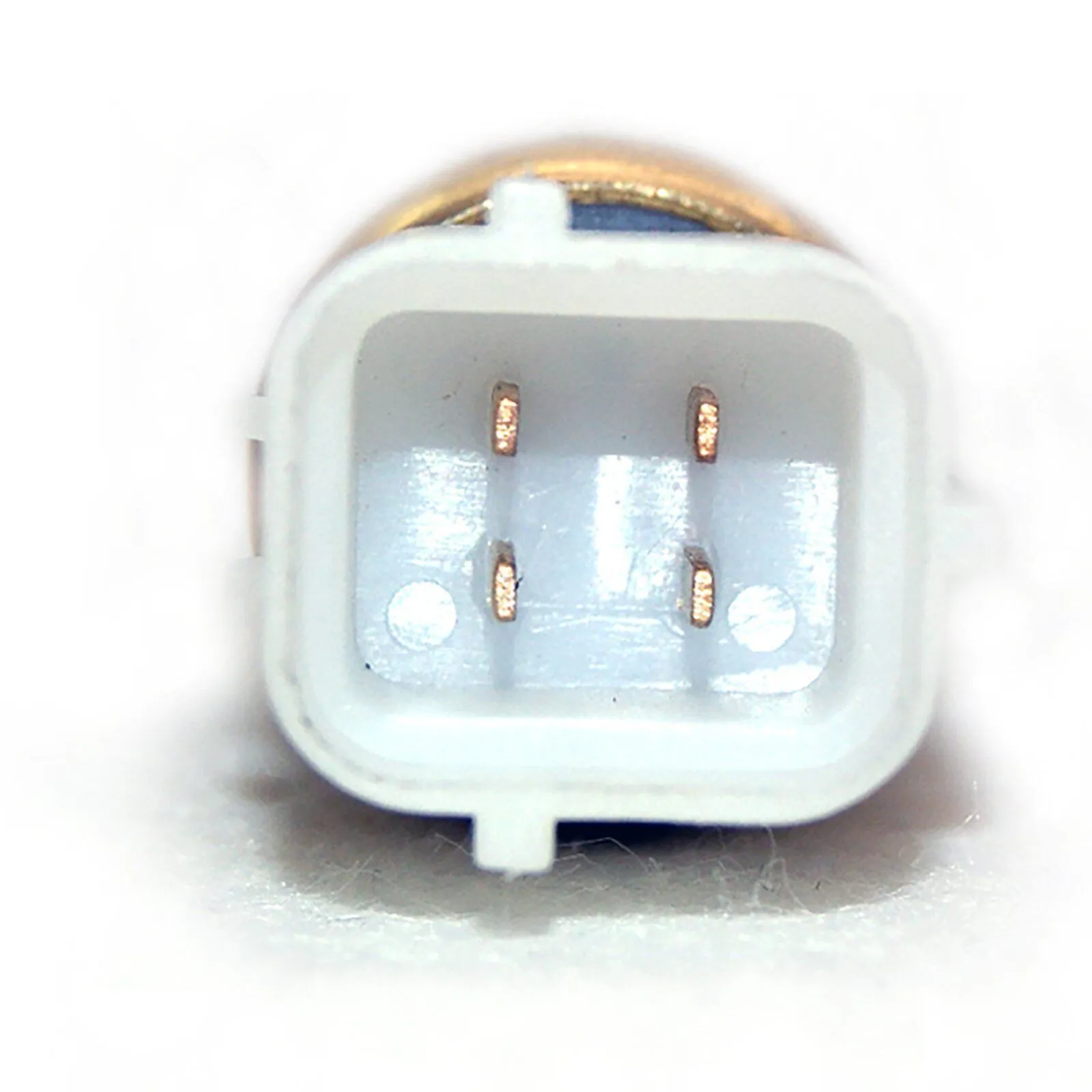

Number of Poles	4 -pin connector
Connector Shape	Rectangular
Outer diameter	20 mm
Fitted Ø	16.8 mm
Specification	2x NTC

Features?

High Quality
OEM Fit and Design
Easy install
Simple operation
AU Seller-Fast and Free Shipping

Package Includes:

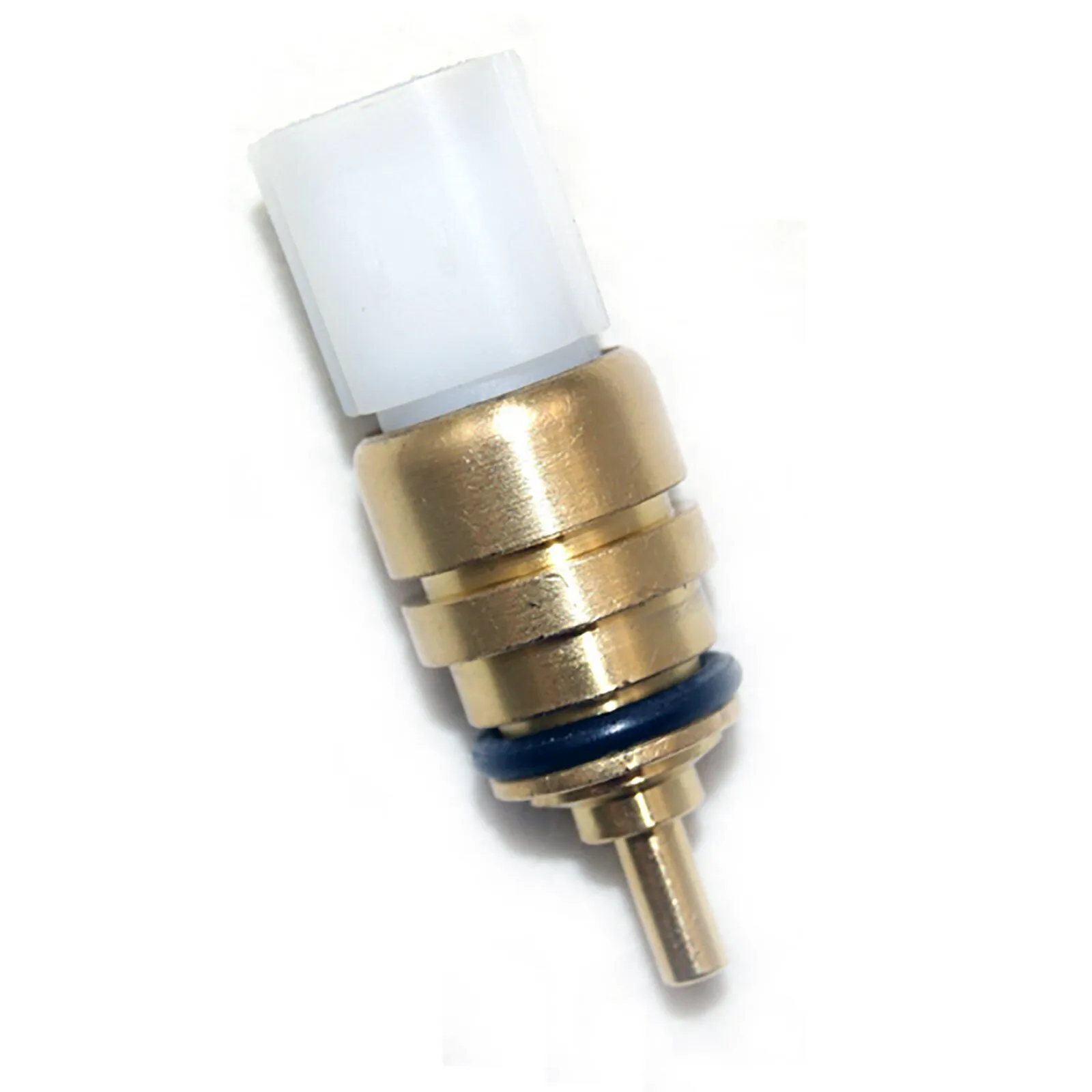

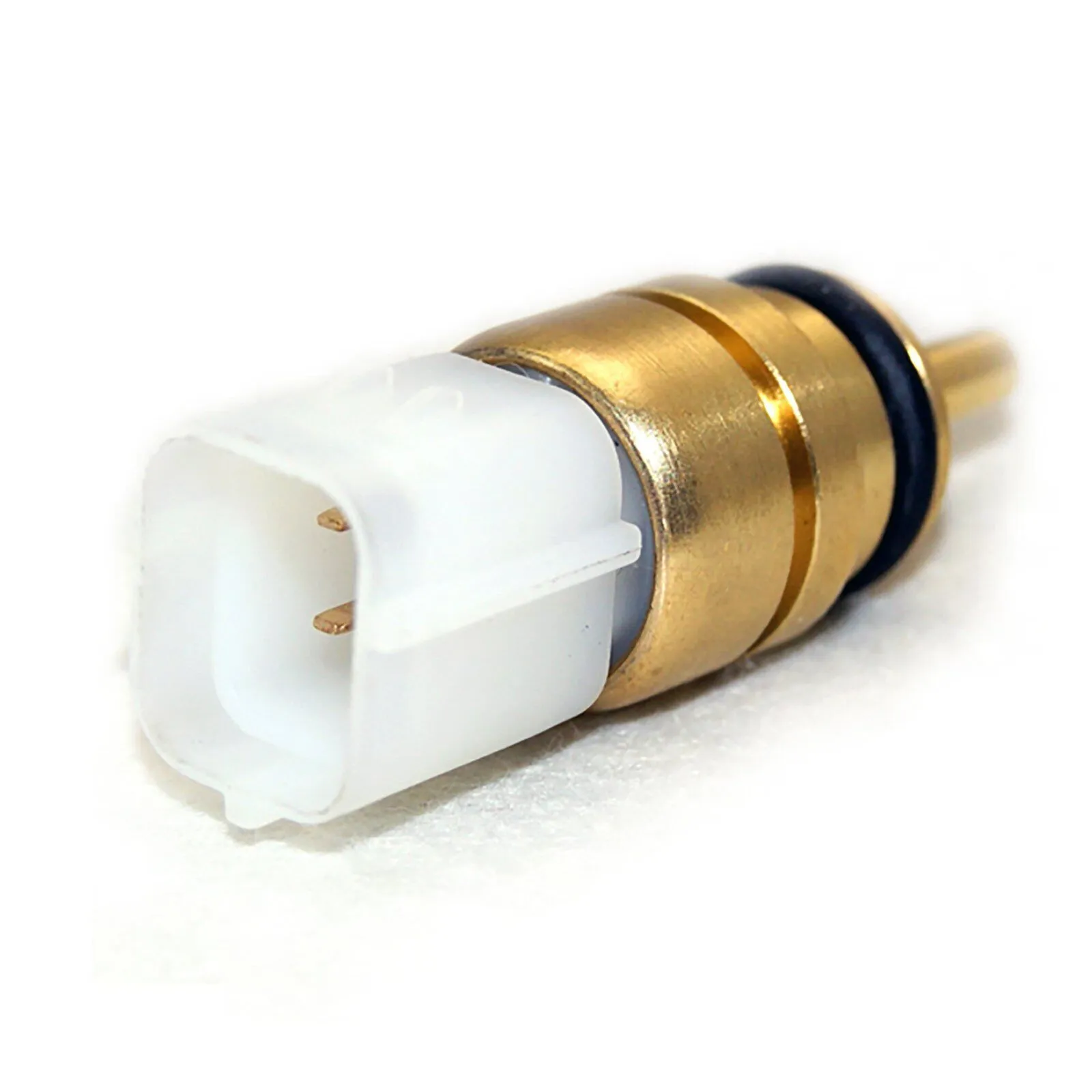

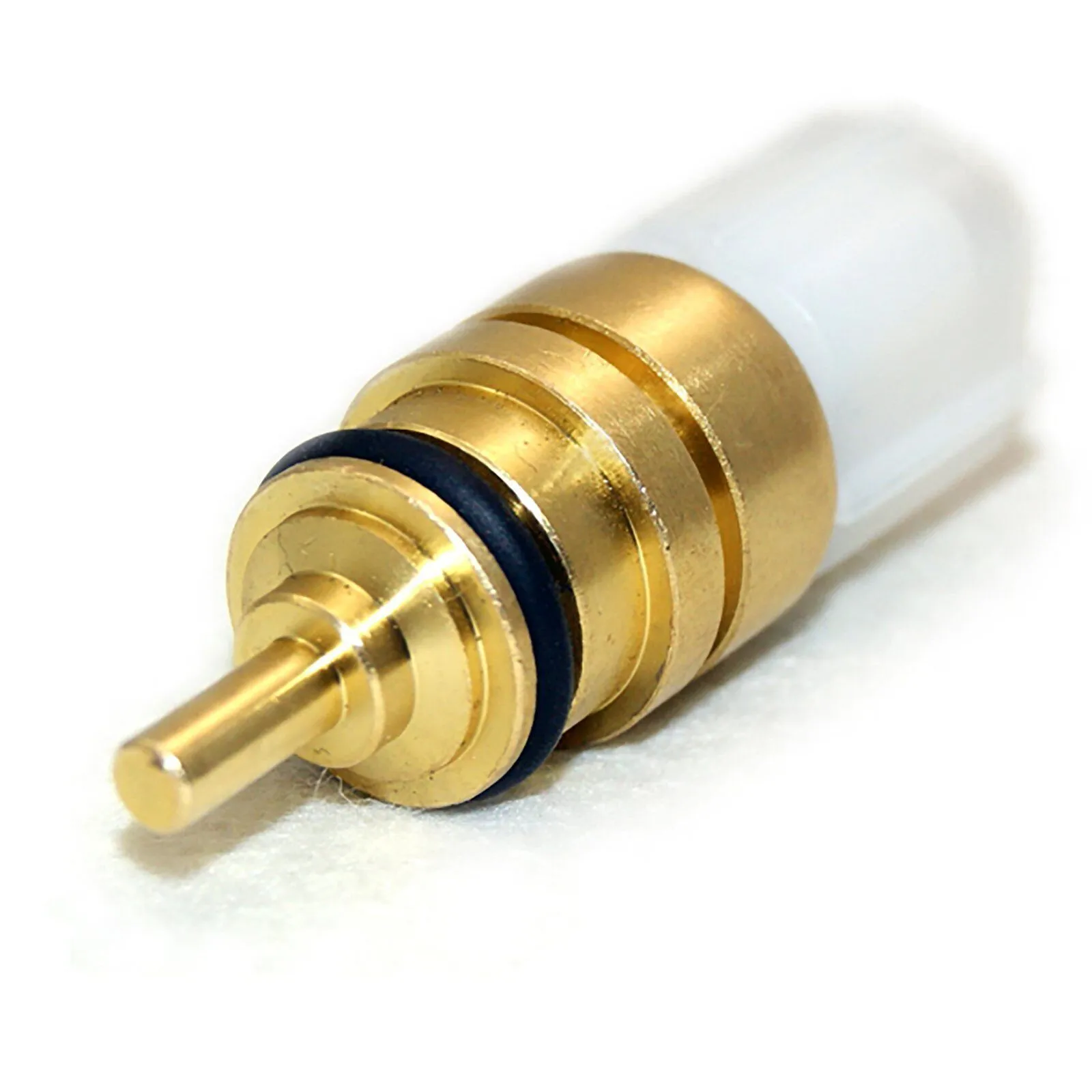

1* Temperature Sensor (4 PIN PLUG). WHITE COLOR AS OEM. The engine coolant temperature sensor (CTS) is used to measure the temperature of the engine coolant of an engine. The readings from this sensor are then fed back to the engine control unit (ECU), which uses this data to adjust the fuel injection and ignition timing. Common signs of a bad or failing coolant temperature sensor include poor fuel economy, black smoke coming from the engine, engine overheating, and the Check Engine Light turning on.

COMPATIBLE VEHICLES

VEHICLE MODEL	ENGINE	LITRE	CYL	YEAR
HYUNDAI I45 YF	G4KD	2.0L	4cyl	[01/11 – 12/12]
HYUNDAI I45 YF	G4KJ	2.4L	4cyl	[01/10 – 12/12]
HYUNDAI I45 YF	G4KJ	2.4L	4cyl	[01/10 – 12/11]
HYUNDAI IX35 LM	G4KD	2.0L	4cyl	[01/10 – 12/13]
HYUNDAI IX35 LM	G4KE	2.4L	4cyl	[01/10 – 12/13]
HYUNDAI SANTA FE CM	G6DC	3.5L	V6	[01/11 – 12/12]
HYUNDAI SANTA FE DM	G4KJ	2.4L	4cyl	[01/12 – 12/18]
HYUNDAI SANTA FE DM	G4KJ	2.4L	4cyl	[01/12 – 12/17]
HYUNDAI SANTA FE DM	G6DF	3.3L	V6	[01/16 – 12/18]
HYUNDAI SONATA LF	G4KH	2.0L	4cyl	[01/14 – 12/17]
HYUNDAI SONATA LF	G4KH	2.0L	4cyl	[01/17 – 12/19]
HYUNDAI SONATA LF	G4KJ	2.4L	4cyl	[01/14 – 12/19]
HYUNDAI SONATA NF	G4KC	2.4L	4cyl	[01/05 – 12/08]
HYUNDAI SONATA NF	G4KE	2.4L	4cyl	[01/08 – 12/10]
KIA CARNIVAL YP	G6DH	3.3L	V6	[01/14 – 12/18]
KIA CARNIVAL YP	G6DH	3.3L	V6	[01/18 – 12/20]
KIA CERATO KOUP TD	G4KD	2.0L	4cyl	[01/09 – 12/10]
KIA CERATO KOUP TD	G4KD	2.0L	4cyl	[01/10 – 12/13]
KIA CERATO TD	G4KD	2.0L	4cyl	[01/09 – 12/10]
KIA CERATO TD	G4KD	2.0L	4cyl	[01/10 – 12/13]
KIA GRAND CARNIVAL VQ	G6DC	3.5L	V6	[01/10 – 12/14]
KIA OPTIMA JF	G4KJ	2.4L	4cyl	[01/15 – 12/19]
KIA OPTIMA TF	G4KJ	2.4L	4cyl	[01/10 – 12/15]
KIA SORENTO UM	G6DC	3.5L	V6	[01/17 – 12/20]
KIA SORENTO XM	G4KE	2.4L	4cyl	[01/09 – 12/12]
KIA SORENTO XM	G6DC	3.5L	V6	[01/11 – 12/14]
KIA SPORTAGE SL	G4KD	2.0L	4cyl	[01/10 – 12/13]
KIA SPORTAGE SL	G4KE	2.4L	4cyl	[01/10 – 12/13]
KIA SPORTAGE SL II	G4KD	2.0L	4cyl	[01/13 – 12/14]

ABOUT YOUR VEHICLE’S ENGINE COOLANT TEMPERATURE SENSOR

What does a Coolant Temperature Sensor do?
The Coolant Temperature sensor changes resistance with the temperature. The Coolant Temperature sensor is critical to many PCM functions such as fuel injection, ignition timing, variable valve timing, and transmission shifting.

Where are these sensors located?

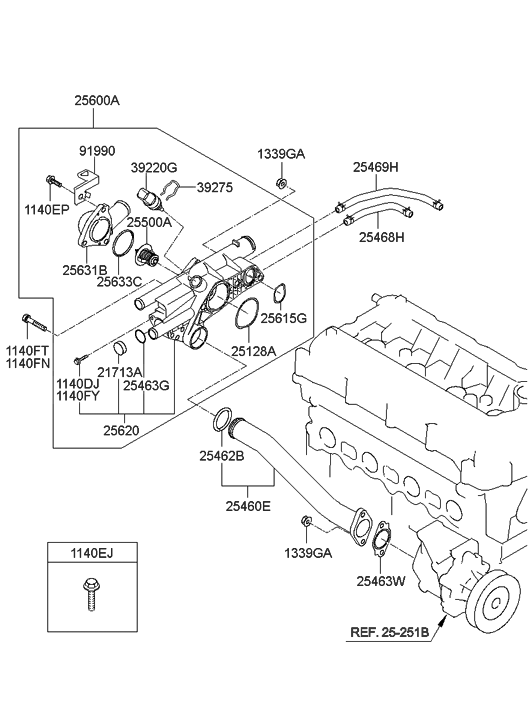

The Coolant Temperature sensor is located in a coolant passage in the engine usually near the thermostat.

Will a malfunctioning Coolant Temp Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL, and cause the engine to run rich or lean. The transmission may shift incorrectly or not lock up the torque converter.

What are the common causes of failure?
Typically these sensors fail due to corrosion within the coolant system. They may also leak coolant through the wiring connector.

How to determine if these sensors are malfunctioning?
A DTC will be set if an abnormal reading occurs, P0116 for sensor performance, P0117 low input, or P0118 for high input. The coolant temperature sensor temperature reading should closely match the air charge/manifold temperature reading on a scan tool if the engine has not been run for over an hour. The sensor circuit can be checked for proper voltage using a voltmeter.

Why Buy from Us / What makes Our Coolant Temp Sensors the best?
As an OEM manufacturer, Standard/ Our Supplier has complete control of the manufacturing process from componentry to finished product
Temperature sensor design specifies tight tolerance thermistor response values to assure the accuracy of the temperature measurement and proper part operation
All Coolant Temperature sensors are 100% factory tested to ensure trouble-free performance.

SKU	CCS98-3
Barcode #	5012225262076
Brand:	Aftermarket OEM Replacement
Part Number:	3922038010
Reference OEM Number:	39220-38010
Other OEM Numbers:	39220-02520, 39220-38010, 39220-3C010, 3922038010
Related Part Numbers:	CS901, TX191, TCS139, CCS98
Unit Of Measure	ea
