BRAND NEW *OEM QUALITY* MAP SENSOR (MANIFOLD ABSOLUTE PRESSURE SENSOR) / TURBO BOOST PRESSURE SENSOR TO FORD TRANSIT VM VN VO 2.2L Duratorq CVRC CVR5 2011-ON

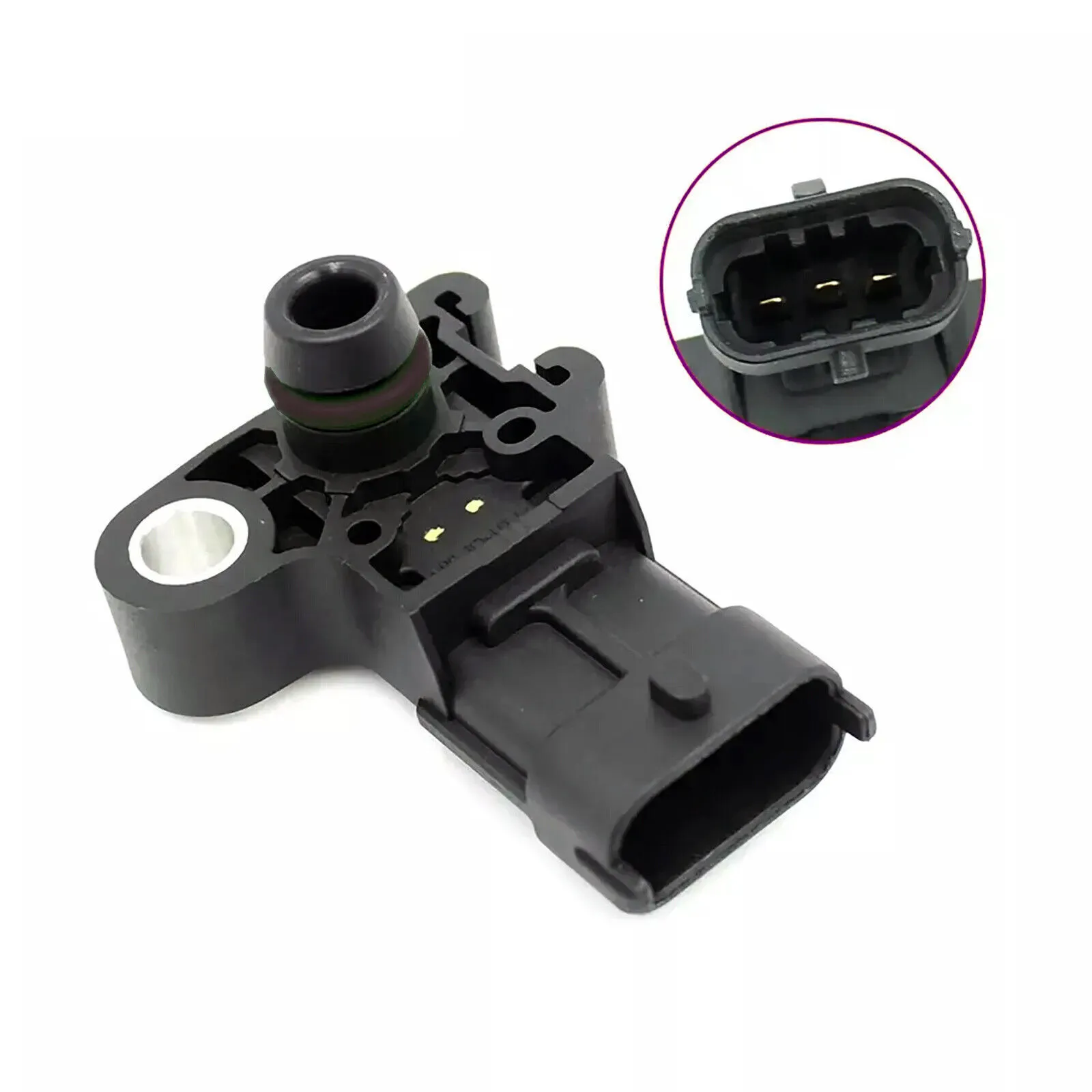

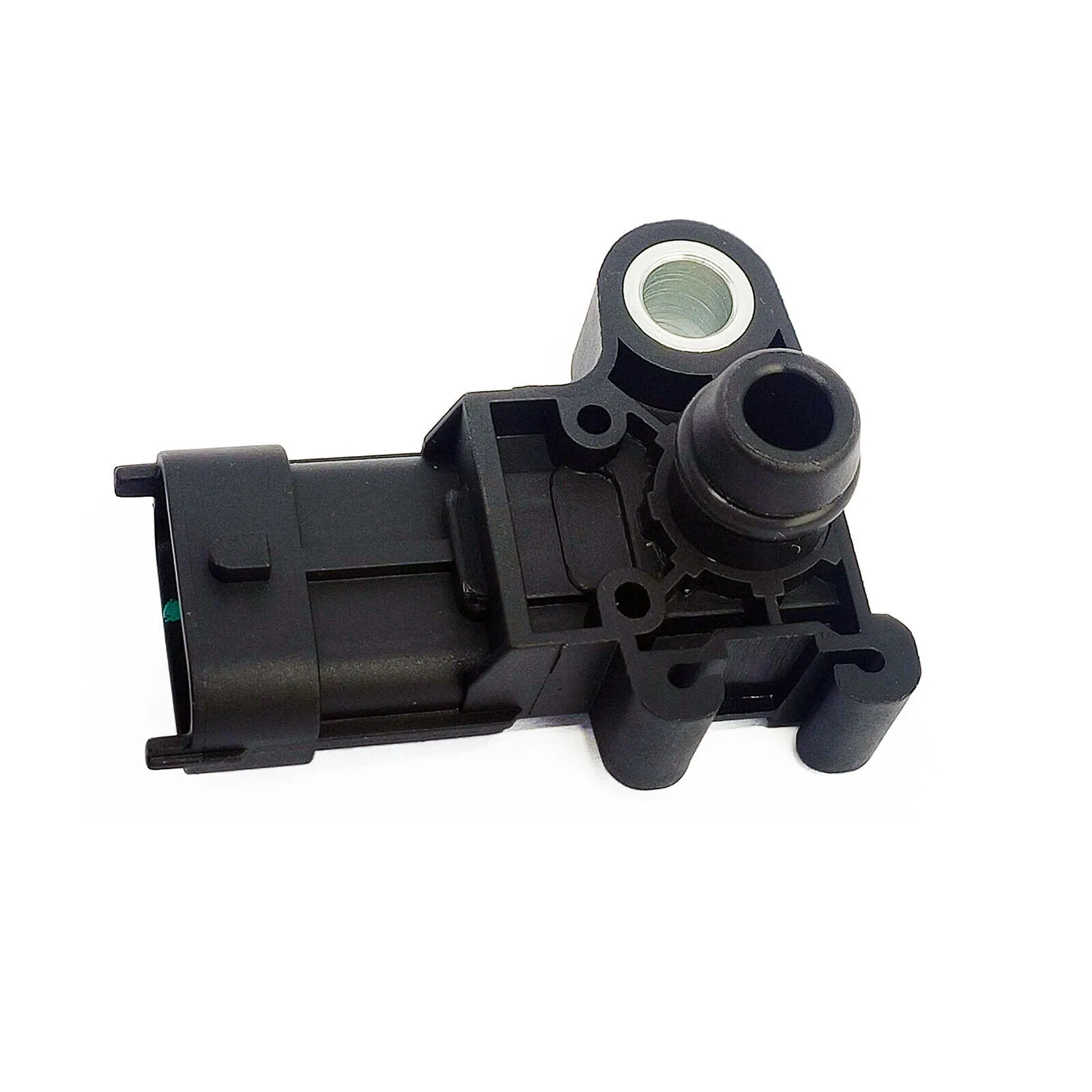

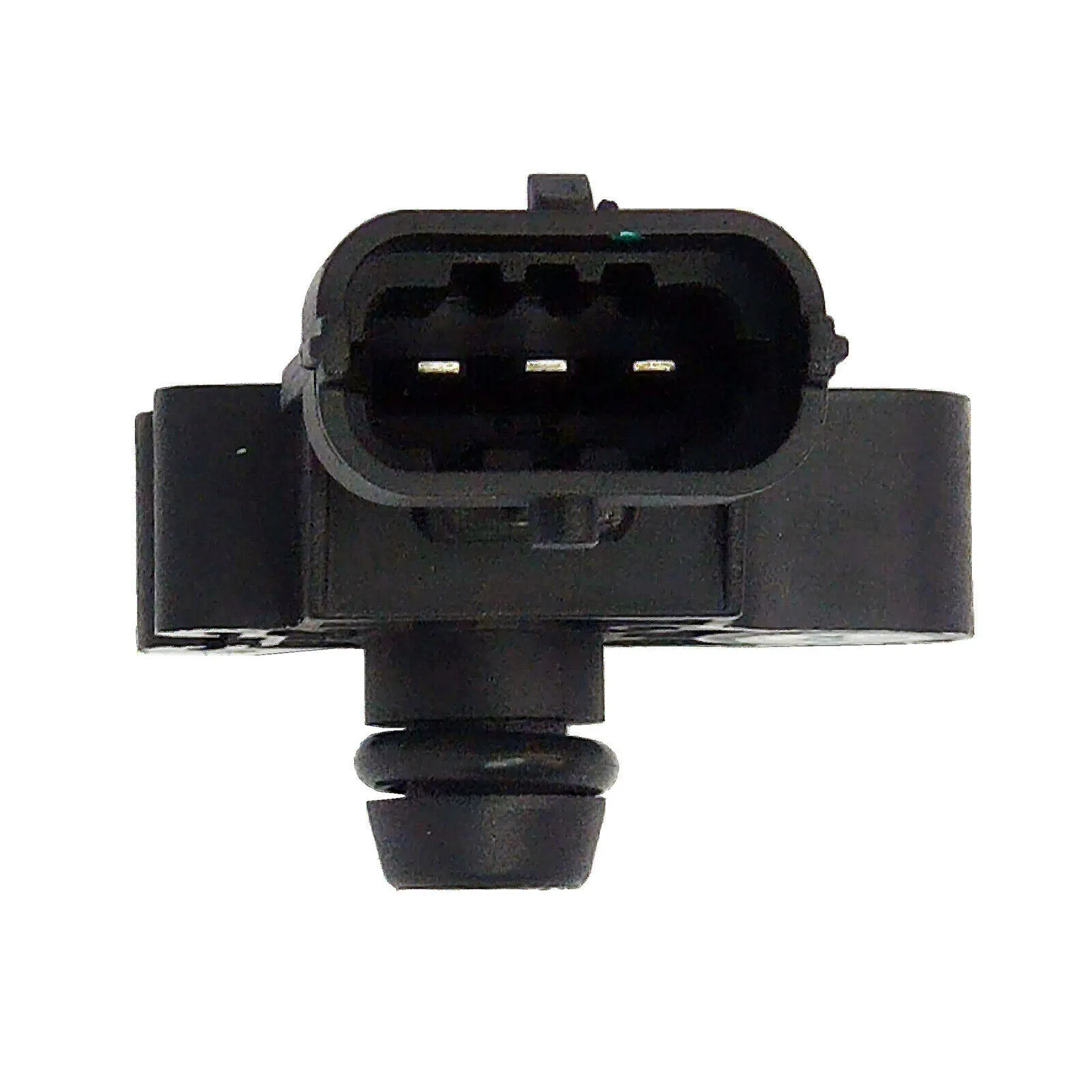

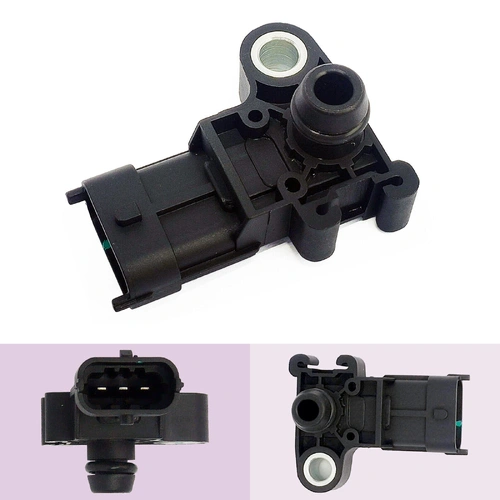

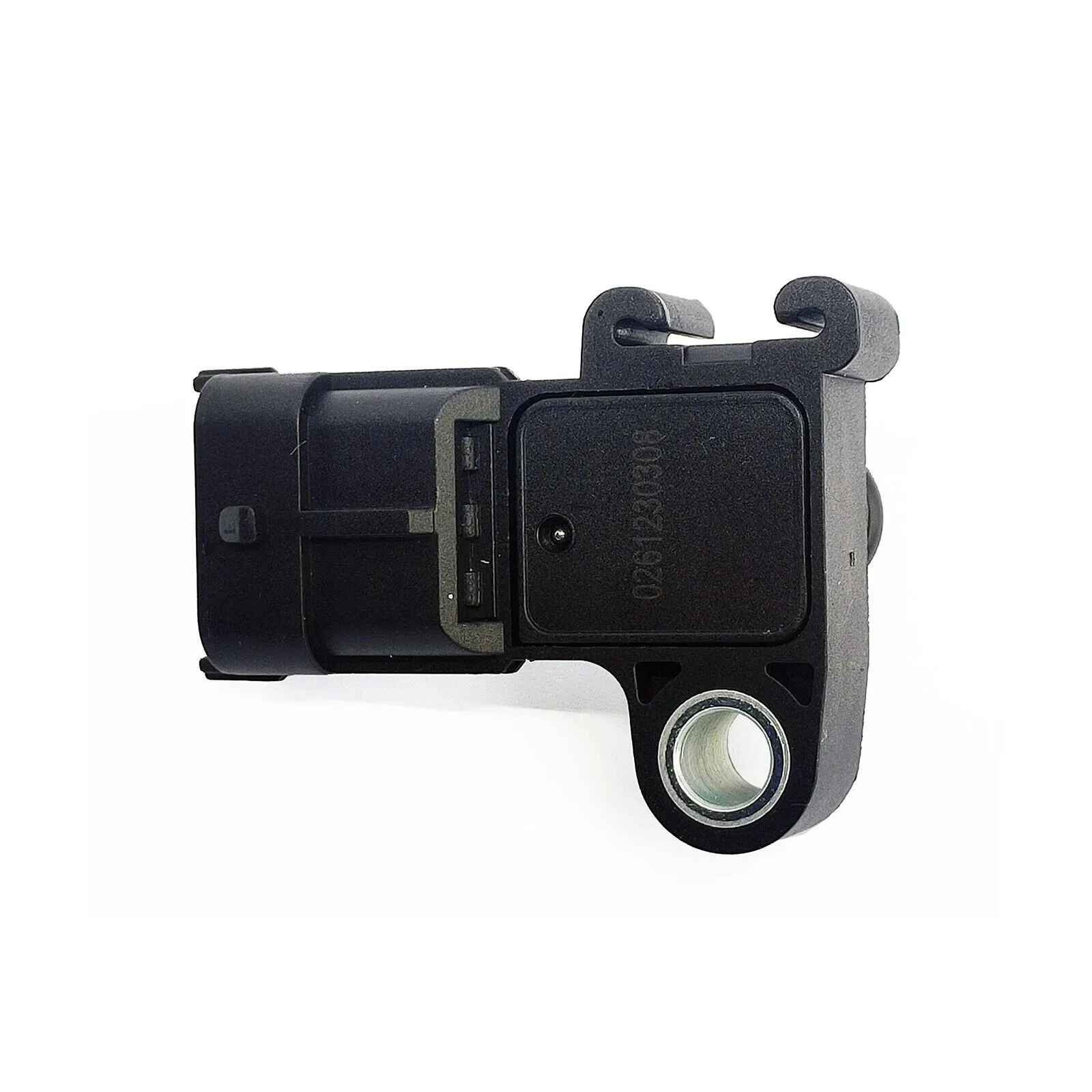

PLEASE COMPARE YOUR ORIGINAL SENSOR WITH THE IMAGES WE PROVIDED IN THE LISTING AND CHECK THE DETAILED VEHICLE LIST IN THE SUITABILITY SECTION.

TO SUIT:

[01/13 – 12/16] FORD TRANSIT CUSTOM VN 2.2L 4cyl Duratorq CYF4 CYFF 92kW
[01/11 – 12/13] FORD TRANSIT VM 2.2L 4cyl Duratorq CVR 114kW
[2014-ON] FORD TRANSIT VO 2.2L 4cyl Duratorq CVR5 UYR6 114kW

OEM# U20218211, 1682141

• for OE No: U202-18-211
• Number of pins: 3 -pin connector
• Connector Shape: oval
• Number of mounting bores: 1
• Pressure: from 10 kPa, until 307 kPa

Features:

• High Quality
• OEM Fit and Design
• Easy install
• Simple operation
• AU Seller-Fast and Free Shipping

Package Includes:

1* MAP SENSOR (3-PIN OVAL PLUG).3-BAR Pressure TURBO BOOST PRESSURE SENSOR

Manifold Absolute Pressure Sensor or MAP sensor provides instantaneous manifold pressure information to the engine’s electronic control module (ECM). This data is used to calculate air density and determine the engine’s air mass flow rate, which in turn determines the required fuel metering for optimum combustion.

COMPATIBLE VEHICLES

Ecosport BK 2013-On 1.0L Ecoboost (From 15/04/2013 – 11/09/2017)
Endura CA 2018-On 2.0L Ecoboost (From 19/01/2015-On)
Everest UA TEC 2015-On 2.2L Diesel (From 29/06/2015-On)
Falcon FG MKII 2011-2014 2.0L Ecoboost (From 10/10/2011-On)
Falcon FG X & XR Sprint 2014-On 2.0L Ecoboost (From 14/10/2014-On)
Fiesta ST WZ 2013-On 1.0L Ecoboost (From 05/11/2012-On)
Fiesta WZ MCA 2013-July 2014 1.0L Ecoboost (From 21/10/2013-On)
Fiesta WZ MCA August 2014-On 1.0L Ecoboost (From 11/08/2014-On)
Focus LW 2011-/Focus ST LW 2012-On 1.0L/1.6L/2.0L Ecoboost (From 03/01/2011 – 21/07/2015)
Focus ST & RS LZ 2015-On 1.0L/2.0L Ecoboost (From 06/10/2014-On)
Kuga TF-TFII & Escape ZG 2013-On 1.6L/2.0L Ecoboost (From 05/11/2012-On)
Mondeo MA/MB/MC 2007-2014 2.0L Ecoboost (From 29/09/2014-On)
Mondeo MD 2015-On 2.0L Ecoboost (From 29/09/2014-On)
Mustang CZG 2015-On 2.3L Twin Independent Variable Camshaft Timing (From 18/08/2014-On)
Ranger PX 2011- (XL-PLUS September 2015-On) 2.2L/3.2L Diesel (From 17/05/2012-On)
Transit Cargo VO 2014-On (Including Bus) 2.2L Diesel (From 27/01/2014-On)
Transit Custom VN 2014-On 2.2L Diesel (From 03/09/2012-On)
Transit VM 2006-On

ABOUT YOUR VEHICLES’ MAP Sensor

What does a MAP Sensor do?
The MAP sensor converts engine vacuum/manifold pressure to an electrical signal so the computer knows how much load the engine is under. This data is the basis for fuel delivery and timing control.

Where is the MAP sensor located?
The MAP sensor is typically located in the air cleaner, fender wall, firewall, intake manifold, or under the dash.

Will a malfunctioning MAP Sensor illuminate the check engine light or affect vehicle operation?
Yes, a failing sensor can illuminate the MIL and may cause the engine to have a rich or lean fuel mixture condition.

What are the common causes of failure?
Typically these sensors fail due to the constant contact of the movable wiper arm over the sensor element and the exposure to the high underhood heat.

How to determine if the MAP Sensor is malfunctioning?
The Diagnostic Monitor tests for voltages outside of the normal range. The PCM also compares actual MAP output to calculated values to determine sensor performance deterioration. The calculated values are based on TP and various engine load factors.

What makes OUR MAP Sensors the best?
As a basic manufacturer, Standard has complete control of the manufacturing process from componentry to finished product to ensure precise operation
Our manufacturing process includes extensive use of robotics for precision assembly
100% product in-line and end-of-line inspection from raw material to packaging of the finished product
